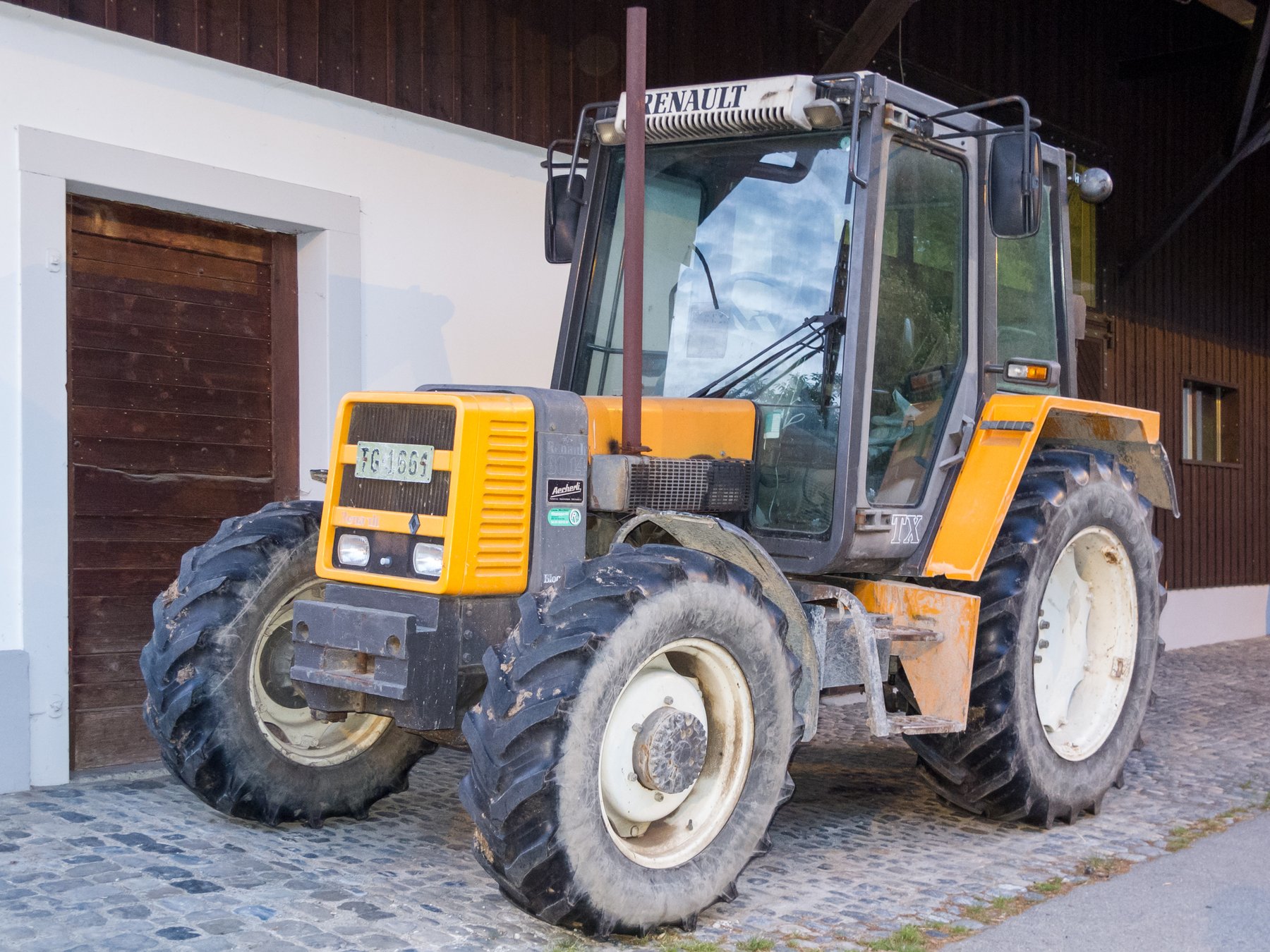

Renault 80 S-Vigneron
Built: 4/1976–4/1984 · Series: Vigneron-Baureihe
More machines from model year 1976
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Renault Vigneron: narrow specialists for viticulture, up to 65 hp, two-, three- and four-cylinder air-cooled diesels, narrow build for vine rows
While the 50 series offered vineyard variants only as an add-on, the standalone Vigneron series bundles purpose-built narrow-track tractors that Renault Agriculture produced from 1976 into the 1980s specifically for viticulture — "vigneron" is French for winegrower.
Read on 4 more paragraphs
The register lists 6 live models, from the 460 S-Vigneron to the 90 S, built between 1976 and 1985. Output ranges from 25.8 to 47.8 kW, or up to 65 hp, weight from 1,485 to 1,845 kg, displacement from 1,884 to 3,770 cm3, across two-, three- and four-cylinder engines.
Defining features of this series are its narrow width and low build height, allowing it to manoeuvre between tight vine rows, combined with comparatively low weight against standard tractors of the same power class.
The Vigneron series thus added a niche segment to Renault's line-up that most competitors offered only as special equipment.
When buying used narrow Vigneron models, the availability of matching narrow tyres, the condition of the reduced mudguards after work in tight vine rows, and – on the air-cooled engines – the cooling fins and fan all matter; clutch, gearbox and hydraulic tightness should be checked as on any older Renault model. Parts for the shared engine base are usually available, though viticulture-specific fittings are scarcer. PTO and three-point hitch correspond in this power class to ISO 730 Category I, at 540 rpm.
Sources: SpecCodex register, model data: Renault Vigneron-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 56 hp (41.2 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 171 Nmcorrect |
| Speed at max. torque | 1,373 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,827 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17.7correct |
| Injection pressure | 180 barcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,316 mmcorrect |
|---|---|
| Width | 1,135 mmcorrect |
| Height | 1,325 mmcorrect |
| Wheelbase | 1,876 mmcorrect |
| Ground clearance | 350 mmcorrect |
| Unladen weight | 1,595 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6V/1R or 10V/2Rcorrect |
| Front tyres | 5.00-15 ASFcorrect |
| Rear tyres | 9.5-28 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 2,649correct |
Where this model stands
Power-to-weight ratio: 25.8 kW/t (41 kW / 1.6 t)
Power class: Universal (40–100 hp)
Stronger than 39% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Renault 80 S-Vigneron have?
The Renault 80 S-Vigneron delivers 56 hp.
How much does the Renault 80 S-Vigneron weigh?
The unladen weight is 1,595 kg.
What engine does the Renault 80 S-Vigneron have?
3 cylinders, 2,827 cm³ displacement, Diesel.
How fast does the Renault 80 S-Vigneron go?
Top speed is 25 km/h.
What are the dimensions of the Renault 80 S-Vigneron?
3,316 mm × 1,135 mm × 1,325 mm.
When was the Renault 80 S-Vigneron built?
Production years: 4/1976–4/1984.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 26 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
