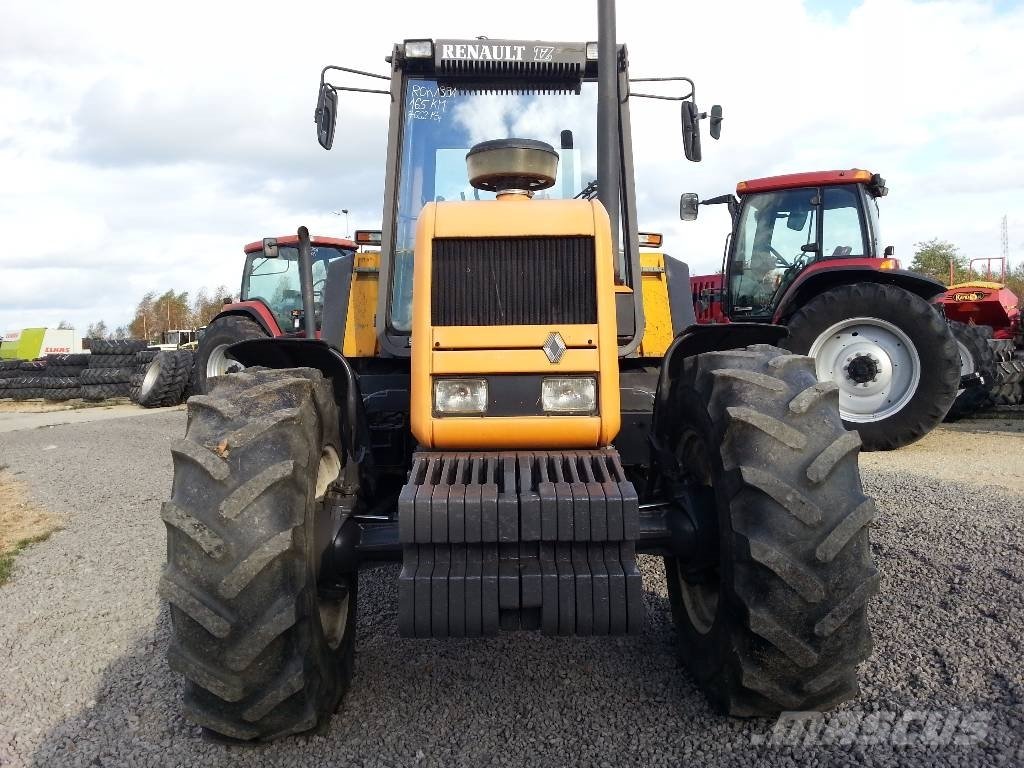

Renault 175-74 TZ
Built: 11/1989–4/1992 · Series: TZ-Baureihe
More machines from model year 1989
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Renault 175-74 TZ (1989-1992): water-cooled six-cylinder standard tractor with 121.4 kW output and 593 Nm of torque from the TZ series
The 175-74 TZ was built between November 1989 and April 1992 as part of the TZ series and was among the most powerful standard tractors in Renault's programme of these years, built for large arable farms with high pulling-power requirements.
Read on 3 more paragraphs
The water-cooled six-cylinder engine displaces 6,234 cm³ and delivers 121.4 kW at 2,350 rpm, equivalent to 165 horsepower, with 593 Nm of torque. With a weight of 6,220 kg, a wheelbase of 2,760 mm and a top speed of 30 km/h, the 175-74 TZ was built for heavy drawbar work with large tillage equipment.
Six-cylinder engines of over six litres displacement and more than 160 horsepower marked the top of the standard tractor range in the late 1980s, before articulated and crawler tractors complemented this power class for the largest farms. Torque close to 600 Nm keeps full pulling power available even as engine speed drops under load.
When buying a used 175-74 TZ, the turbocharger and intercooler should be checked for loss of power, since these components are heavily stressed under full load on such a powerful six-cylinder engine. The rear axle and the large tyres also deserve a check for wear, as the tractor's high weight places lasting strain on the drivetrain components. The braking system should also be tested under full load, since such a heavy tractor must be able to stop with particular certainty.
Sources: SpecCodex-Register: Kennwerte des Modells 175-74 TZ
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 165 hp (121.4 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 593 Nmcorrect |
| Speed at max. torque | 1,430 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,234 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 16correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,863 mmcorrect |
|---|---|
| Width | 2,228 mmcorrect |
| Height | 3,120 mmcorrect |
| Wheelbase | 2,760 mmcorrect |
| Ground clearance | 400 mmcorrect |
| Unladen weight | 6,220 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24 V/8 Rcorrect |
| Forward gears | 24correct |
| Reverse gears | 8correct |
| Front tyres | 16.9 R 28 AScorrect |
| Rear tyres | 20.8 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 225 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 169correct |
Other data
| Linkage category | Cat IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 19.5 kW/t (121 kW / 6.2 t)
Power class: Large (100–180 hp)
Stronger than 87% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Renault 175-74 TZ have?
The Renault 175-74 TZ delivers 165 hp.
How much does the Renault 175-74 TZ weigh?
The unladen weight is 6,220 kg.
What engine does the Renault 175-74 TZ have?
6 cylinders, 6,234 cm³ displacement, Diesel.
How fast does the Renault 175-74 TZ go?
Top speed is 30 km/h.
What are the dimensions of the Renault 175-74 TZ?
4,863 mm × 2,228 mm × 3,120 mm.
When was the Renault 175-74 TZ built?
Production years: 11/1989–4/1992.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
