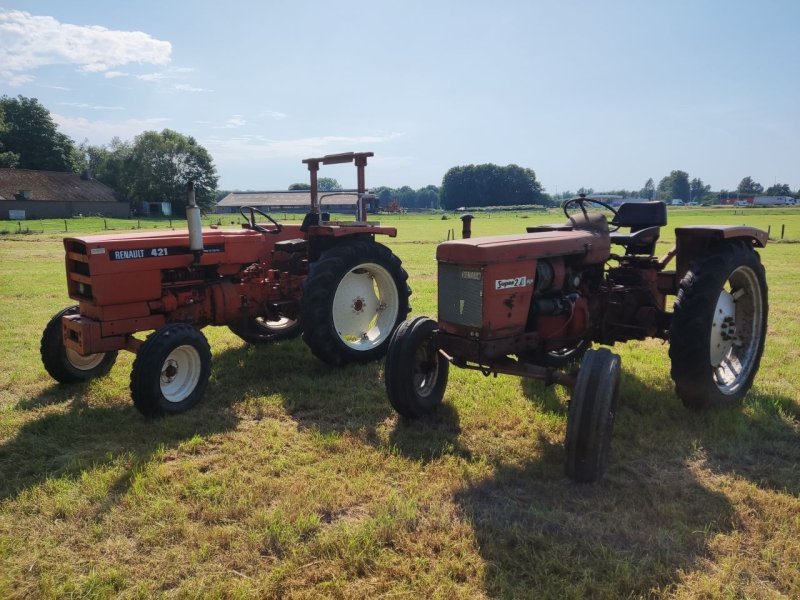

Renault Super 2-D
Built: 2/1966–1/1970 · Series: Super-Baureihe
More machines from model year 1966
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Renault Super: the tractors of the early 1960s, 24 to 46 hp, two-, three- and four-cylinder diesels, D/(A) suffixes for diesel and four-wheel-drive versions
Renault Agriculture grew out of the carmaker's armoured vehicle division in 1918 and built its first tractors from 1919. The Super series of the early-to-mid 1960s belongs to the classic generation that preceded the major model renewal brought by the D series and later TX range.
Read on 4 more paragraphs
The register lists 11 live models, from the Super 2-D to the Super 7-D (A), built between 1962 and 1970. Output ranges from 17.8 to 42 kW, or 24 to 46 hp, weight from 1,460 to 1,800 kg, displacement from 1,810 to 2,715 cm3, across two-, three- and four-cylinder engines.
The type numbers (2 to 7) follow a simple power hierarchy; the suffixes "D" and "(A)" denote diesel power and four-wheel-drive versions respectively, already available as an option from Renault at the time.
As a compact all-rounder for smaller and mid-sized arable and grassland farms, the Super series marks the last purely French design generation before Renault Agriculture's stronger internationalisation in the 1970s.
When buying a used example of this early series, clutch and mechanical gearbox condition, and on the four-wheel-drive (A) versions the front axle and its joints as well, plus rust on chassis and mudguards after decades of use, all matter; on the air-cooled two-cylinder models, the condition of the cooling fins and fan counts too. Parts for this early series now run mainly through independent farm-machinery workshops and collector exchanges.
Sources: SpecCodex register, model data: Renault Super-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 26 hp (19.1 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 1,816 cm³correct |
| Bore | 85 mmcorrect |
| Stroke | 80 mmcorrect |
| Compression ratio | 21correct |
| Injection pressure | 117 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,030 mmcorrect |
|---|---|
| Width | 1,570 mmcorrect |
| Height | 1,540 mmcorrect |
| Wheelbase | 1,750 mmcorrect |
| Ground clearance | 340 mmcorrect |
| Unladen weight | 1,460 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6V/1R or 10V/2Rcorrect |
| Front tyres | 5.00-15 ASFcorrect |
| Rear tyres | 9-28 AScorrect |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 40 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 2,219correct |
Other data
| Linkage category | Cat Icorrect |
|---|
Where this model stands
Power-to-weight ratio: 13.1 kW/t (19 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 14% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Renault Super 2-D have?
The Renault Super 2-D delivers 26 hp.
How much does the Renault Super 2-D weigh?
The unladen weight is 1,460 kg.
What engine does the Renault Super 2-D have?
4 cylinders, 1,816 cm³ displacement, Diesel.
How fast does the Renault Super 2-D go?
Top speed is 25 km/h.
What are the dimensions of the Renault Super 2-D?
3,030 mm × 1,570 mm × 1,540 mm.
When was the Renault Super 2-D built?
Production years: 2/1966–1/1970.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
