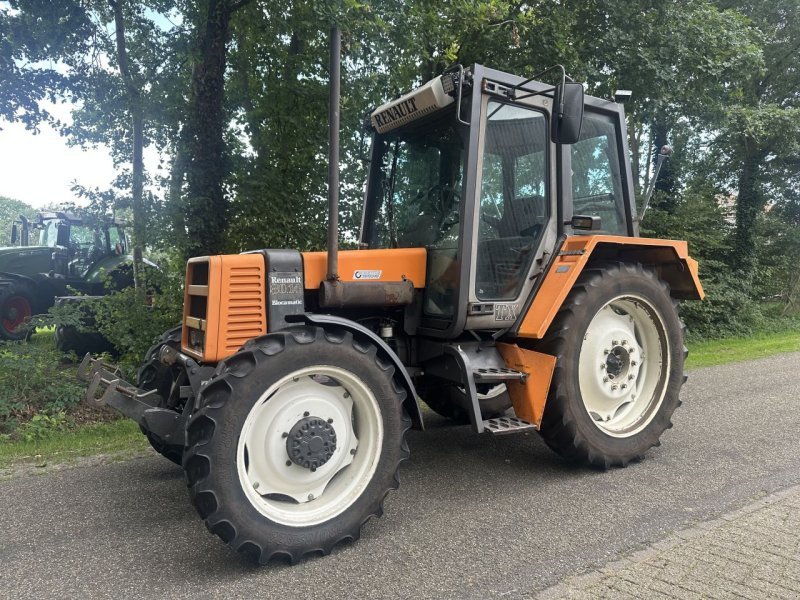

Renault 80-14 SP
Built: 9/1986–2/1989 · Series: SP-Baureihe
More machines from model year 1986
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Renault SP series – standard tractors from Renault Agriculture: 80-12 SP and 80-14 SP, 55.2 kW / 75 hp, four-cylinder of 4,070 cm³, unladen weight 2,870 to 3,360 kg
Renault Agriculture of Le Mans built the SP series as mid-power standard tractors for general field and grassland work. The series comprises the 80-12 SP and 80-14 SP models, which differ mainly in length and weight. The two models differed mainly in wheelbase and the resulting unladen weight, but shared the engine and drivetrain.
Read on 3 more paragraphs
The register lists here 2 versions with 55.2 kW, or 75 hp, from a four-cylinder engine of 4,070 cm³, an unladen weight of 2,870 to 3,360 kg, a length of 3,870 to 4,058 mm, a width of 1,929 mm, a height of 2,485 mm, torque of 271 Nm and a rated speed of 2,250 rpm.
Standard tractors of this kind covered most of the routine field work on French and Western European farms during the 1970s and 1980s, from tillage to transport. As simple, versatile working machines without elaborate extra equipment, they competed directly with other standard tractors of the same power class.
Buyers of used units should check the clutch, gearbox and hydraulics, as well as the brakes and rust on the bodywork and frame; spares run through the Claas dealer network, which took over support for the older Renault ranges. An inspection should also cover the alternator, starter motor and the seals on the engine and gearbox. Given their straightforward technology, these tractors are comparatively easy to keep running with basic workshop skills.
Sources: SpecCodex register, model data: Renault SP-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 75 hp (55.2 kW)correct |
| Rated speed | 2,250 rpmcorrect |
| Torque | 271 Nmcorrect |
| Speed at max. torque | 1,273 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,070 cm³correct |
| Bore | 101 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 16correct |
| Injection pressure | 187 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,058 mmcorrect |
|---|---|
| Width | 1,929 mmcorrect |
| Height | 2,485 mmcorrect |
| Wheelbase | 2,394 mmcorrect |
| Ground clearance | 377 mmcorrect |
| Unladen weight | 3,360 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12V/12R or 24V/24Rcorrect |
| Front tyres | 13.6 R 24 AScorrect |
| Rear tyres | 16.9 R 34 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 82 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 307correct |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 16.4 kW/t (55 kW / 3.4 t)
Power class: Universal (40–100 hp)
Stronger than 52% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Renault 80-14 SP have?
The Renault 80-14 SP delivers 75 hp.
How much does the Renault 80-14 SP weigh?
The unladen weight is 3,360 kg.
What engine does the Renault 80-14 SP have?
4 cylinders, 4,070 cm³ displacement, Diesel.
How fast does the Renault 80-14 SP go?
Top speed is 30 km/h.
What are the dimensions of the Renault 80-14 SP?
4,058 mm × 1,929 mm × 2,485 mm.
When was the Renault 80-14 SP built?
Production years: 9/1986–2/1989.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
