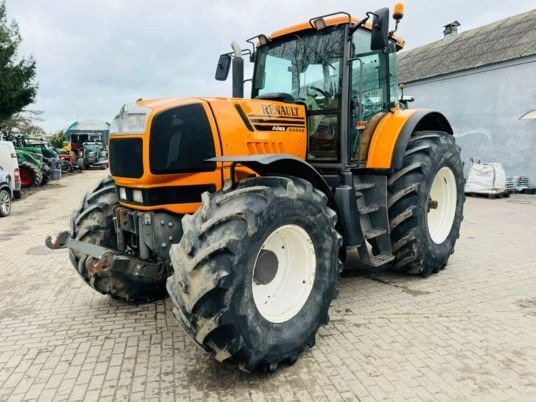

Renault Atles 935 RZ

Built: 2/2000–5/2002 · Series: ATLES-Baureihe

More machines from model year 2000

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Renault Atles 935 RZ is a model in the ATLES series. Production: 2/2000–5/2002. The engine delivers 250 hp (184 kW), has 6 cylinders, with a displacement of 7,146 cm³. Torque is 950 Nm. Rated speed is 2,200 rpm. The machine is 5,650 mm long, 2,550 mm wide and 3,210 mm high. The unladen weight is 9,520 kg. The wheelbase measures 3,035 mm. Ground clearance is 655 mm. Top speed is 40 km/h. The tank holds 455 litres. Transmission: 18V / 8R or 36V / 16R. The engine is water-cooled. Tyres: front 600/70 R28 AS, rear 650/85 R38 AS. The fuel is Diesel / Biodiesel. The bore measures 108 mm. The stroke is 130 mm. Construction: unit construction (no separate frame). The linkage is category III. The PTO runs at 540E/1000 rpm. Around 119 units were built. The ATLES-Baureihe series covers 3 models. Rated output within it ranges from 226 to 250 hp; the Atles 935 RZ sits at the top of that range with 250 hp. Its immediate neighbours are the Atles 926 RZ below it with 226 hp. Unladen weight within it ranges from 9,520 to 9,720 kg; here the Atles 935 RZ sits at the bottom of that range with 9,520 kg. 3632 Renault models across 98 series are on record.

Renault Atles range – large tractors Atles 926 to 936 RZ from 2003 to 2007, 166 to 184 kW, six-cylinder engines of 7,146 cm³, biodiesel-capable

The Atles range was the last standalone large-tractor range developed under the Renault name, built between 2003 and 2007 already in the transition period to Claas, which had taken over Renault's tractor division in 2003; the models covered here, Atles 926, 935 and 936, all carry the RZ suffix. Unlike earlier Renault ranges, the Atles engines were factory-set up to run on biodiesel.

Read on 3 more paragraphs

The register lists here 3 versions with 166.3 to 184 kW, or 226 to 250 hp, from six-cylinder engines of 7,146 cm³, torque of around 950 Nm, unladen weights from 9,520 to 9,720 kg, lengths from 5,650 to 6,641 mm, a width of 2,550 mm, heights from 3,180 to 3,210 mm and a rated speed of 2,200 rpm.

With power up to 250 hp, the Atles range formed the top of the Renault line-up and competed with the large field tractors of Fendt, Case IH, Massey Ferguson and Claas itself; biodiesel capability was a distinguishing feature in this power class at launch.

On a used Atles, the condition of the clutch and powershift transmission, the tightness of the hydraulics and fuel system, rust on the chassis and cab mountings, and the condition of the electronics all count; parts run through the Claas network, which continued the range after the takeover. On the biodiesel-capable engines, the condition of the fuel filters and lines is also worth checking, as biodiesel places higher demands on the fuel system's seals.

Sources: SpecCodex register, model data: Renault Atles-Baureihe

Technical data

Engine

Fuel	Diesel / Biodieselcorrect
Power	250 hp (184 kW)correct
Rated speed	2,200 rpmcorrect
Torque	950 Nmcorrect
Cylinders	6correct
Displacement	7,146 cm³correct
Bore	108 mmcorrect
Stroke	130 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	5,650 mmcorrect
Width	2,550 mmcorrect
Height	3,210 mmcorrect
Wheelbase	3,035 mmcorrect
Ground clearance	655 mmcorrect
Unladen weight	9,520 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	18V / 8R or 36V / 16Rcorrect
Front tyres	600/70 R28 AScorrect
Rear tyres	650/85 R38 AScorrect
Top speed	40 km/hcorrect

Working data

Fuel tank capacity	455 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct
Units built	119correct

Other data

Linkage category	Cat IIIcorrect
PTO speed	540E/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 19.3 kW/t (184 kW / 9.5 t)

Power class: Heavy (> 180 hp)

Stronger than 95% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Renault Atles 935 RZ have?

The Renault Atles 935 RZ delivers 250 hp.

How much does the Renault Atles 935 RZ weigh?

The unladen weight is 9,520 kg.

What engine does the Renault Atles 935 RZ have?

6 cylinders, 7,146 cm³ displacement, Diesel / Biodiesel.

How fast does the Renault Atles 935 RZ go?

Top speed is 40 km/h.

What are the dimensions of the Renault Atles 935 RZ?

5,650 mm × 2,550 mm × 3,210 mm.

When was the Renault Atles 935 RZ built?

Production years: 2/2000–5/2002.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
