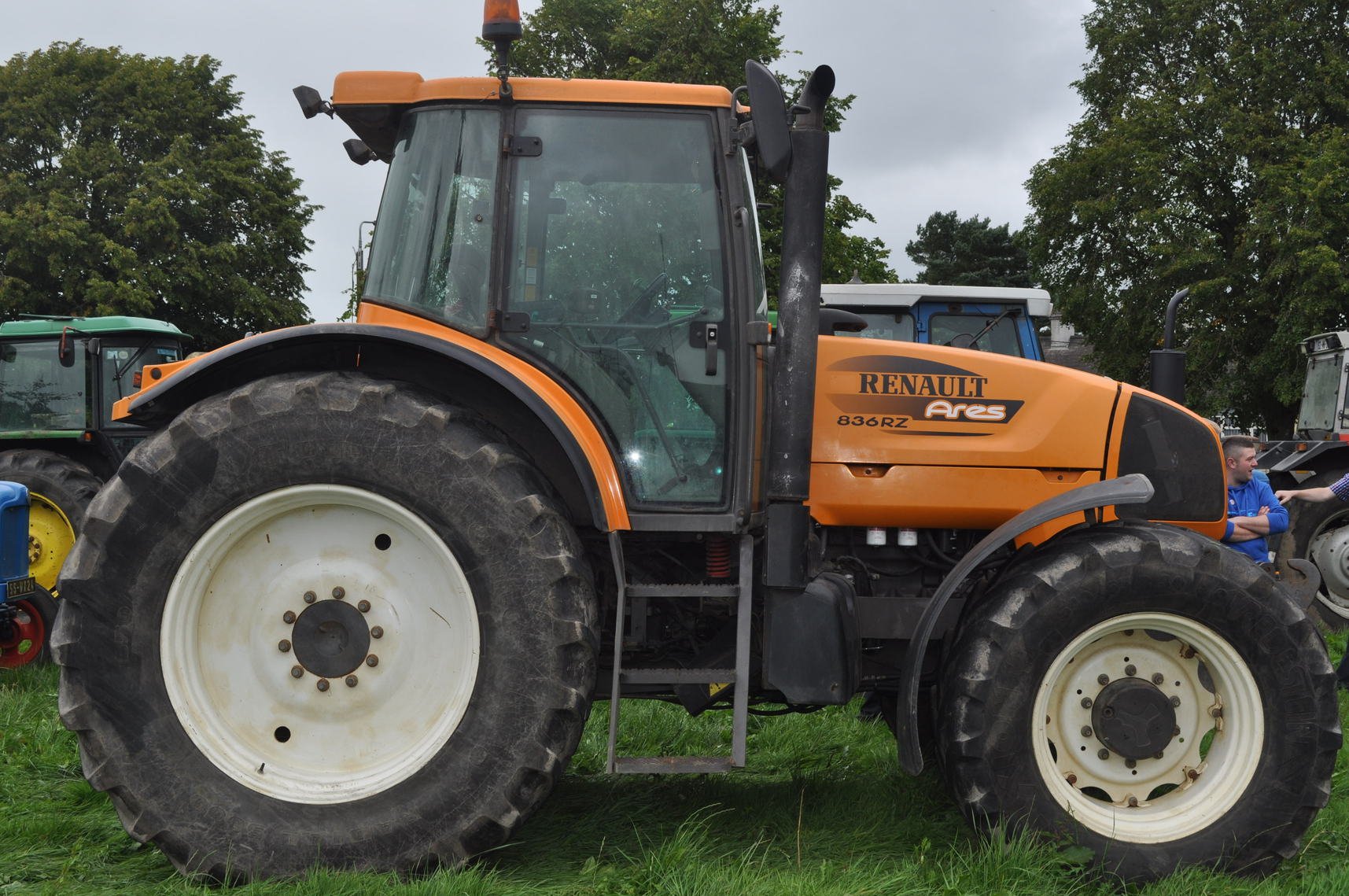

Renault Ares 836 RZ
Built: 7/2001–2/2005 · Series: ARES-800 Baureihe
More machines from model year 2001
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Renault Ares 800 range – large tractors Ares 816 to 836 RZ, 115 to 143 kW, six-cylinder engines of 6,788 cm³, 156 to 194 hp
The Ares 800 range formed the top end of Renault's Ares generation, complementing the smaller Ares 500 and Ares 600 ranges with large tractors powered by a six-cylinder engine; the models covered here, Ares 816, 826 and 836, all carry the RZ suffix. Like the rest of the Ares generation, the range was built at the Le Mans plant in France, before Renault Agriculture was taken over by Claas in 2003.
Read on 3 more paragraphs
The register lists here 3 versions with 114.8 to 142.8 kW, or 156 to 194 hp, from six-cylinder engines of 6,788 cm³, torque from 588 to 780 Nm, unladen weights from 7,300 to 8,150 kg, lengths from 4,540 to 4,880 mm, widths from 2,550 to 2,585 mm, a height of 3,035 mm and a rated speed of 2,200 rpm.
With power reaching almost 200 hp, the Ares 800 range ranked among the large field tractors of its time and competed with comparable ranges from Fendt, Case IH, Massey Ferguson and Deutz-Fahr; it targeted larger farms with a corresponding need for pulling power.
On a used Ares 800, the condition of the clutch and powershift transmission, the tightness of the hydraulics, rust on the chassis and cab mountings, and the condition of the electronics all count; parts now run through the Claas network, which took over Renault's tractor division in 2003. On the powershift transmission, smooth shifting between all stages without jerking or delay is a good indicator of its overall condition.
Sources: SpecCodex register, model data: Renault Ares-800-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 194 hp (142.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 780 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,788 cm³correct |
| Bore | 106.5 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 16.9correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,880 mmcorrect |
|---|---|
| Width | 2,585 mmcorrect |
| Height | 3,035 mmcorrect |
| Wheelbase | 2,876 mmcorrect |
| Ground clearance | 590 mmcorrect |
| Unladen weight | 8,150 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 32 V/32 Rcorrect |
| Forward gears | 32correct |
| Front tyres | 540/65 R 30 AScorrect |
| Rear tyres | 650/65 R 42 AScorrect |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 300 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 446correct |
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540E/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 17.5 kW/t (143 kW / 8.2 t)
Power class: Heavy (> 180 hp)
Stronger than 91% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Renault Ares 836 RZ have?
The Renault Ares 836 RZ delivers 194 hp.
How much does the Renault Ares 836 RZ weigh?
The unladen weight is 8,150 kg.
What engine does the Renault Ares 836 RZ have?
6 cylinders, 6,788 cm³ displacement, Diesel.
How fast does the Renault Ares 836 RZ go?
Top speed is 40 km/h.
What are the dimensions of the Renault Ares 836 RZ?
4,880 mm × 2,585 mm × 3,035 mm.
When was the Renault Ares 836 RZ built?
Production years: 7/2001–2/2005.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
