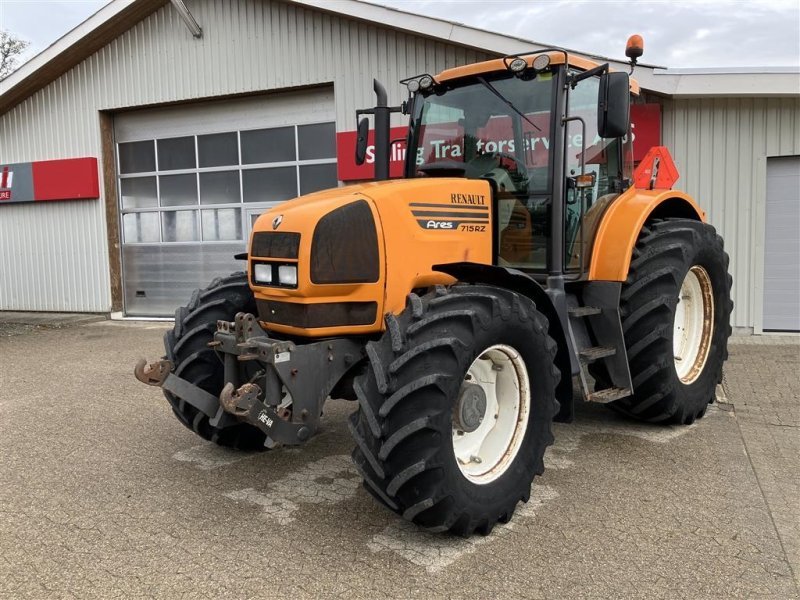

Renault Ares 715 RZ
Built: 7/2000–3/2002 · Series: ARES-700 Baureihe
More machines from model year 2000
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Renault Ares 715 RZ (2000-2002): water-cooled six-cylinder standard tractor with 114.8 kW output and 597 Nm of torque from the ARES-700 series
The Ares 715 RZ was built between July 2000 and March 2002 as part of the ARES-700 series and belonged to the more powerful standard tractors from Renault of this period, shortly before the tractor business was fully taken over by another group.
Read on 3 more paragraphs
The water-cooled six-cylinder engine displaces 6,788 cm³ and delivers 114.8 kW at 2,200 rpm, equivalent to 156 horsepower, with 597 Nm of torque. With a weight of 7,380 kg, a wheelbase of 2,880 mm and a top speed of 40 km/h, the Ares 715 RZ belonged to the heavy standard tractors built for large arable farms.
Six-cylinder engines of nearly seven litres displacement and over 150 horsepower mark the upper power class of standard tractors, needed to drive heavy tillage equipment and large trailers. Torque close to 600 Nm keeps enough pulling force available for heavy ploughing or cultivator work even at lower engine speeds.
When buying a used Ares 715 RZ, the cooling system and turbocharger should be checked for leaks and loss of power, since modern six-cylinder diesel engines of this power class are sensitive to neglected maintenance. The hydraulic pump and the connections for heavy implements also deserve a functional check under load, as should the front axle and steering knuckles, which carry substantial strain from the tractor's high weight during headland turns.
Sources: SpecCodex-Register: Kennwerte des Modells Ares 715 RZ
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 156 hp (114.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 597 Nmcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,788 cm³correct |
| Bore | 106.5 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,970 mmcorrect |
|---|---|
| Width | 2,400 mmcorrect |
| Height | 2,995 mmcorrect |
| Wheelbase | 2,880 mmcorrect |
| Ground clearance | 530 mmcorrect |
| Unladen weight | 7,380 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 32 V/32 Rcorrect |
| Forward gears | 32correct |
| Front tyres | 16.9 R 28 AScorrect |
| Rear tyres | 20.8 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 300 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 569correct |
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 15.6 kW/t (115 kW / 7.4 t)
Power class: Large (100–180 hp)
Stronger than 85% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Renault Ares 715 RZ have?
The Renault Ares 715 RZ delivers 156 hp.
How much does the Renault Ares 715 RZ weigh?
The unladen weight is 7,380 kg.
What engine does the Renault Ares 715 RZ have?
6 cylinders, 6,788 cm³ displacement, Diesel.
How fast does the Renault Ares 715 RZ go?
Top speed is 40 km/h.
What are the dimensions of the Renault Ares 715 RZ?
4,970 mm × 2,400 mm × 2,995 mm.
When was the Renault Ares 715 RZ built?
Production years: 7/2000–3/2002.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
