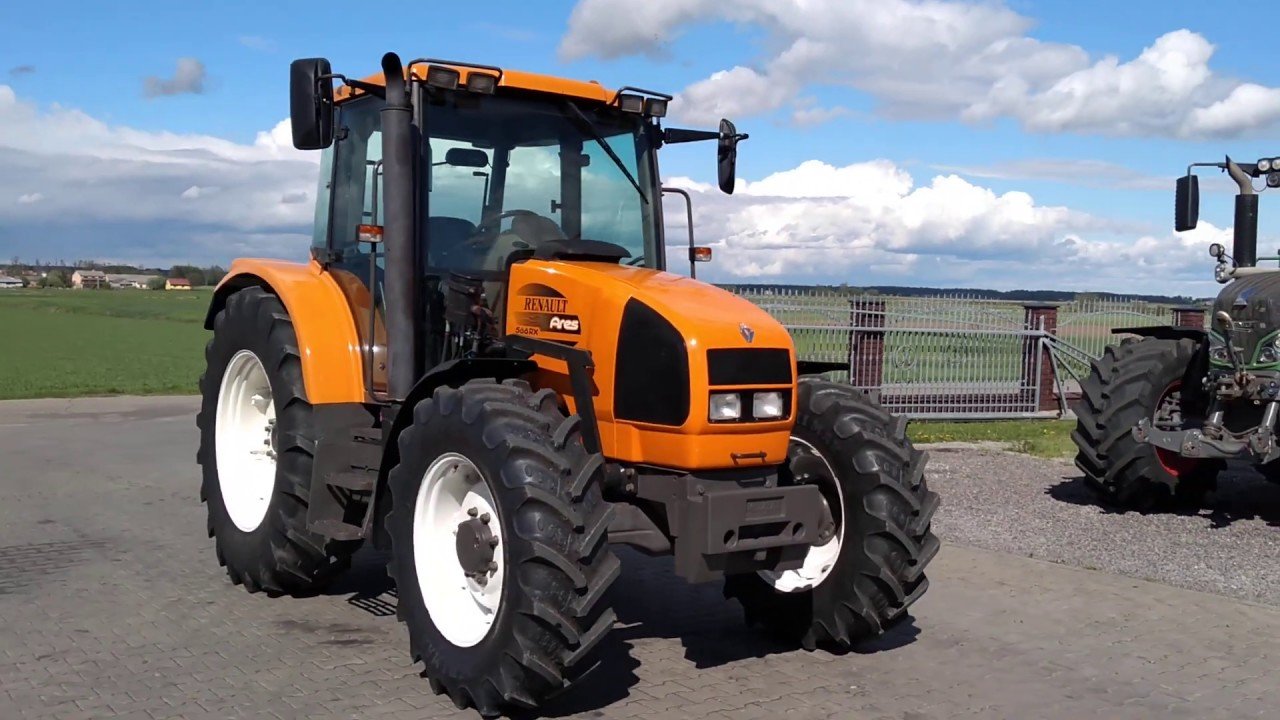

Renault Ares 566 RX/RZ
Built: 2/2001–4/2005 · Series: ARES-500 Baureihe
More machines from model year 2001
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Renault Ares 500 range – tractors Ares 546 to 566 RX/RZ from 1997 to 2003, 66 to 81 kW, four-cylinder engines of 4,525 cm³, 90 to 110 hp
The Ares 500 range opened Renault Agriculture's Ares generation in 1997 and replaced the previous two-digit type designations with the new four-digit naming scheme; the models covered here, Ares 546, 556 and 566, each carry the RX and RZ suffixes for different equipment levels. The range remained in production until Claas took over Renault's tractor division in 2003.
Read on 3 more paragraphs
The register lists here 3 versions with 66.2 to 81 kW, or 90 to 110 hp, from four-cylinder engines of 4,525 cm³, torque from 345 to 406 Nm, unladen weights from 5,135 to 5,165 kg and uniform dimensions of 6,150 mm length, 2,550 mm width and 2,945 mm height, at a rated speed of 2,200 rpm.
With power between 90 and 110 hp, the Ares 500 range was positioned in the mid segment of the Renault line-up and competed with comparable ranges from Fendt, Deutz-Fahr, Massey Ferguson and Case IH; the uniform dimensions of the three models point to a shared chassis with graded engine power.
On a used Ares 500, the condition of the clutch and gearbox, the tightness of the hydraulics and PTO, rust on the chassis and cab mountings, and the condition of the electronic displays all count; parts now run through the Claas network, which took over Renault's tractor division in 2003. The condition of the cab's front dampers is also worth assessing, as their wear directly affects ride comfort and the durability of the cab suspension.
Sources: SpecCodex register, model data: Renault Ares-500-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 110 hp (81 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 406 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,525 cm³correct |
| Bore | 106.5 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 6,150 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Height | 2,945 mmcorrect |
| Wheelbase | 2,494 mmcorrect |
| Ground clearance | 545 mmcorrect |
| Unladen weight | 5,150 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 32 V/ 32 Rcorrect |
| Forward gears | 32correct |
| Front tyres | 480/65 R 28 AScorrect |
| Rear tyres | 600/65 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 170 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 758correct |
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 15.7 kW/t (81 kW / 5.2 t)
Power class: Large (100–180 hp)
Stronger than 71% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Renault Ares 566 RX/RZ have?
The Renault Ares 566 RX/RZ delivers 110 hp.
How much does the Renault Ares 566 RX/RZ weigh?
The unladen weight is 5,150 kg.
What engine does the Renault Ares 566 RX/RZ have?
4 cylinders, 4,525 cm³ displacement, Diesel.
How fast does the Renault Ares 566 RX/RZ go?
Top speed is 40 km/h.
What are the dimensions of the Renault Ares 566 RX/RZ?
6,150 mm × 2,550 mm × 2,945 mm.
When was the Renault Ares 566 RX/RZ built?
Production years: 2/2001–4/2005.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
