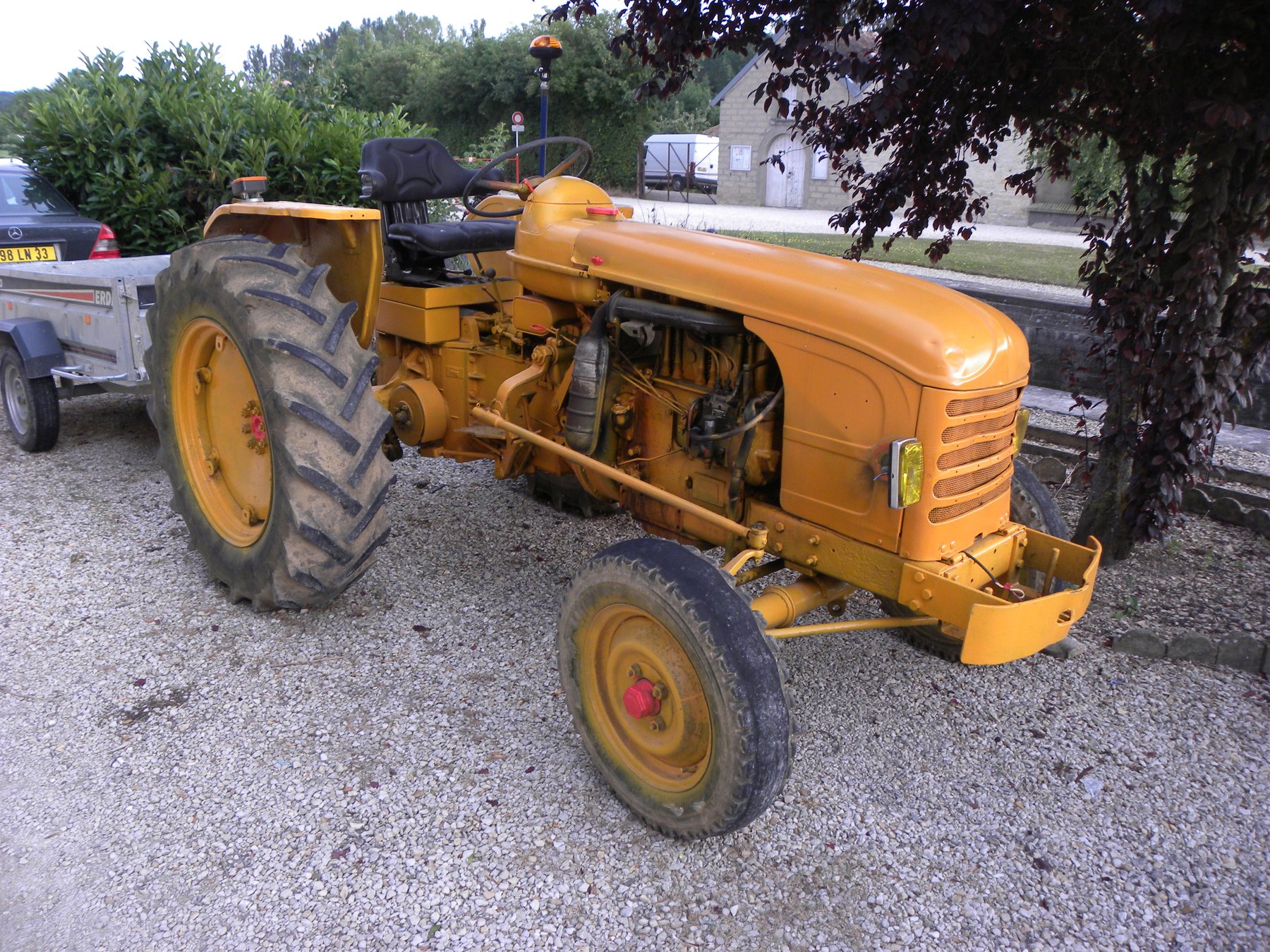

Renault R 7022/R 7023
Built: 1/1951–1/1956 · Series: 3042 er-Serie
More machines from model year 1951
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Renault R 7022/R 7023 (1951-1956): water-cooled four-cylinder farm tractor with 30.9 kW output and a top speed of 25 km/h from the 3042 er-Serie
Alongside its cars and trucks, Renault built farm tractors in France for decades. The R 7022/R 7023 from the 3042 er-Serie was built between January 1951 and January 1956 and belonged to the mid-range standard tractors of post-war French farm machinery.
Read on 3 more paragraphs
The water-cooled four-cylinder diesel engine displaces 4,181 cm³ and delivers 30.9 kW at 1,800 rpm, equivalent to 42 horsepower. With a weight of 1,740 kg, a wheelbase of 1,625 mm, a width of 1,204 mm and a top speed of 25 km/h, the tractor was built for classic drawbar work in arable farming rather than fast road travel.
A four-cylinder diesel engine of a good four litres displacement and about 40 horsepower belonged to the upper mid-range of farm tractors in the early 1950s, powerful enough for ploughing and cultivator work on larger fields yet still manageable for medium-sized holdings. The comparatively narrow track width of 1,204 mm suited the row spacing typical of arable farming at the time.
When buying a used Renault from this early series, it is worth carefully checking the cooling system and the cylinder head gasket, since engines of this age often suffer corrosion inside the water jacket. The injection pump and clutch should also be checked for wear, as original spare parts for this early series are only available to a limited extent today.
Sources: SpecCodex-Register: Kennwerte des Modells R 7022/R 7023
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 42 hp (30.9 kW)correct |
| Rated speed | 1,800 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,181 cm³correct |
| Bore | 107.9 mmcorrect |
| Stroke | 114.3 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,110 mmcorrect |
|---|---|
| Width | 1,204 mmcorrect |
| Height | 1,750 mmcorrect |
| Wheelbase | 1,625 mmcorrect |
| Ground clearance | 435 mmcorrect |
| Unladen weight | 1,740 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 4V/1Rcorrect |
| Forward gears | 4correct |
| Reverse gears | 1correct |
| Front tyres | 5.50 x 16correct |
| Rear tyres | 11 x 28correct |
| Top speed | 25 km/hcorrect |
Origin and approval
| Units built | 1,999correct |
|---|
Where this model stands
Power-to-weight ratio: 17.8 kW/t (31 kW / 1.7 t)
Power class: Universal (40–100 hp)
Stronger than 27% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Renault R 7022/R 7023 have?
The Renault R 7022/R 7023 delivers 42 hp.
How much does the Renault R 7022/R 7023 weigh?
The unladen weight is 1,740 kg.
What engine does the Renault R 7022/R 7023 have?
4 cylinders, 4,181 cm³ displacement, Diesel.
How fast does the Renault R 7022/R 7023 go?
Top speed is 25 km/h.
What are the dimensions of the Renault R 7022/R 7023?
3,110 mm × 1,204 mm × 1,750 mm.
When was the Renault R 7022/R 7023 built?
Production years: 1/1951–1/1956.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
