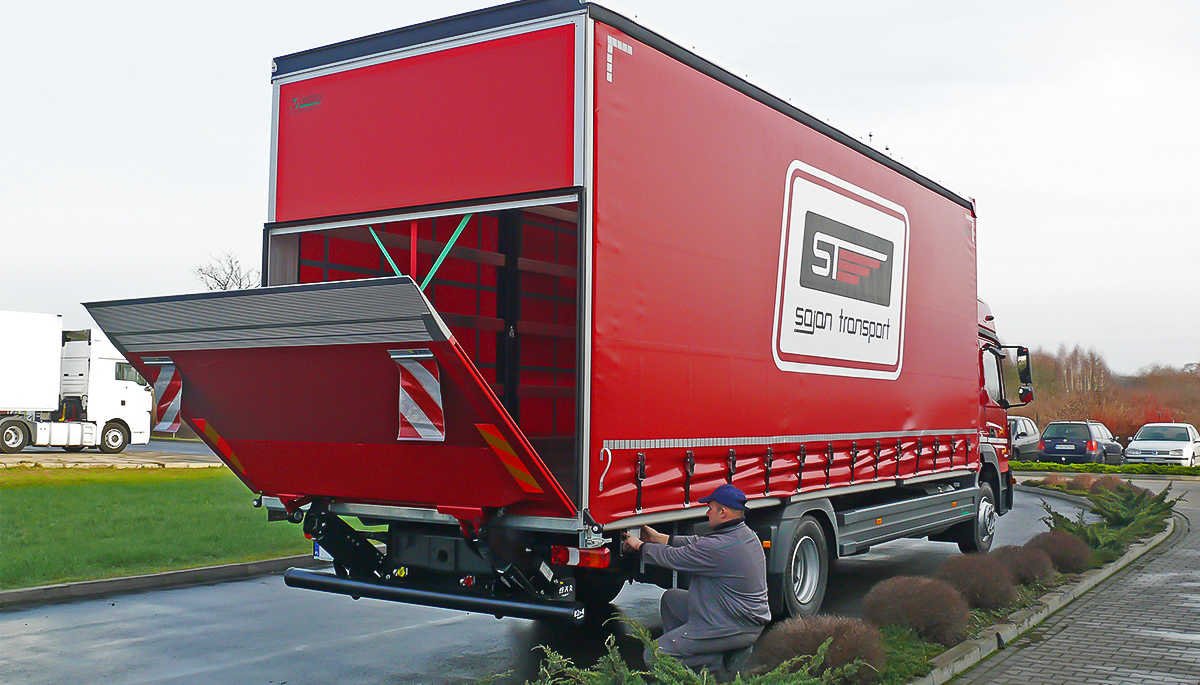

Redos NRT04-1-1D18
Built: 2018 · Series: Other models
More machines from model year 2018
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Redos – other models: collective page of heavy box-body trailers (Box-Trail), 3 versions from 5.2 to 6.8 t unladen weight, 18 t gross weight, up to 13.75 m length
This collective page gathers the Redos trailers that the register could not assign to a named range. The model names Box-Trail and Box-Trailers point to box bodies, as used for weather-protected general cargo transport over long distances.
Read on 3 more paragraphs
The register lists here 3 versions with unladen weights from 5,200 to 6,800 kg at a gross weight of 18,000 kg. Lengths range from 10,800 to 13,750 mm, widths from 2,550 to 2,600 mm.
At a gross weight of 18 tonnes the Redos trailers sit in the heavy class above 10 tonnes, typical of multi-axle centre-axle or drawbar trailers used in long-haul and road-train combinations. The box body protects the load from the weather and suits general and groupage cargo that needs to travel dry and secure over longer distances, and the width of up to 2,600 mm allows standard pallet loading across the full body.
When buying a used trailer of this size, check above all the condition of the axles, braking system and frame, since the high payloads place heavy demands on the chassis. The box body should be checked for tightness, corrosion at the corner posts and door seals, and the drawbar eye or hitch for play and wear. Tyres and brake linings matter greatly given the axle loads; spare parts for axles and brakes are generally available through the general commercial-vehicle trade. The floor and any loading ramp should also be checked for wear from repeated pallet handling.
Sources: SpecCodex register, model data: Redos (weitere Modelle)
Technical data
Dimensions and weights
| Length | 10,850 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 7,000 mmcorrect |
| Unladen weight | 5,200 kgcorrect |
| Gross vehicle weight | 18,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Redos NRT04-1-1D18 weigh?
The unladen weight is 5,200 kg.
What is the gross vehicle weight of the Redos NRT04-1-1D18?
18,000 kg.
Up to what speed is the Redos NRT04-1-1D18 approved?
Approved up to 100 km/h.
What are the dimensions of the Redos NRT04-1-1D18?
10,850 mm × 2,550 mm.
When was the Redos NRT04-1-1D18 built?
Production years: 2018.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
