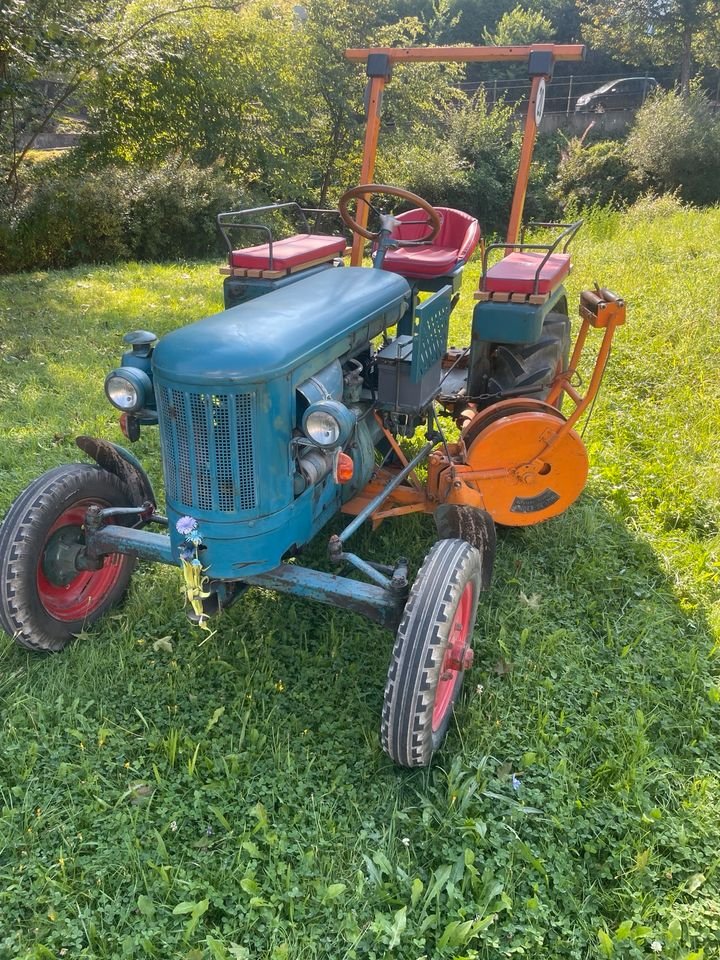

Primus Titus U-15 – specifications
Series: Titus-Serie
The Primus Titus U-15 belongs to the Titus series. The engine delivers 15 hp (11 kW), has 1 cylinder, with a displacement of 1,178 cm³. Rated speed is 1,600 rpm. The machine is 2,500 mm long, 1,500 mm wide and 1,560 mm high. The unladen weight is 1,260 kg. The wheelbase measures 1,510 mm. Ground clearance is 300 mm. Top speed is 16.5 km/h. Transmission: 4 V/1 R. The engine is water-cooled. Tyres: front 5.00-16 ASF, rear 8.00-20 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 150 mm. Construction: unit construction (no separate frame). Injection pressure is 100 bar. Rated output across the Primus range ranges from 12 to 35 hp; the Titus U-15 sits at the bottom of that range with 15 hp. Its immediate neighbours are the P-14 below it with 14 hp and the PD-2 W above it with 24 hp. Rated output across the Primus range ranges from 8.8 to 25.7 kW; here the Titus U-15 sits at the bottom of that range with 11 kW. 7 Primus models across 3 series are on record.
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks) · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Primus Titus series – from single-cylinder to three-cylinder: U-15 and U-35, 11 to 25.7 kW, 1,178 to 3,534 cc diesel, kerb weight 1,260 to 2,100 kg
The Titus series brings together two Primus tractors designated U-15 and U-35, whose designs differ markedly: the U-15 is a light single-cylinder machine for smaller areas, the U-35 a three-cylinder model for medium-heavy field work. The number in the type designation clearly tracks the power class, from the smaller to the larger model. Both engines run at a similar rated speed, pointing to a shared design philosophy despite the difference in cylinder count.
Read on 3 more paragraphs
The register lists 2 variants at 11 to 25.7 kW from single- to three-cylinder diesels of 1,178 to 3,534 cc, kerb weights of 1,260 to 2,100 kg, lengths of 2,500 to 3,000 mm, widths of 1,500 to 1,750 mm, heights of 1,560 to 1,650 mm and a rated 1,500 to 1,600 rpm.
With this spread, the Titus series covered the transition from a small yard tractor to a fully-fledged mid-power field tractor, addressing a broad range of farms of different sizes, from part-time smallholdings to operations with regular field work.
On both models, compression and the condition of the injection pump matter, along with the clutch and gearbox and rust on wings and sheet metal; on a test drive the brakes should pull evenly without play. Given the low production numbers of this range, parts are mostly sourced through specialist vintage dealers and custom remanufacture, which tends to stretch out restoration times compared with more common makes.
Sources: SpecCodex register, model data: Primus Titus-Serie
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 15 hp (11 kW)correct |
| Rated speed | 1,600 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 1,178 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 150 mmcorrect |
| Injection pressure | 100 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,500 mmcorrect |
|---|---|
| Width | 1,500 mmcorrect |
| Height | 1,560 mmcorrect |
| Wheelbase | 1,510 mmcorrect |
| Ground clearance | 300 mmcorrect |
| Unladen weight | 1,260 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 4 V/1 Rcorrect |
| Front tyres | 5.00-16 ASFcorrect |
| Rear tyres | 8.00-20 AScorrect |
| Top speed | 16.5 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 8.7 kW/t (11 kW / 1.3 t)
Power class: Compact (< 40 hp)
Stronger than 3% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
