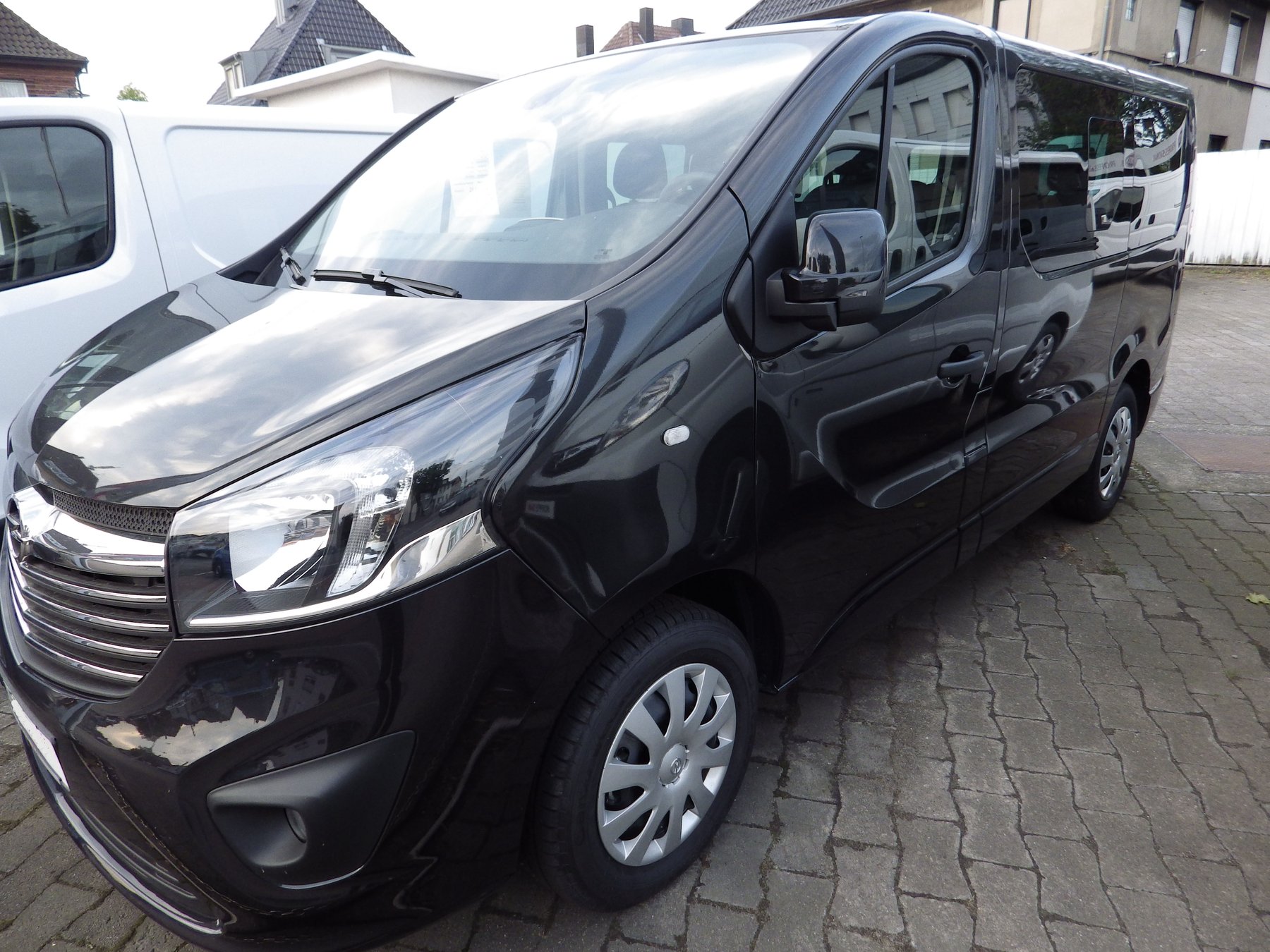

Opel Vivaro - B

Built: 2015-2020 · Series: Vivaro

More machines from model year 2015

Source: https://commons.wikimedia.org/w/index.php?curid=40663020 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Opel Vivaro - B belongs to the Vivaro series. Production: 2015-2020. The engine delivers 85 kW, has 4 cylinders, with a displacement of 1,598 cm³. The machine is 4,999 mm long and 1,956 mm wide. The unladen weight is 1,816 kg. The wheelbase measures 3,100 mm. Top speed is 163 km/h. The gross vehicle weight is 2,900 kg. The machine runs on 4 wheels. The gearbox offers 6 gears. The Vivaro series covers 168 models. Rated output within it ranges from 60 to 107 kW; the Vivaro - B sits in the middle of that range with 85 kW. Its immediate neighbours are the VIVARO VAN below it with 84 kW and the VIVARO VAN F7BDB6 above it with 99 kW. Unladen weight within it ranges from 1,740 to 2,380 kg; here the Vivaro - B sits at the bottom of that range with 1,816 kg. 1437 Opel models across 23 series are on record.

Opel Vivaro – compact van since 2001: joint development with the Renault Trafic and Nissan Primastar, length and height variants, CDTI diesels from 1.6 to 2.5 litres, 2.7- to 3.1-tonne weight classes

The Vivaro emerged in 2001 as a joint project between General Motors, Renault and Nissan, sold in near-identical technical form as the Renault Trafic and Nissan Primastar, and built at the British plant in Luton. The second generation from 2014 remained Renault-based before the third generation switched, in 2019 after PSA Group's takeover of Opel, to the French EMP2 platform, which the Vivaro has since shared with the Peugeot Expert and Citroën Jumpy. Model designations with L1/L2 and H1/H2, as on the larger Movano, denote wheelbase and roof-height variants, with weight classes between 2.7 and 3.1 tonnes.

Read on 3 more paragraphs

The register lists 168 versions with power outputs from 60 to 107 kW, displacements from 1,598 to 2,464 cm³ and four cylinders. Unladen weights range from 1,635 to 2,720 kg, permissible gross weights from 2,150 to 3,100 kg, widths from 1,680 to 2,230 mm; length figures are only recorded for a smaller share of the models.

As a mid-size van, the Vivaro sits between the compact Combo and the large Movano, competing with the VW Transporter, the Ford Transit Custom and its technical siblings the Trafic and Primastar.

On the first and second generations, check the timing chain or timing belt depending on the engine code, the clutch pressure plate, rust on the sliding-door tracks and load sill, and turbocharger behaviour under load; on the third, PSA-based generation, additionally check particulate-filter regeneration in urban driving.

Sources: SpecCodex register, model data: Opel Vivaro, Opel Vivaro (Opel, Hersteller)

Technical data

Engine

Power85 kWcorrect
Cylinders4correct
Displacement1,598 cm³correct

Dimensions and weights

Length4,999 mmcorrect
Width1,956 mmcorrect
Wheelbase3,100 mmcorrect
Unladen weight1,816 kgcorrect
Gross vehicle weight2,900 kgcorrect

Drivetrain and chassis

Gears6correct
Wheels4correct
Top speed163 km/hcorrect

Where this model stands

Power-to-weight ratio: 46.8 kW/t (85 kW / 1.8 t)

Stronger than 48% of the vans in the register — out of 7,144 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Opel Vivaro - B have?

The Opel Vivaro - B delivers 85 kW.

How much does the Opel Vivaro - B weigh?

The unladen weight is 1,816 kg.

What is the gross vehicle weight of the Opel Vivaro - B?

2,900 kg.

What engine does the Opel Vivaro - B have?

4 cylinders, 1,598 cm³ displacement.

What are the dimensions of the Opel Vivaro - B?

4,999 mm × 1,956 mm.

When was the Opel Vivaro - B built?

Production years: 2015-2020.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
