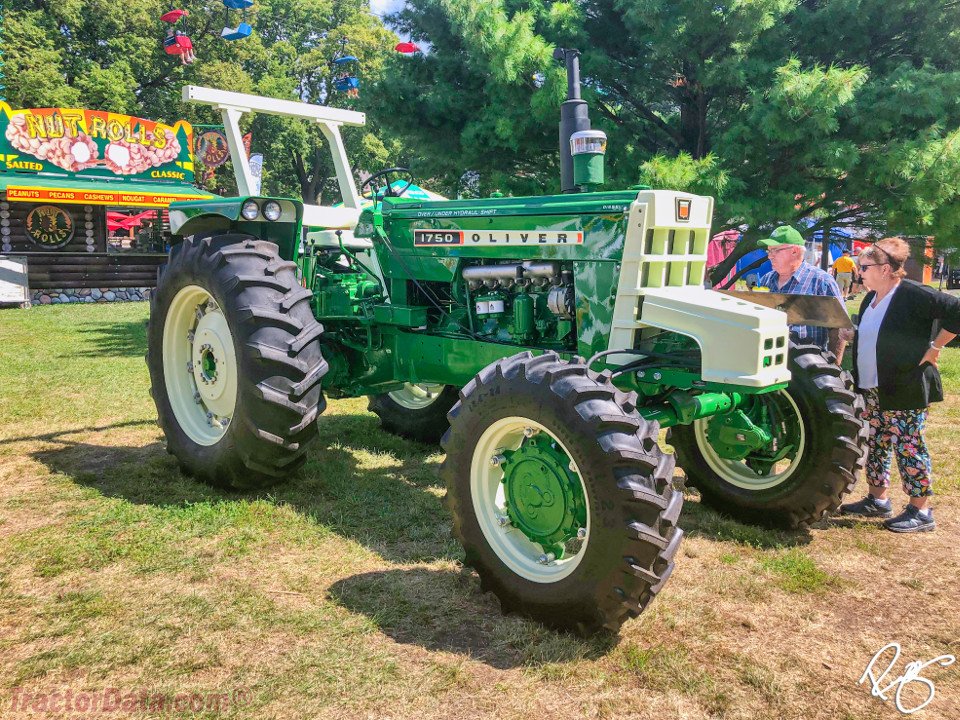

Oliver 1750 (4WD)
Built: 1964–1969 · Series: 50 er-Baureihe
More machines from model year 1964
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Oliver 50 series (1964–1969) – the last green Olivers from Charles City before White: 1550 to 2150, the hundreds number as size class, 50 as series, Oliver four- and six-cylinders, Perkins and GM two-stroke, petrol
The 50 series was the second generation of the four-digit Oliver tractors with which the maker from Charles City, Iowa, took on John Deere and International Harvester in the 1960s – owned since 1960 by White Motor, which in 1969 merged the brand with Minneapolis-Moline and Cockshutt into White Farm Equipment. The type logic: the hundreds number orders the size class in ascending order – 1550 about 54 hp, 1650 about 66, 1750 about 80, 1850 about 92, 1950 about 105 hp, 2050 and 2150 the big models over 115 hp – 50 marks the series succeeding the 00 range (1600, 1800, 1900). The engines show Oliver's variety: own four- and six-cylinders in the 1550 to 1750 and in the 2050 and 2150 (of 7.8 litres), the Perkins 6.354 in the 1850, in the 1950 at first the GM 4-53 two-stroke diesel from Detroit Diesel and then as 1950-T the turbocharged Oliver six-cylinder; petrol, LPG and diesel were available on most models, four-wheel drive as 4WD.
Read on 3 more paragraphs
The register lists 8 versions with 39.7 to 97.8 kW from four- and six-cylinders of 3,479 to 7,837 cm³ at 2,200 to 2,400 rpm, unladen weights from 3,175 to 6,595 kg, lengths from 3,523 to 4,122 mm, widths from 1,938 to 2,197 mm and heights from 1,904 to 2,403 mm.
The 50s are regarded as the best Olivers: the Hydra-Power powershift, the Over/Under Hydraul-Shift preselector and the cabs of the late years made them popular on the prairies; in 1969 the 55 series followed, and from 1975 everything was called White.
On used tractors, originality, engine condition (on the 1950 the two-stroke GM with its own character), Hydra-Power transmission, hydraulics and PTO, sheet metal and tyres count; parts run through AGCO successor dealers and Oliver collector specialists.
Sources: SpecCodex register, model data: Oliver 50er-Baureihe, Oliver Farm Equipment Company (Wikipedia)
Technical data
Engine
| Fuel | Benzin/Dieselcorrect |
|---|---|
| Power | 81 hp (59.6 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 4,639 cm³correct |
| Bore | 98.43 mmcorrect |
| Stroke | 101.6 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,051 mmcorrect |
|---|---|
| Width | 2,048 mmcorrect |
| Height | 2,162 mmcorrect |
| Wheelbase | 2,616 mmcorrect |
| Ground clearance | 647 mmcorrect |
| Unladen weight | 3,928 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 6 V/2 R, 12 V/4 R or 18 V/6 Rcorrect |
| Front tyres | 7.50-15 (4WD: 7.50-18)correct |
| Rear tyres | 18.4-34 (4WD: 15.5-38)correct |
| Top speed | 24 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|
Where this model stands
Power-to-weight ratio: 15.2 kW/t (60 kW / 3.9 t)
Power class: Universal (40–100 hp)
Stronger than 55% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Oliver 1750 (4WD) have?
The Oliver 1750 (4WD) delivers 81 hp.
How much does the Oliver 1750 (4WD) weigh?
The unladen weight is 3,928 kg.
What engine does the Oliver 1750 (4WD) have?
6 cylinders, 4,639 cm³ displacement, Benzin/Diesel.
How fast does the Oliver 1750 (4WD) go?
Top speed is 24 km/h.
What are the dimensions of the Oliver 1750 (4WD)?
4,051 mm × 2,048 mm × 2,162 mm.
When was the Oliver 1750 (4WD) built?
Production years: 1964–1969.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
