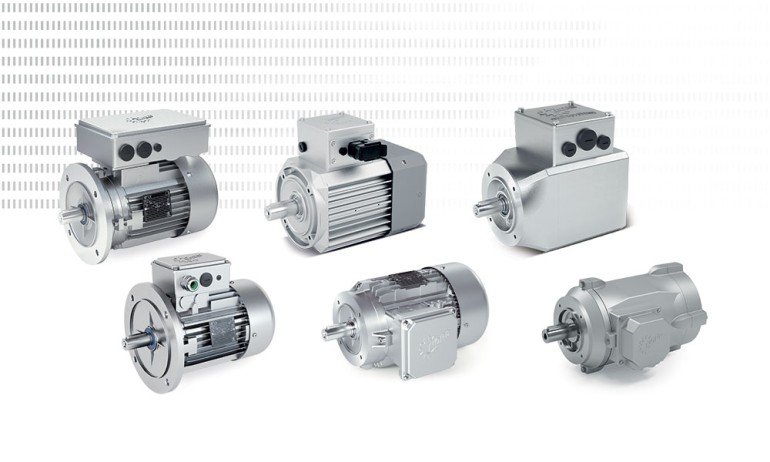

Nord 225SH
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
NORD – other electric motors: the collective page of drives from the geared-motor maker in Bargteheide outside the named ranges, frame sizes 80 to 250, 0.75 to 55 kW, four-pole
This page gathers the NORD electric motors the Australian energy-efficiency register (GEMS/MEPS) could not assign to a named range. Getriebebau NORD, founded in 1965 and headquartered in Bargteheide in northern Germany, is a family-owned maker of geared motors, frequency inverters and drive technology with its own manufacturing at several European and Asian sites. The model designations on this page range from the internal factory codes 200XH, 225MH, 225SH and 250WH to the range explicitly marked as IE2, GBN-IE2, and the geared-motor drives designated APAB SK.
Read on 3 more paragraphs
The register lists here 9 versions with 0.75 to 55 kW, exclusively four-pole, at voltages of 415 V (4 motors), 230/400 V (3 motors) and 400/690 V (2 motors). Full-load efficiencies range from 82.43 to 94.01%, and at 75% load from 83.03 to 94.5%. Frame sizes run from 80 to 250. As manufacturing countries the register mostly records China, in a few cases also combinations with Germany, Italy and Australia, reflecting NORD's several production sites. Testing mostly followed the 2019 GEMS determination (6 motors) and 2012 (3 motors); two of the nine motors reach the 2018 High Efficiency Level, seven remain unclassified.
NORD positions itself as one of the few drive makers offering gearbox, motor and frequency inverter from a single source, serving conveying plant, agitators and material-flow technology in industry and logistics worldwide.
When buying used, bearing condition and a checked insulation resistance of the winding, the condition of the terminal box and fan cover, a legible nameplate with frame size, voltage marking and, on the GBN-IE2 range, the stated efficiency class matter; on combined geared motors, the gearbox oil level and condition should also be checked. Spares and service run through the NORD sales network.
Sources: SpecCodex register, model data: NORD (weitere Modelle, MEPS-Registrierungen), NORD (Getriebebau NORD, Hersteller)
Technical data
Engine
| Rated output | 37 kWcorrect |
|---|
Electrical data
| Rated voltage | 415 Vcorrect |
|---|---|
| Number of poles | 4correct |
| Protection class | IP55correct |
| Frame size | 225SHcorrect |
| Mounting (IEC 60034-7) | B14correct |
| Efficiency at full load | 93.71 %correct |
| Efficiency at 75 % load | 94.16 %correct |
| Efficiency at half load | 93.95 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the Nord 225SH have?
The Nord 225SH delivers 37 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
