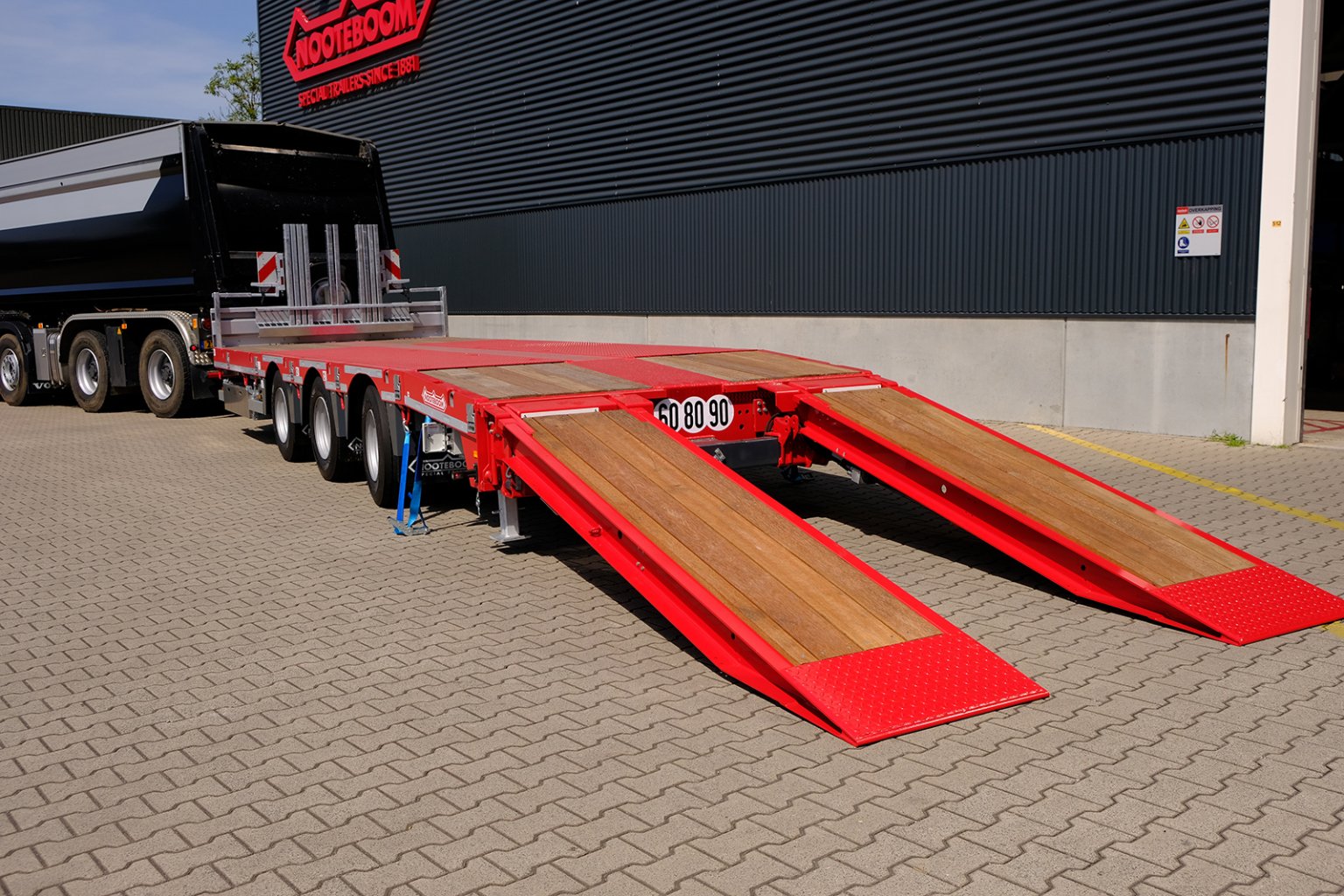

Nooteboom ASDV 24 12
Built: 1995-1996 · Series: ASDV
More machines from model year 1995
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Nooteboom ASDV – semi low-loader range from the Dutch manufacturer: 19,350 to 36,000 kg gross weight, 5,350 to 9,140 kg unladen weight, 9.3 to 11.2 m length
This page gathers the ASDV range from the Dutch heavy-haulage specialist Nooteboom of Wijchen, which has built low-loaders and semi-trailers for construction and industrial machinery for generations. The models from ASDV 20 to ASDV 30-121 use the number to give the payload or size class in tonnes, while the suffix 12S or -12 marks the axle configuration.
Read on 4 more paragraphs
The register lists here 8 versions with unladen weights from 5,350 to 9,140 kg, gross weights from 19,350 to 36,000 kg, lengths from 9,280 to 11,200 mm and widths from 2,490 to 2,550 mm.
The ASDV range covers the middle segment of Nooteboom's programme, between light construction-machinery transporters and the marque's largest modular semi-trailers, and is used in European construction-machinery and industrial-goods transport, where the lowered loading floor gives excavators, wheel loaders and compact machinery a low loading height.
As a class O4 semi-trailer, the ASDV range needs an air brake system and driving licence category CE for towing; power transfer runs through the fifth-wheel coupling and kingpin on the dropped neck construction. The lowered frame between the axles on semi low-loaders is typically mounted on sprung axles with hydraulic steering of the rear axle group, which eases manoeuvring with long construction machines.
On a used semi-trailer, the condition of the frame and lowered loading floor, corrosion at welds and loading ramps, the braking system and axles, wear on the kingpin and landing legs, and the periodic-inspection history all count; parts run through Nooteboom itself and the usual trailer suppliers.
Sources: SpecCodex register, model data: Nooteboom ASDV
Technical data
Dimensions and weights
| Width | 2,490 mmcorrect |
|---|---|
| Wheelbase | 628 mmcorrect |
| Unladen weight | 6,300 kgcorrect |
| Gross vehicle weight | 19,350 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Nooteboom ASDV 24 12 weigh?
The unladen weight is 6,300 kg.
What is the gross vehicle weight of the Nooteboom ASDV 24 12?
19,350 kg.
Up to what speed is the Nooteboom ASDV 24 12 approved?
Approved up to 100 km/h.
When was the Nooteboom ASDV 24 12 built?
Production years: 1995-1996.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
