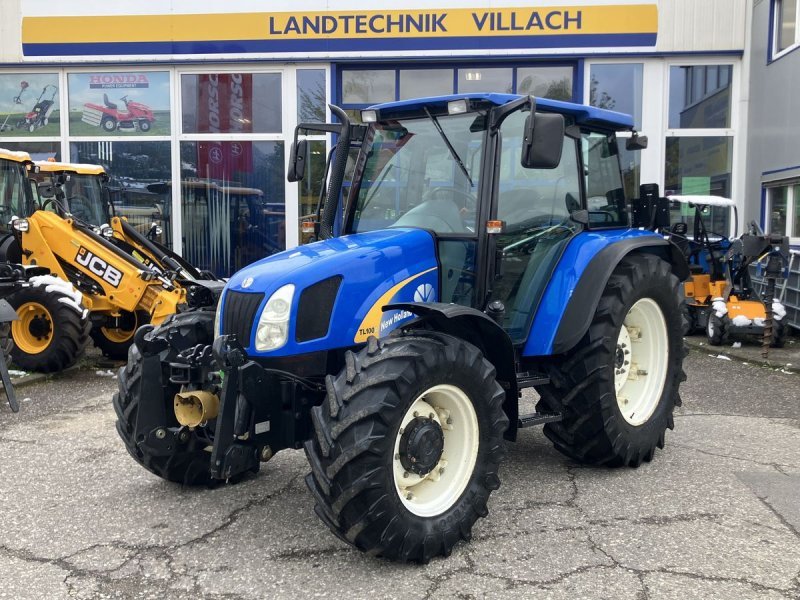

Nh Geotech TL 100 (DT)

Built: 1998–2004 · Series: TL-Baureihe

More machines from model year 1998

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Nh Geotech TL 100 (DT) is a model in the TL series. Production: 1998–2004. The engine delivers 95 hp (69.9 kW), has 4 cylinders, with a displacement of 3,908 cm³. Torque is 332 Nm. Rated speed is 2,500 rpm. The machine is 4,430 mm long, 2,009 mm wide and 2,550 mm high. The unladen weight is 4,365 kg. The wheelbase measures 2,342 mm. Ground clearance is 440 mm. Top speed is 30 km/h. Transmission: 20V/12R, 24V/12R and 24V/24R. The engine is water-cooled. Tyres: front 7.50-20 ASF (DT: 380/70 R 24 AS), rear 480/70 R 34 AS. The fuel is diesel. The bore measures 104 mm. The stroke is 115 mm. The compression ratio is 16.5:1. Maximum torque is reached at 1,550 rpm. Construction: unit construction (no separate frame). The TL-Baureihe series covers 4 models. Rated output within it ranges from 65 to 95 hp; the TL 100 (DT) sits at the top of that range with 95 hp. Its immediate neighbours are the TL 90 (DT) below it with 85 hp. Unladen weight within it ranges from 4,150 to 4,365 kg; here the TL 100 (DT) sits at the top of that range with 4,365 kg. 19 Nh Geotech models across 6 series are on record.

New Holland Geotech TL series – utility tractors of the merger era: four-cylinder diesels at 3,613 to 3,908 cc, 47.8 to 69.9 kW, types TL 70, TL 80, TL 90 and TL 100 (DT)

The TL series represented the versatile utility class in the 1990s New Holland Geotech generation, between the more compact L series and the heavy M and TS series. The four types TL 70, TL 80, TL 90 and TL 100 state the power step directly in the type number, and the DT suffix denotes the four-wheel-drive version; all four types ran consistently with four-cylinder engines.

Read on 3 more paragraphs

The register lists 4 versions with 47.8 to 69.9 kW from four-cylinders of 3,613 to 3,908 cc displacement at a consistent 2,500 rpm; torque ranges from 231 to 332 Nm. Unladen weights lie between 4,150 and 4,365 kg, lengths between 4,280 and 4,430 mm, widths between 2,005 and 2,009 mm, and heights between 2,475 and 2,550 mm.

As a utility tractor, the TL series covered both field work and transport and loading tasks, aimed at mixed arable and livestock farms of medium size, in competition with comparable series from Deutz-Fahr and Massey Ferguson. Distribution ran through the existing Ford and New Holland dealer network, which was gradually converted to the new brand identity during this transitional period.

On a used purchase, check the condition of the clutch and gearbox, the tightness of the hydraulics and PTO, and corrosion on wings and steering knuckles; on DT four-wheel-drive versions also the front-axle drive and propeller shafts, with parts running through the New Holland network.

Sources: SpecCodex register, model data: New Holland Geotech TL-Baureihe, New Holland (CNH, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	95 hp (69.9 kW)correct
Rated speed	2,500 rpmcorrect
Torque	332 Nmcorrect
Speed at max. torque	1,550 rpmcorrect
Cylinders	4correct
Displacement	3,908 cm³correct
Bore	104 mmcorrect
Stroke	115 mmcorrect
Compression ratio	16.5correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,430 mmcorrect
Width	2,009 mmcorrect
Height	2,550 mmcorrect
Wheelbase	2,342 mmcorrect
Ground clearance	440 mmcorrect
Unladen weight	4,365 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	20V/12R, 24V/12R and 24V/24Rcorrect
Front tyres	7.50-20 ASF (DT: 380/70 R 24 AS)correct
Rear tyres	480/70 R 34 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 16 kW/t (70 kW / 4.4 t)

Power class: Universal (40–100 hp)

Stronger than 63% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Nh Geotech TL 100 (DT) have?

The Nh Geotech TL 100 (DT) delivers 95 hp.

How much does the Nh Geotech TL 100 (DT) weigh?

The unladen weight is 4,365 kg.

What engine does the Nh Geotech TL 100 (DT) have?

4 cylinders, 3,908 cm³ displacement, Diesel.

How fast does the Nh Geotech TL 100 (DT) go?

Top speed is 30 km/h.

What are the dimensions of the Nh Geotech TL 100 (DT)?

4,430 mm × 2,009 mm × 2,550 mm.

When was the Nh Geotech TL 100 (DT) built?

Production years: 1998–2004.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
