New Holland TM190 4WD – specifications
Series: Other models
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

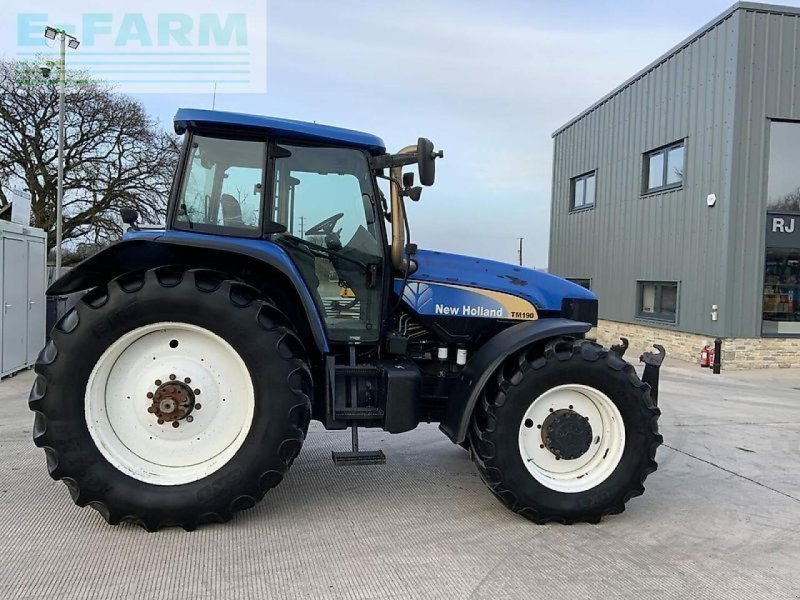

The New Holland TM190 is a tractor from the TM series, manufactured in the four-wheel-drive variant. As a six-cylinder diesel tractor with turbocharging and air-to-air cooling, this model is positioned in the upper performance range. The design includes a cab with a height of 3,055 mm and an overall length of 4,820 mm. The wheelbase of 2,818 mm ensures stability during field work. The unladen weight of 6,250.5 kg is distributed across the axles to minimize ground pressure and increase traction.
The engine output of 194 hp at a rated speed of 2,200 rpm delivers a high torque of 751 Nm. These values enable the use of heavy implements and large plows. The powershift transmission offers 18 forward and 6 reverse gears, allowing for flexible speed adjustment to various working speeds. The hydraulic system, with a flow rate of 120 l/min and a pressure of 189.6 bar, reliably supplies high-demand implements. With a lifting capacity of 7,750 kg, the Category II/III three-point hitch can safely lift and lower heavy loads.
Within the series, the TM190 occupies a specific position. The next smaller model in the range offers lower output, while the next larger model has more horsepower. The performance span between these models defines the application range of the TM190. This classification indicates that the tractor is designed for tasks requiring higher tractive force and hydraulic power than the smaller variants, yet does not exhaust the maximum capacity of the larger models. The number of gears and the transmission ratios are tuned to this performance level.
New Holland – other models: the collective page of tractors outside the named ranges, from the Fiat heritage (80-66, 110-90) through the Ford 40 and 70 series (7740, 8340, 8670) to the 9x82 and T9, 14 to 457 kW, NEF
This page gathers the New Holland tractors the register could not assign to a named range – and it shows the brand's three roots: Fiat of Turin, Ford of Basildon and Versatile of Winnipeg. New Holland, founded in 1895 as a farm-machinery works in Pennsylvania, was joined with Ford Tractor in 1986 into Ford New Holland and bought by Fiat in 1991, which merged with Case as CNH from 1999; the blue tractors of the 1990s therefore carry three type logics. The Fiat types such as 80-66 and 110-90 give the hp class before and the series after the hyphen; the Ford 40 (5640 to 8340) and 70 (8670 to 8970) series from Basildon and Antwerp give the power in the middle digits and the series in the last, with SLE and SL as equipment lines; the articulated 9282 to 9882 and the later T9 come from Winnipeg and Fargo. From 2007 the T logic applies: T4 to T9 as ranges, the following digits as power (T6.140 about 140 hp). The engines are Fiat's 8000 series, Ford's Genesis, FPT's NEF and Cursor and Cummins in the articulated tractors.
Read on 3 more paragraphs
The register lists here 578 versions with 13.8 to 457 kW from three- to six-cylinders of 954 to 15,001 cm³, PTO outputs from 15 to 530 hp, lift capacities from 574 to 8,900 kg, unladen weights from 652 to 25,401 kg, gross weights from 3,000 to 18,000 kg, lengths from 2,700 to 8,005 mm and widths from 1,082 to 4,060 mm.
New Holland is Europe's second-largest tractor brand after John Deere and in the top three in Italy, Spain, France, Britain and Turkey; the brand also carries the specialist tractors from Jesi and the Boomer compact class from Japan.
On used tractors, clutch and shuttle count on Fiat types, electronics and powershift on the Ford 40 and 70 series, transmission and tyres on the articulated tractors, and on the T ranges operating hours, common-rail injection and exhaust aftertreatment; parts run through CNH.
Sources: SpecCodex register, model data: New Holland (weitere Modelle), New Holland Agriculture (manufacturer)
Technical data
Engine
| Power | 194 hp (142.7 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 751 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 7,472.5 cm³correct |
| Aspiration | Turbocharged, air-to-air intercooledcorrect |
| Coolant capacity | 26.1 lcorrect |
| Engine oil capacity | 19.3 lcorrect |
Dimensions and weights
| Length | 4,820 mmcorrect |
|---|---|
| Width | 2,495 mmcorrect |
| Height | 3,055 mmcorrect |
| Wheelbase | 2,818 mmcorrect |
| Ground clearance | 470.2 mmcorrect |
| Unladen weight | 6,250.5 kgcorrect |
Drivetrain and chassis
| Gearbox | 18 V/6 R or 19 V/6 Rcorrect |
|---|---|
| Gearbox type | Power Command powershift transmissioncorrect |
| Forward gears | 18correct |
| Reverse gears | 6correct |
| Tyre size | 14.9R28/18.4R38correct |
Working data
| Lifting capacity | 7,750 kgcorrect |
|---|---|
| Pump flow | 120 l/mincorrect |
| Hydraulic oil capacity | 100.3 lcorrect |
| Hydraulic pressure | 189.6 barcorrect |
| Fuel tank capacity | 397.8 lcorrect |
Other data
| Cab height | 2,883.4 mmcorrect |
|---|---|
| Linkage category | Cat II/IIIcorrect |
| PTO output | 160 hpcorrect |
| PTO speed | 540E/1000 rpmcorrect |
| System voltage | 12 Vcorrect |
Where this model stands
Power-to-weight ratio: 22.8 kW/t (143 kW / 6.3 t)
Power class: Heavy (> 180 hp)
Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland TM190 have?
The New Holland TM190 delivers 194 hp.
How much does the New Holland TM190 weigh?
The unladen weight is 6,250 kg.
What engine does the New Holland TM190 have?
6 cylinders, 7,472 cm³ displacement.
What is the PTO output of the New Holland TM190?
PTO output is 160 hp. PTO speeds: 540E/1000 rpm.
How much does the rear linkage of the New Holland TM190 lift?
The rear linkage lifts 7,750 kg.
What are the dimensions of the New Holland TM190?
4,820 mm × 2,495 mm × 3,055 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
