Technical register for agricultural, construction and commercial machinery · sourced data
Start › Tractors › New Holland › Other models › TM175

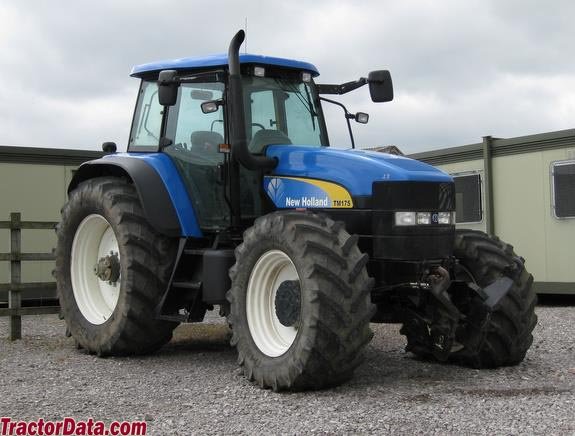

New Holland TM175 4WD – specifications

Series: Other models

Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The New Holland TM175 is a tractor from the TM series, offered in the four-wheel-drive variant. This model is positioned in the upper power range of the series and is designed for applications requiring high traction and continuous power transmission. The design is based on a six-cylinder engine with turbocharging and intercooling, ensuring efficient combustion under high load. Specific production period data are not explicitly listed for this model, but the technical design suggests a modern generation engineered for durability and ease of maintenance.

Engine output of 177 hp at a rated speed of 2,200 rpm is supported by a maximum torque of 694 Nm. These values enable the pulling of heavy implements or trailers without excessive speed changes. The curb weight of 6,250.5 kg ensures high traction stability, while the ground clearance of 470.2 mm facilitates driving over field obstacles. The powershift transmission with 18 forward and 6 reverse gears allows for fine adjustment of speed to varying soil conditions and working speeds. The lifting capacity of 7,750 kg on the Category II/III three-point hitch enables the use of large rear-mounted implements.

Within the TM series, the TM175 represents a model with high power density. Compared to smaller models in the series, it offers significantly more reserves for demanding soil cultivation due to its higher engine output and greater torque. Compared to larger models in the series, it remains more agile due to its lower weight and more compact dimensions. The hydraulic performance, with a flow rate of 120 l/min and a pressure of 189.6 bar, supports the operation of equipment with high oil demand. The PTO power of 145 hp at 540E or 1,000 rpm meets the requirements of common agricultural equipment.

New Holland – other models: the collective page of tractors outside the named ranges, from the Fiat heritage (80-66, 110-90) through the Ford 40 and 70 series (7740, 8340, 8670) to the 9x82 and T9, 14 to 457 kW, NEF

This page gathers the New Holland tractors the register could not assign to a named range – and it shows the brand's three roots: Fiat of Turin, Ford of Basildon and Versatile of Winnipeg. New Holland, founded in 1895 as a farm-machinery works in Pennsylvania, was joined with Ford Tractor in 1986 into Ford New Holland and bought by Fiat in 1991, which merged with Case as CNH from 1999; the blue tractors of the 1990s therefore carry three type logics. The Fiat types such as 80-66 and 110-90 give the hp class before and the series after the hyphen; the Ford 40 (5640 to 8340) and 70 (8670 to 8970) series from Basildon and Antwerp give the power in the middle digits and the series in the last, with SLE and SL as equipment lines; the articulated 9282 to 9882 and the later T9 come from Winnipeg and Fargo. From 2007 the T logic applies: T4 to T9 as ranges, the following digits as power (T6.140 about 140 hp). The engines are Fiat's 8000 series, Ford's Genesis, FPT's NEF and Cursor and Cummins in the articulated tractors.

Read on 3 more paragraphs

The register lists here 578 versions with 13.8 to 457 kW from three- to six-cylinders of 954 to 15,001 cm³, PTO outputs from 15 to 530 hp, lift capacities from 574 to 8,900 kg, unladen weights from 652 to 25,401 kg, gross weights from 3,000 to 18,000 kg, lengths from 2,700 to 8,005 mm and widths from 1,082 to 4,060 mm.

New Holland is Europe's second-largest tractor brand after John Deere and in the top three in Italy, Spain, France, Britain and Turkey; the brand also carries the specialist tractors from Jesi and the Boomer compact class from Japan.

On used tractors, clutch and shuttle count on Fiat types, electronics and powershift on the Ford 40 and 70 series, transmission and tyres on the articulated tractors, and on the T ranges operating hours, common-rail injection and exhaust aftertreatment; parts run through CNH.

Sources: SpecCodex register, model data: New Holland (weitere Modelle), New Holland Agriculture (manufacturer)

Technical data

Engine

Power177 hp (130.2 kW)correct
Rated speed2,200 rpmcorrect
Torque694 Nmcorrect
Cylinders6correct
Displacement7,472.5 cm³correct
AspirationTurbocharged, air-to-air intercooledcorrect
Coolant capacity26.1 lcorrect
Engine oil capacity19.3 lcorrect

Dimensions and weights

Length4,820 mmcorrect
Width2,495 mmcorrect
Height3,050 mmcorrect
Wheelbase2,818 mmcorrect
Ground clearance470.2 mmcorrect
Unladen weight6,250.5 kgcorrect

Drivetrain and chassis

Gearbox18 V/6 R or 19 V/6 Rcorrect
Gearbox typePower Command powershift transmissioncorrect
Forward gears18correct
Reverse gears6correct
Tyre size14.9R28/18.4R38correct

Working data

Lifting capacity7,750 kgcorrect
Pump flow120 l/mincorrect
Hydraulic oil capacity100.3 lcorrect
Hydraulic pressure189.6 barcorrect
Fuel tank capacity397.8 lcorrect

Other data

Cab height2,883.4 mmcorrect
Linkage categoryCat II/IIIcorrect
PTO output145 hpcorrect
PTO speed540E/1000 rpmcorrect
System voltage12 Vcorrect

Where this model stands

Power-to-weight ratio: 20.8 kW/t (130 kW / 6.3 t)

Power class: Large (100–180 hp)

Stronger than 89% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the New Holland TM175 have?

The New Holland TM175 delivers 177 hp.

How much does the New Holland TM175 weigh?

The unladen weight is 6,250 kg.

What engine does the New Holland TM175 have?

6 cylinders, 7,472 cm³ displacement.

What is the PTO output of the New Holland TM175?

PTO output is 145 hp. PTO speeds: 540E/1000 rpm.

How much does the rear linkage of the New Holland TM175 lift?

The rear linkage lifts 7,750 kg.

What are the dimensions of the New Holland TM175?

4,820 mm × 2,495 mm × 3,050 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
