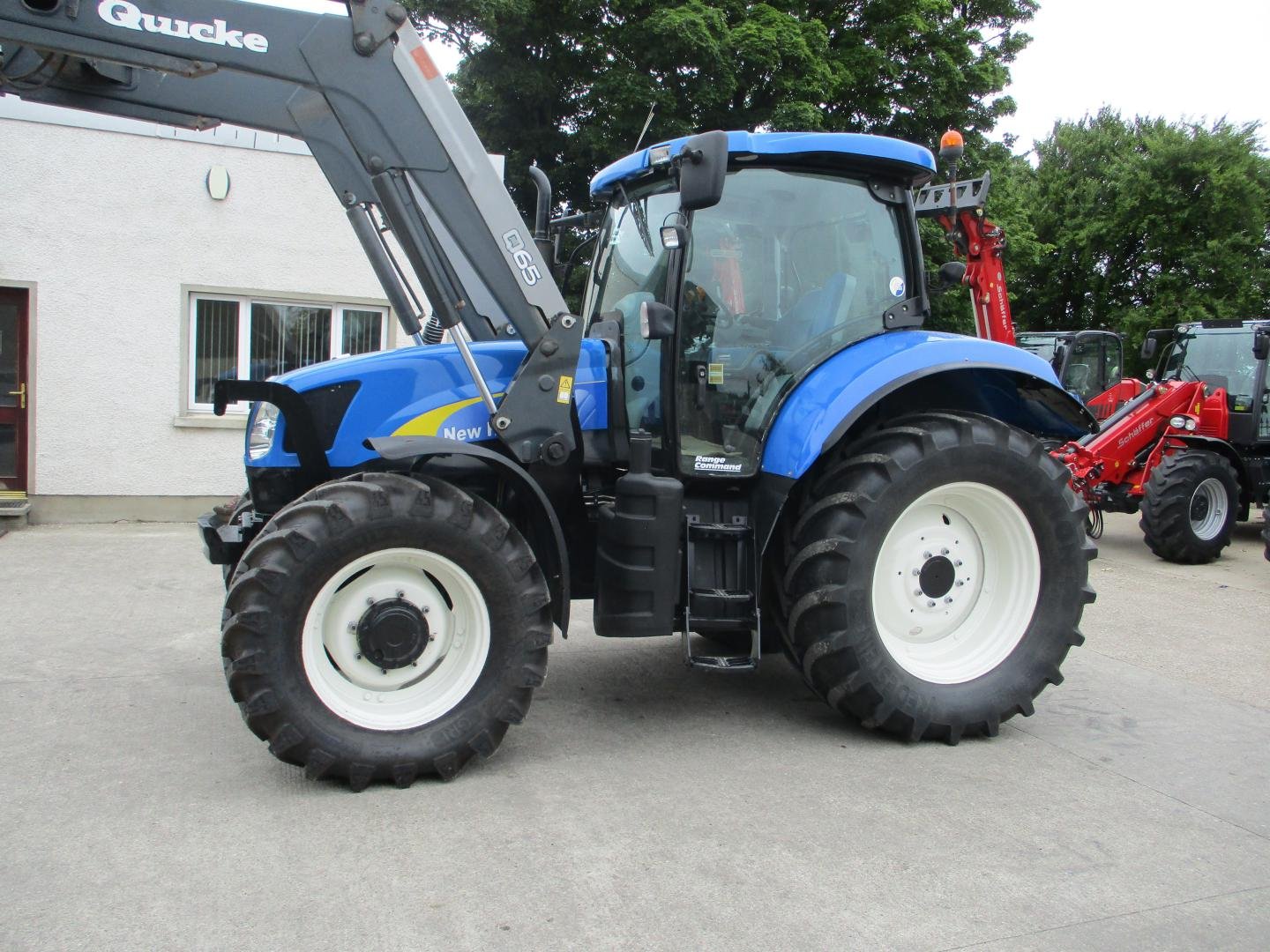

New Holland T6050 Elite (5380 kg) 4WD
Series: T6050
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland T6050 (2007–2012) – the 125 hp six-cylinder of the T6000 range from Basildon: Delta, Plus and Elite as equipment lines, NEF engine of 6.75 litres, Range Command and Power Command, 78 to 93 kW
The T6050 was the middle six-cylinder model of the T6000 range with which New Holland replaced the TS-A range in 2007 – built in Basildon, England, between the T6030 with 117 and the T6070 with 141 hp. The type logic: T marks the tractor ranges of the blue programme, 6 the mid-range series, 050 the power step with 125 hp rated; the equipment lines follow the suffix: Delta the simple version with mechanical transmission, Plus the medium, Elite the upper one with Power Command powershift, front-axle suspension and electronic hydraulics. The engine is FPT's NEF six-cylinder of 6.75 litres at 2,200 rpm, on Plus and Elite with power boost for PTO and transport work – the register span of 78 to 93 kW shows rated and maximum power, the PTO output of 95 to 105 hp the versions.
Read on 3 more paragraphs
The register lists 8 versions with 78.3 to 93.2 kW from the six-cylinder of 6,701 to 6,752 cm³, torque from 549 to 596 Nm, 95 to 105 hp at the PTO, lift capacities from 3,406 to 5,539 kg, unladen weights from 5,230 to 6,250 kg, lengths from 4,500 to 4,950 mm, widths from 2,280 to 2,450 mm and heights from 2,805 to 3,040 mm.
The T6050 is the tractor of arable and mixed farms between 80 and 150 hectares that look for six-cylinder smoothness at moderate power; its successor is the T6.155 of the T6 range.
On used tractors, operating hours, the condition of engine and common-rail injection, transmission (Range Command clutches), front-axle suspension on Elite, hydraulics and electronics, cab and parts supply through CNH count.
Sources: SpecCodex register, model data: New Holland T6050, New Holland Agriculture (manufacturer)
Technical data
Engine
| Power | 126.7 hp (93.2 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 549 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,700.7 cm³correct |
| Aspiration | turbocharged/ air to air intercooledcorrect |
| Engine oil capacity | 15.1 lcorrect |
Dimensions and weights
| Length | 4,825 mmcorrect |
|---|---|
| Width | 2,450 mmcorrect |
| Height | 2,995 mmcorrect |
| Wheelbase | 2,652 mmcorrect |
| Unladen weight | 5,380 kgcorrect |
Drivetrain and chassis
| Gearbox | 16 V/16 R or 17 V/16 Rcorrect |
|---|---|
| Gearbox type | 18x6 Power Commandcorrect |
Working data
| Lifting capacity | 5,539 kgcorrect |
|---|---|
| Pump flow | 165 l/mincorrect |
| Fuel tank capacity | 300.2 lcorrect |
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO output | 105 hpcorrect |
| PTO speed | 540/540E/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 17.3 kW/t (93 kW / 5.4 t)
Power class: Large (100–180 hp)
Stronger than 77% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland T6050 Elite have?
The New Holland T6050 Elite delivers 127 hp.
How much does the New Holland T6050 Elite weigh?
The unladen weight is 5,380 kg.
What engine does the New Holland T6050 Elite have?
6 cylinders, 6,701 cm³ displacement.
What is the PTO output of the New Holland T6050 Elite?
PTO output is 105 hp. PTO speeds: 540/540E/1000 rpm.
How much does the rear linkage of the New Holland T6050 Elite lift?
The rear linkage lifts 5,539 kg.
What are the dimensions of the New Holland T6050 Elite?
4,825 mm × 2,450 mm × 2,995 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
