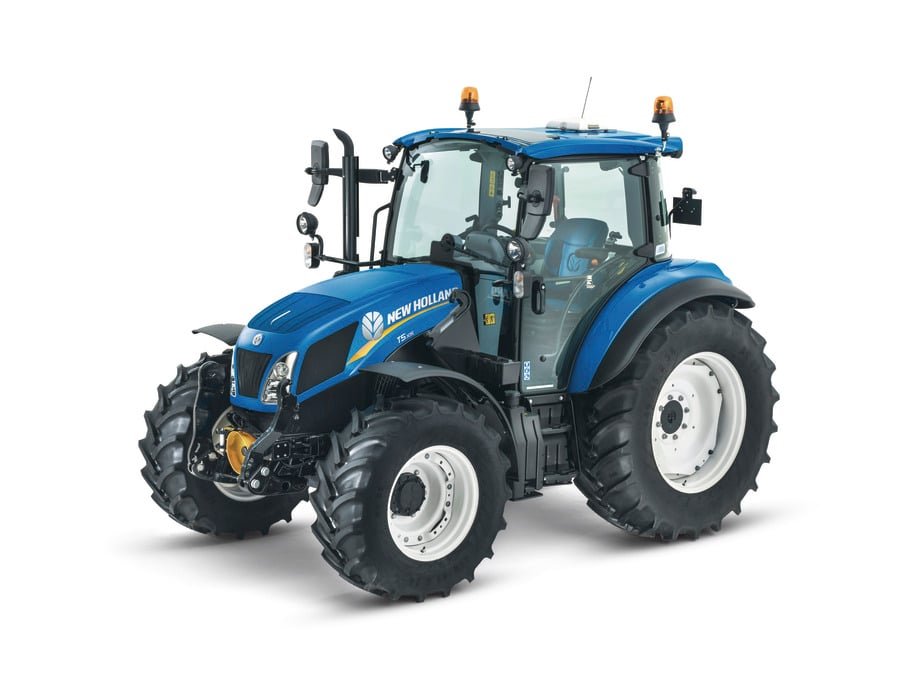

New Holland T5.105
Built: Year not documented · Series: T5
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland T5 – mid all-purpose class: model 120 and T5.105, four-cylinder of 3,400 cm³, 79 to 86 kW (107 to 117 hp), lift capacity 4,400 kg, gross weight 6,250 kg
The T5 range sits at New Holland between the compact T4 and the large T6/T7 class and follows the same naming scheme, in which the number after the dot gives the approximate power class, here T5.105 for about 105 hp. The plain designation 120 points to an earlier or different label within the same range.
Read on 4 more paragraphs
The register lists 2 versions with 79 to 86 kW (107 to 117 hp) from four-cylinder engines of 3,400 cm³, an unladen weight of 3,700 kg and a gross weight of 6,250 kg; lift capacity is 4,400 kg, length is 4,036 mm, width is 2,500 mm and the build height is a minimum of 2,569 mm, at a rated speed of 2,300 rpm.
As a mid all-purpose tractor the T5 meets the needs of mixed arable and livestock farms across Europe that need more power and lift capacity than the T4 class but not yet the size of the T6 and T7 ranges, for example for tillage, baler work, slurry transport and heavier front-loader duty in the daily routine of larger farms.
When buying used, check operating hours and the condition of clutch and gearbox, the tightness of hydraulics and lift, the condition of the cab suspension, PTO operation, and rust on the bodywork and frame; parts run through New Holland's wide dealer network.
New Holland belongs to the CNH Industrial group, which also includes the sister brand Case IH, reflected in the wide availability of parts even for older T5 models.
Sources: SpecCodex register, model data: New Holland T5, New Holland
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 107 hp (79 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,400 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,036 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Height | 2,569 mm (minimum)correct |
| Wheelbase | 4,000 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 3,700 kgcorrect |
| Gross vehicle weight | 6,250 kgcorrect |
Working data
| Lifting capacity | 4,400 kgcorrect |
|---|---|
| Fuel tank capacity | 160 lcorrect |
Where this model stands
Power-to-weight ratio: 21.4 kW/t (79 kW / 3.7 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland T5.105 have?
The New Holland T5.105 delivers 107 hp.
How much does the New Holland T5.105 weigh?
The unladen weight is 3,700 kg.
What is the gross vehicle weight of the New Holland T5.105?
6,250 kg.
What engine does the New Holland T5.105 have?
4 cylinders, 3,400 cm³ displacement, Diesel.
How much does the rear linkage of the New Holland T5.105 lift?
The rear linkage lifts 4,400 kg.
What are the dimensions of the New Holland T5.105?
4,036 mm × 2,500 mm × 2,569 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 20 individual figures for this model. They come from 4 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
