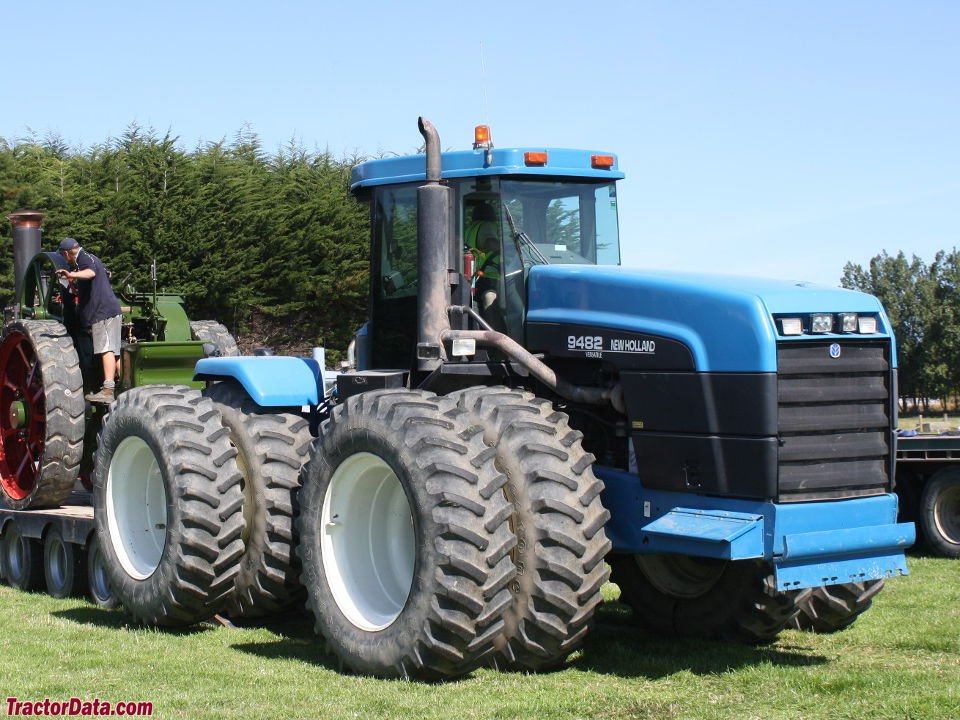

New Holland Versatile 9482
Built: 1997-1999 · Series: Versatile
Successor: Versatile 9484 →
More machines from model year 1997
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland Versatile – the articulated tractors from Winnipeg under the Ford New Holland flag (1987–2000): 9184 to 9884 with Cummins six-cylinders, the Bi-Directional 9030 and TV140, 76 to 317 kW
Versatile of Winnipeg, Manitoba, had built articulated four-wheel-drive tractors for the wheat fields of the Canadian prairie since 1966 and was taken over by Ford New Holland in 1987; until 2000 the tractors ran under the name New Holland Versatile, then New Holland sold the plant to Buhler Industries, which carries the Versatile brand to this day. The register shows the Ford New Holland years: the 9184 to 9884 are the articulated tractors of the 1990s, whose number logic orders the power class – 9282 and 9482 the smaller, 9682 to 9884 the big ones with Cummins N14 and M11 and up to 425 hp – powered by Cummins six-cylinders, as the register proves. The 9030 Bi-Directional and the TV140 and TV145 are Versatile's speciality: tractors with two directions of travel and a rotating operator station that work forwards as well as backwards and carry loader, mower or round baler at either end.
Read on 3 more paragraphs
The register lists 13 versions with 76 to 317 kW (102 to 425 hp) from six-cylinders – Cummins 6CTA 8.3, M11 and N14 in the articulated tractors, Ford and New Holland engines in the Bi-Directionals – at rated speeds of 2,100 to 2,200 rpm; the rear linkage lifts 5,897 kg.
The Bi-Directional layout, which Versatile has built since 1977, has remained without imitators: the operator turns the seat 180 degrees and has hydraulics at both ends – for livestock farms and municipalities a tractor that runs front loader and rear implement at the same time.
On used articulated tractors, operating hours, articulation joint, transmission and tyres count; on the Bi-Directionals the hydrostatic drive and the rotating mechanism of the operator station; parts come through Versatile in Winnipeg and Cummins.
Sources: SpecCodex register, model data: New Holland Versatile, Versatile (Buhler Industries, Rechtsnachfolger), Versatile (Wikipedia)
Technical data
Engine
| Engine make | Cumminscorrect |
|---|---|
| Engine model | M11-310correct |
| Fuel | dieselcorrect |
| Power | 310 hp (230 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 660 cu incorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 133 in (3378.2 mm)correct |
|---|---|
| Turning circle | 14.45 ftcorrect |
| Unladen weight | 18, 844 to 30, 000 lbscorrect |
Drivetrain and chassis
| Drive | four-wheel driveWDcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 4 (Quadra-Sync); 2 (Powershift)correct |
Working data
| Lifting capacity | 5,897 kgcorrect |
|---|---|
| Lifting capacity | 13000 lbs (5896.7 kg)correct |
| Fuel tank capacity | 245 galcorrect |
Origin and approval
| Plant | Winnipeg, Manitoba, Canadacorrect |
|---|
Other data
| Linkage category | Cat IV N/IIIcorrect |
|---|---|
| PTO speed | 1,000correct |
| Predecessor | Ford Versatile 9480correct |
| Successor | New Holland Versatile 9484correct |
Frequently asked questions
How much power does the New Holland Versatile 9482 have?
The New Holland Versatile 9482 delivers 310 hp.
What engine does the New Holland Versatile 9482 have?
6 cylinders, Diesel.
How much does the rear linkage of the New Holland Versatile 9482 lift?
The rear linkage lifts 5,897 kg.
When was the New Holland Versatile 9482 built?
Production years: 1997-1999.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
