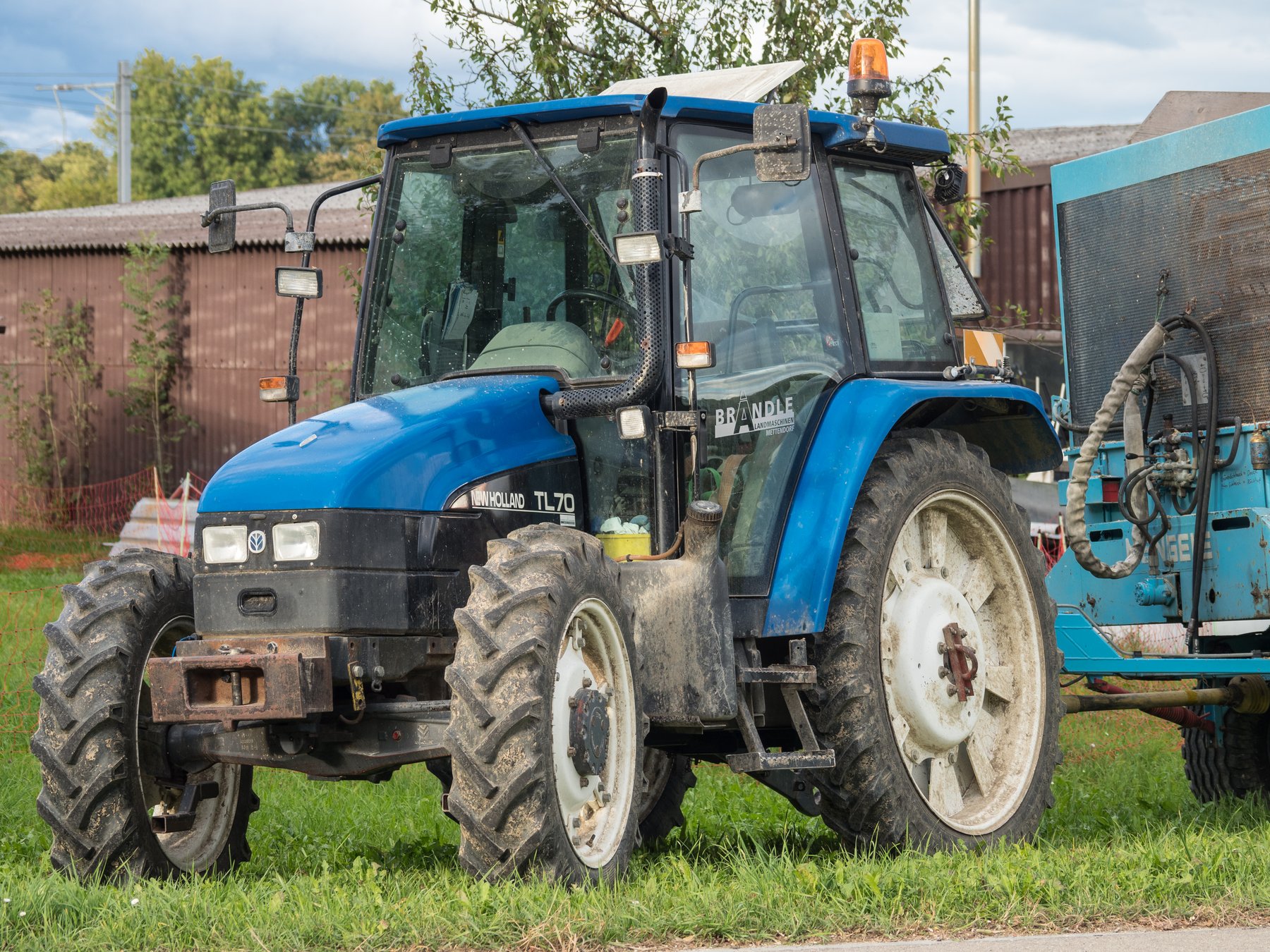

New Holland TL 70
Built: 1999 · Series: TL
More machines from model year 1999
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland TL – compact tractors from Jesi: type logic by horsepower, four-cylinder diesels, 48 to 74 kW between the TL 70 and TL 100 A
New Holland built the TL series in the 2000s at the Jesi plant in the Marche region of Italy, a historic site that had already produced tractors under the Fiatagri brand before passing to New Holland within CNH. The TL series positioned itself as a solid mid-range class below the larger T and TS series and was aimed at mixed farms with grassland and arable work as well as municipal use. The type designation gives the approximate rated output in horsepower: the TL 70 develops about 70 hp, the TL 90 about 90 hp, the TL 100 about 100 hp.
Read on 3 more paragraphs
The register lists here 7 versions with 48 to 74 kW (65 to 100 hp) from four-cylinders of 3,613 to 4,500 cm³, unladen weights from 3,210 to 4,250 kg at gross vehicle weights of 5,200 to 6,200 kg, lengths of 3,860 to 4,100 mm, widths of 2,020 to 2,550 mm and heights of 2,475 to 2,540 mm.
The TL series covered the mid-price segment in Europe and competed directly with entry-level models from Deutz-Fahr, Case IH and Massey Ferguson; as an all-purpose tractor for front loader, mowing and transport work it was common on smaller and medium-sized farms.
When buying used, what counts is operating hours, the condition of clutch and gearbox, the tightness of the hydraulics and rust on the wings and cab floor; the four-cylinder diesel engines are considered robust, and spare parts run through New Holland's CNH dealer network, which also covers older TL model years well.
Sources: SpecCodex register, model data: New Holland TL, New Holland (manufacturer)
Technical data
Engine
| Power | 65 hp (48 kW)correct |
|---|---|
| Rated speed | 2,500 rpmcorrect |
| Torque | 231 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 3,613 cm³correct |
Dimensions and weights
| Length | 3,860 mmcorrect |
|---|---|
| Width | 2,020 mmcorrect |
| Height | 2,475 mmcorrect |
| Unladen weight | 3,210 kgcorrect |
| Gross vehicle weight | 5,200 kgcorrect |
Drivetrain and chassis
| Gearbox | 20 V/12 R, 24 V/12 R and 24 V/24 Rcorrect |
|---|
Working data
| Fuel tank capacity | 115 lcorrect |
|---|
Other data
| Linkage category | Cat I/IIcorrect |
|---|---|
| PTO speed | 540/540E/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 15 kW/t (48 kW / 3.2 t)
Power class: Universal (40–100 hp)
Stronger than 45% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland TL 70 have?
The New Holland TL 70 delivers 65 hp.
How much does the New Holland TL 70 weigh?
The unladen weight is 3,210 kg.
What is the gross vehicle weight of the New Holland TL 70?
5,200 kg.
What engine does the New Holland TL 70 have?
4 cylinders, 3,613 cm³ displacement.
What are the dimensions of the New Holland TL 70?
3,860 mm × 2,020 mm × 2,475 mm.
When was the New Holland TL 70 built?
Production years: 1999.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 16 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
