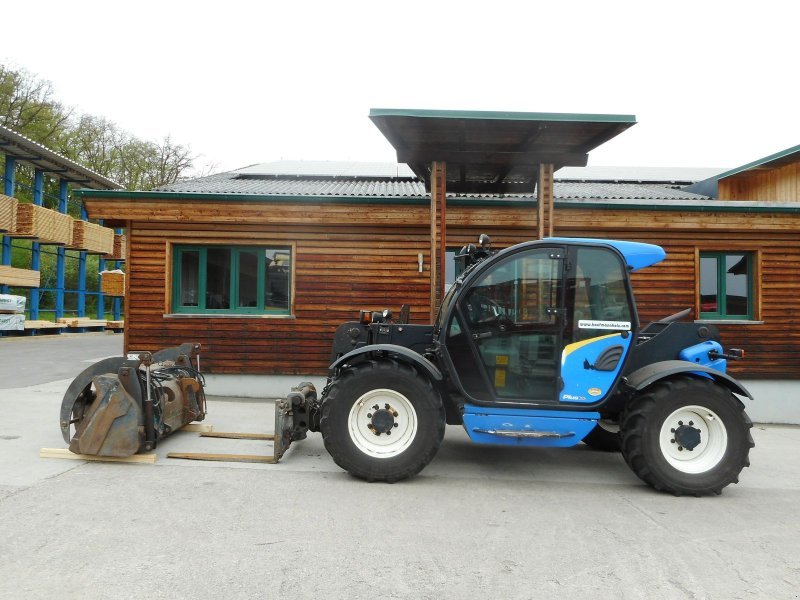

New Holland LM5040 (89.5 kW)
Series: New Holland Telescopic Forklift
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland telehandlers LM – from LM 415 A to LM 5080: lift height and capacity in the number, CNH NEF engines, Manitou origin of the early types, 56 to 90 kW
New Holland's telehandlers carry the code LM and are aimed at agriculture – stacking bales, mixing feed, loading manure, towing trailers – where the tractor maker sells them through its dealer network alongside the tractors. Three naming generations appear in the register: the LM 415 A to LM 445 A and the M 427, M 428 and M 459 of the early 2000s were built in cooperation with Manitou, the French telehandler specialist, and carry its design; the LM 1330 to LM 1745 from 2007 encode lift height and capacity in the name – an LM 1745 lifts about 4.5 t to 17 m, an LM 1330 about 3 t to 13 m – and the LM 5040 to LM 5080 from 2013 are the range with group engines of Stage IV, where the final digits order the capacity class. PS stands for powershift, A for the version with all-wheel steering.
Read on 3 more paragraphs
The register lists 19 versions with 55.9 to 89.5 kW from four-cylinders of 3,900 to 4,506 cm³ – CNH NEF 4.5 l in naturally aspirated and turbo form, an Iveco 8045 in the oldest types – at 2,200 rpm, torque from 320 to 515 Nm, service weights from 6,441 to 12,300 kg and heights from 2,390 to 2,610 mm.
The NEF engine is the same as in the New Holland T5 and T6 tractors, which lets farmers share parts and workshop knowledge; the sister models run at Case IH as the Farmlift.
On used machines, operating hours, wear of the boom wear pads, play in boom and rear-axle steering, the condition of hydraulic cylinders and tyres and the function of the load moment limiter are what count.
Sources: SpecCodex register, model data: New Holland Teleskoplader, New Holland (manufacturer)
Technical data
Engine
| Engine model | CNH NEF Tier III-F4BE0484Fcorrect |
|---|---|
| Power | 89.5 kWcorrect |
| Displacement | 4,501.5 cm³correct |
| Aspiration | Turbocharged, intercooledcorrect |
Dimensions and weights
| Height | 2,470 mmcorrect |
|---|---|
| Wheelbase | 2,990.1 mmcorrect |
| Ground clearance | 420.6 mmcorrect |
| Unladen weight | 7,200.8 kgcorrect |
Drivetrain and chassis
| Gearbox type | powershift transmissioncorrect |
|---|---|
| Forward gears | 4correct |
| Reverse gears | 3correct |
| Tyre size | 17.5LR24correct |
Working data
| Lift height | 6,100 mmcorrect |
|---|---|
| Pump flow | 140.1 l/mincorrect |
| Hydraulic pressure | 244.8 barcorrect |
More machines with this engine (CNH NEF Tier III-F4BE0484F, 2)
Where this model stands
Power-to-weight ratio: 12.4 kW/t (90 kW / 7.2 t)
Stronger than 72% of the telehandlers in the register — out of 661 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland LM5040 have?
The New Holland LM5040 delivers 89.5 kW.
How much does the New Holland LM5040 weigh?
The unladen weight is 7,201 kg.
What engine does the New Holland LM5040 have?
4,502 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
