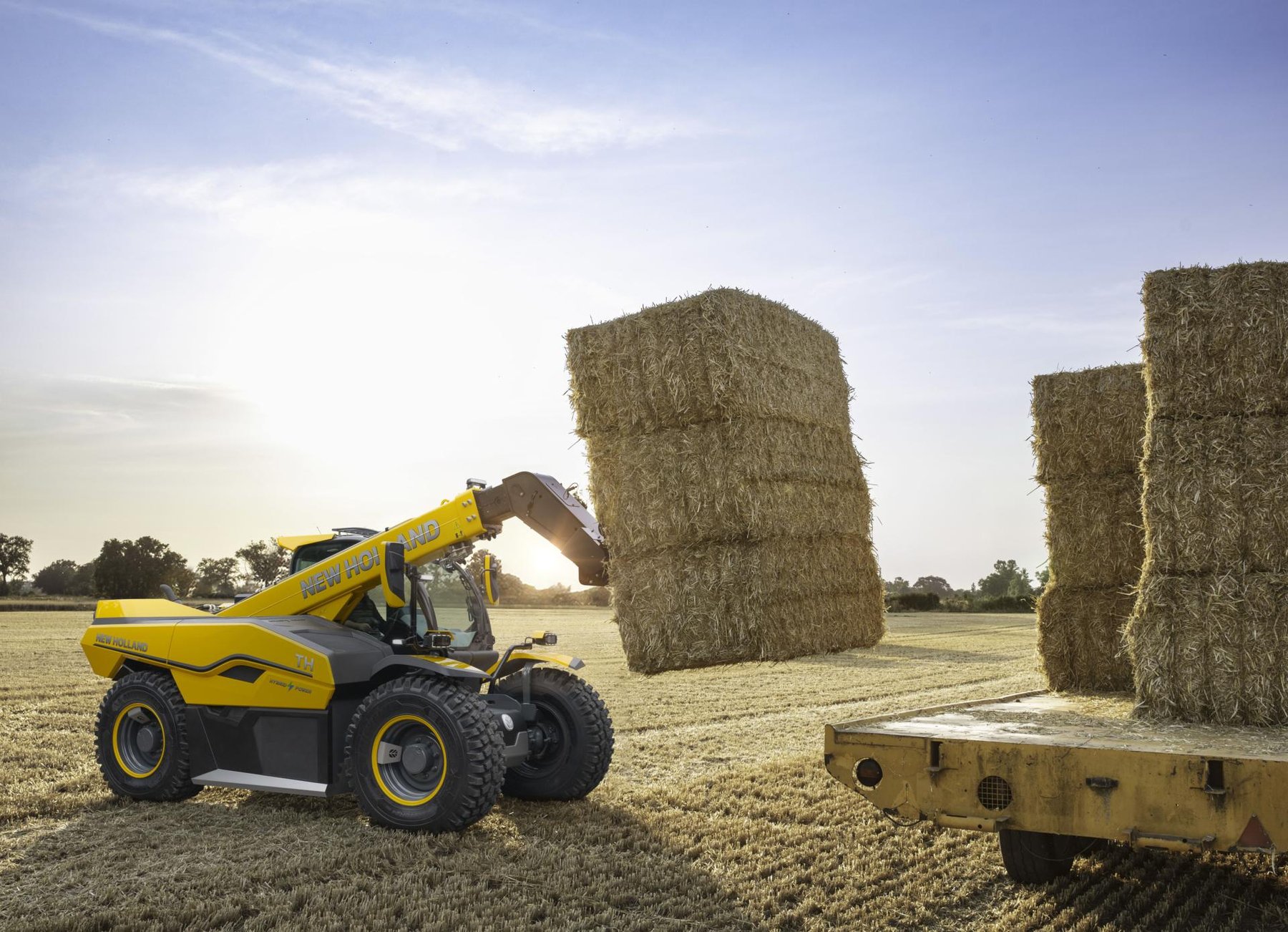

New Holland LM1745 – specifications
Series: New Holland Telescopic Forklift
The New Holland LM1745 belongs to the New Holland Telescopic Forklift series. The engine delivers 83.5 kW, with a displacement of 4,501.5 cm³. Torque is 480.1 Nm. The machine is 2,450 mm high. The unladen weight is 12,300 kg. The wheelbase measures 3,121.2 mm. The tank holds 135.1 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 115.1 l/min. The hydraulic tank holds 180.2 litres. Working pressure is 240 bar. Lift height is 16,240 mm. The engine fitted is the CNH 4TAA 4,5. Tyre size: 13,00 x 24. The New Holland Telescopic Forklift series covers 19 models. Rated output within it ranges from 55.9 to 89.5 kW; the LM1745 sits in the upper part of that range with 83.5 kW. Its immediate neighbours are the LM435A below it with 82 kW and the LM5040 above it with 89.5 kW. Unladen weight within it ranges from 6,441 to 12,300 kg; here the LM1745 sits at the top of that range with 12,300 kg. 1448 New Holland models across 71 series are on record.
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland telehandlers LM – from LM 415 A to LM 5080: lift height and capacity in the number, CNH NEF engines, Manitou origin of the early types, 56 to 90 kW
New Holland's telehandlers carry the code LM and are aimed at agriculture – stacking bales, mixing feed, loading manure, towing trailers – where the tractor maker sells them through its dealer network alongside the tractors. Three naming generations appear in the register: the LM 415 A to LM 445 A and the M 427, M 428 and M 459 of the early 2000s were built in cooperation with Manitou, the French telehandler specialist, and carry its design; the LM 1330 to LM 1745 from 2007 encode lift height and capacity in the name – an LM 1745 lifts about 4.5 t to 17 m, an LM 1330 about 3 t to 13 m – and the LM 5040 to LM 5080 from 2013 are the range with group engines of Stage IV, where the final digits order the capacity class. PS stands for powershift, A for the version with all-wheel steering.
Read on 3 more paragraphs
The register lists 19 versions with 55.9 to 89.5 kW from four-cylinders of 3,900 to 4,506 cm³ – CNH NEF 4.5 l in naturally aspirated and turbo form, an Iveco 8045 in the oldest types – at 2,200 rpm, torque from 320 to 515 Nm, service weights from 6,441 to 12,300 kg and heights from 2,390 to 2,610 mm.
The NEF engine is the same as in the New Holland T5 and T6 tractors, which lets farmers share parts and workshop knowledge; the sister models run at Case IH as the Farmlift.
On used machines, operating hours, wear of the boom wear pads, play in boom and rear-axle steering, the condition of hydraulic cylinders and tyres and the function of the load moment limiter are what count.
Sources: SpecCodex register, model data: New Holland Teleskoplader, New Holland (manufacturer)
Technical data
Engine
| Engine model | CNH 4TAA 4.5correct |
|---|---|
| Power | 83.5 kWcorrect |
| Torque | 480.1 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Displacement | 4,501.5 cm³correct |
| Aspiration | turbo aftercoolercorrect |
Dimensions and weights
| Height | 2,450 mmcorrect |
|---|---|
| Wheelbase | 3,121.2 mmcorrect |
| Unladen weight | 12,300 kgcorrect |
Drivetrain and chassis
| Gearbox type | powershift transmissioncorrect |
|---|---|
| Forward gears | 4correct |
| Reverse gears | 3correct |
| Tyre size | 13.00 x 24correct |
Working data
| Lift height | 16,240 mmcorrect |
|---|---|
| Pump flow | 115.1 l/mincorrect |
| Hydraulic oil capacity | 180.2 lcorrect |
| Hydraulic pressure | 240 barcorrect |
| Fuel tank capacity | 135.1 lcorrect |
Frequently asked questions
More machines with this engine (CNH 4TAA 4.5, 5)
Where this model stands
Power-to-weight ratio: 6.8 kW/t (84 kW / 12.3 t)
Stronger than 65% of the telehandlers in the register — out of 661 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
