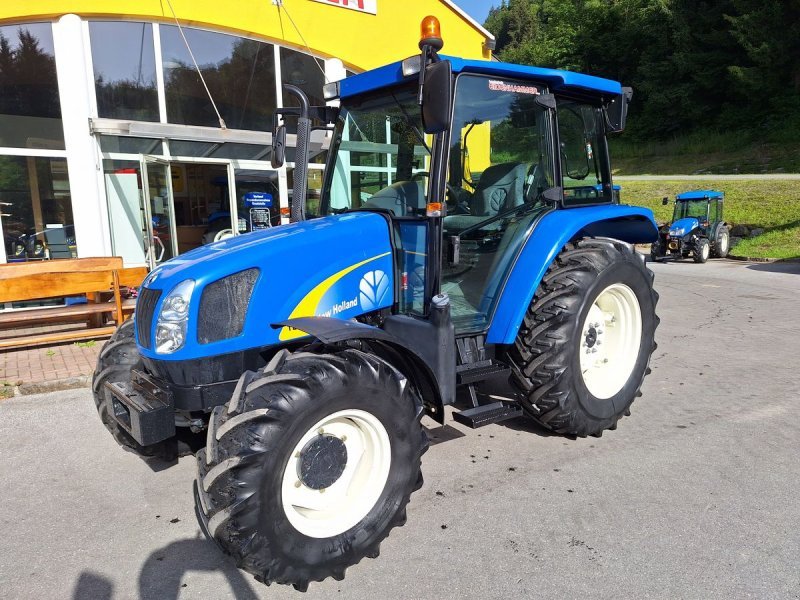

New Holland Geotech TL 70 (A)

Built: 1998–2004 · Series: TL-Baureihe

More machines from model year 1998

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The New Holland Geotech TL 70 (A) is a model in the TL series. Production: 1998–2004. The engine delivers 65 hp (47.8 kW), has 4 cylinders, with a displacement of 3,613 cm³. Torque is 231 Nm. Rated speed is 2,500 rpm. The machine is 4,280 mm long, 2,005 mm wide and 2,475 mm high. The unladen weight is 4,150 kg. The wheelbase measures 2,342 mm. Ground clearance is 380 mm. Top speed is 30 km/h. Transmission: 20 V/12 R, 24 V/12 R and 24 V/24 R. The engine is water-cooled. Tyres: front 7.50-16 ASF (A: 320/70 R 24 AS), rear 480/70 R 30 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 115 mm. The compression ratio is 17:1. Maximum torque is reached at 1,144 rpm. Construction: unit construction (no separate frame). The TL-Baureihe series covers 3 models. Rated output within it ranges from 65 to 95 hp; the TL 70 (A) sits at the bottom of that range with 65 hp. Its immediate neighbours are the TL 80 (A) above it with 75 hp. Unladen weight within it ranges from 3,765 to 4,150 kg; here the TL 70 (A) sits at the top of that range with 4,150 kg. 32 New Holland Geotech models across 8 series are on record.

New Holland Geotech TL range – mid-range tractors TL 70 to TL 100 from the Jesi plant, 48 to 70 kW, four-cylinder engines of 3,613 to 3,908 cm³

The Geotech TL range brings together New Holland's mid-range tractors TL 70, TL 80 and TL 100, built in the 1990s at the Jesi plant in Italy – the same site where Fiat had already built the group's mid-range and specialist tractors. The type number follows the logic common to Fiat and New Holland, roughly denoting the power class in hp, while the A suffix marks the four-wheel-drive version of each model.

Read on 3 more paragraphs

The register lists here 3 versions with 47.8 to 69.9 kW from four-cylinder engines of 3,613 to 3,908 cm³, torque from 231 to 332 Nm at 2,500 rpm, unladen weights from 3,765 to 4,150 kg, lengths from 4,280 to 4,430 mm, widths from 2,005 to 2,009 mm and heights from 2,475 to 2,550 mm.

In this power class the TL range competed in the mid-1990s with the mid-range tractors of Deutz-Fahr, Massey Ferguson, Case IH and Landini; as a versatile yard and field tractor it filled the gap between the brand's smaller compact models and its large field tractors, with a conventional cab and mechanically shifted transmission.

On a used TL, the condition of the clutch and shuttle transmission, the tightness of the hydraulics and PTO, rust on the wings, steps and chassis, and the condition of the cab seals and the simple electrics of this era all count; parts run through the New Holland network. A service history documenting regular oil, filter and hydraulic fluid changes is a good sign on a tractor of this age.

Sources: SpecCodex register, model data: New Holland Geotech TL-Baureihe, New Holland Agriculture (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	65 hp (47.8 kW)correct
Rated speed	2,500 rpmcorrect
Torque	231 Nmcorrect
Speed at max. torque	1,144 rpmcorrect
Cylinders	4correct
Displacement	3,613 cm³correct
Bore	100 mmcorrect
Stroke	115 mmcorrect
Compression ratio	17correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,280 mmcorrect
Width	2,005 mmcorrect
Height	2,475 mmcorrect
Wheelbase	2,342 mmcorrect
Ground clearance	380 mmcorrect
Unladen weight	4,150 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	20 V/12 R, 24 V/12 R and 24 V/24 Rcorrect
Front tyres	7.50-16 ASF (A: 320/70 R 24 AS)correct
Rear tyres	480/70 R 30 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 11.5 kW/t (48 kW / 4.2 t)

Power class: Universal (40–100 hp)

Stronger than 44% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the New Holland Geotech TL 70 (A) have?

The New Holland Geotech TL 70 (A) delivers 65 hp.

How much does the New Holland Geotech TL 70 (A) weigh?

The unladen weight is 4,150 kg.

What engine does the New Holland Geotech TL 70 (A) have?

4 cylinders, 3,613 cm³ displacement, Diesel.

How fast does the New Holland Geotech TL 70 (A) go?

Top speed is 30 km/h.

What are the dimensions of the New Holland Geotech TL 70 (A)?

4,280 mm × 2,005 mm × 2,475 mm.

When was the New Holland Geotech TL 70 (A) built?

Production years: 1998–2004.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
