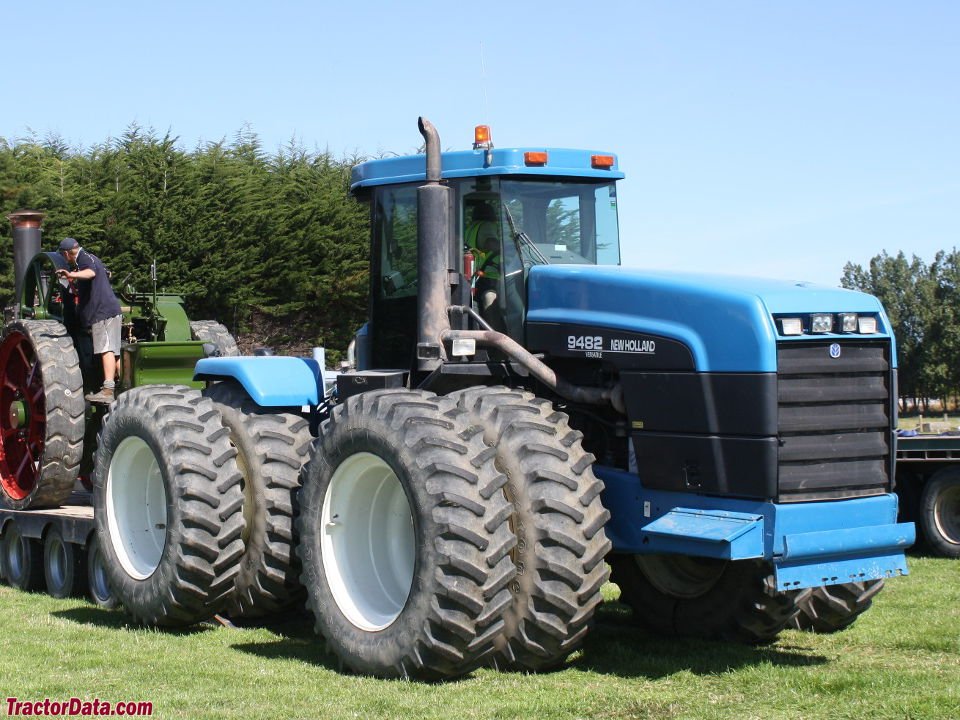

New Holland Geotech 9482

Built: 1995–1999 · Series: 82 er-Baureihe

More machines from model year 1995

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 9482, New Holland Geotech offers a model from the 82er series. Production: 1995–1999. The engine delivers 310 hp (228 kW), has 6 cylinders, with a displacement of 10,824 cm³. Torque is 1,222 Nm. Rated speed is 2,100 rpm. The machine is 6,756 mm long, 3,820 mm wide and 3,477 mm high. The unladen weight is 13,683 kg. The wheelbase measures 3,380 mm. Top speed is 30 km/h. Transmission: 12 V/4 R or 12 V/2 R. The engine is water-cooled. Tyres: front 20.8 R 42 AS, rear 20.8 R 42 AS. The fuel is diesel. The bore measures 125 mm. The stroke is 147 mm. The compression ratio is 16:1. Maximum torque is reached at 1,587 rpm. Construction: articulated frame. The 82 er-Baureihe series covers 4 models. Rated output within it ranges from 260 to 425 hp; the 9482 sits in the lower part of that range with 310 hp. Its immediate neighbours are the 9282 below it with 260 hp and the 9682 above it with 360 hp. Unladen weight within it ranges from 11,327 to 14,528 kg; here the 9482 sits in the upper part of that range with 13,683 kg. 32 New Holland Geotech models across 8 series are on record.

New Holland Geotech 82 series – large tractors 9282 to 9882: six-cylinders with 8.3 to 14-litre displacement, 191 to 313 kW and up to 14,528 kg unladen weight

The Geotech 82 series forms the top power class of New Holland's large tractors, covering the 9282, 9482, 9682 and 9882 types; the register name, like the smaller 60 and 70 series, dates from New Holland's merger era in the 1990s. All four models carry six-cylinder diesel engines whose displacement rises with the power step.

Read on 3 more paragraphs

The register lists 4 versions with 191.2 to 312.6 kW from six-cylinders with 8,268 to 14,039 cm³ displacement. Unladen weights range from 11,327 to 14,528 kg at a uniform length of 6,756 mm, uniform width of 3,820 mm and uniform height of 3,477 mm; torque lies between 1,011 and 1,802 Nm at rated speeds of 2,100 to 2,200 rpm.

With outputs above 300 kW, the Geotech 82 series counts among the largest field tractors of its time, designed for large farms with very high draft-power needs, such as tillage with wide cultivators on large field areas, competing with comparable large tractors from Case IH and John Deere. It is used mainly for tillage, sowing, transport work and powering trailed harvesting machinery.

When buying used, the operating hours on the six-cylinder, the condition of the lift hydraulics, the tightness of turbocharger and cooling system, and wear on the axles and wide tyres all matter. Spare parts run through the New Holland dealer network. It is also worth checking the on-board electronics, cab mounting and seat suspension, and tyre tread depth.

Sources: SpecCodex register, model data: New Holland Geotech 82er-Baureihe, New Holland Agriculture (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	310 hp (228 kW)correct
Rated speed	2,100 rpmcorrect
Torque	1,222 Nmcorrect
Speed at max. torque	1,587 rpmcorrect
Cylinders	6correct
Displacement	10,824 cm³correct
Bore	125 mmcorrect
Stroke	147 mmcorrect
Compression ratio	16correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	6,756 mmcorrect
Width	3,820 mmcorrect
Height	3,477 mmcorrect
Wheelbase	3,380 mmcorrect
Unladen weight	13,683 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	12 V/4 R or 12 V/2 Rcorrect
Front tyres	20.8 R 42 AScorrect
Rear tyres	20.8 R 42 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	articulated framecorrect

Where this model stands

Power-to-weight ratio: 16.7 kW/t (228 kW / 13.7 t)

Power class: Heavy (> 180 hp)

Stronger than 97% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the New Holland Geotech 9482 have?

The New Holland Geotech 9482 delivers 310 hp.

How much does the New Holland Geotech 9482 weigh?

The unladen weight is 13,683 kg.

What engine does the New Holland Geotech 9482 have?

6 cylinders, 10,824 cm³ displacement, Diesel.

How fast does the New Holland Geotech 9482 go?

Top speed is 30 km/h.

What are the dimensions of the New Holland Geotech 9482?

6,756 mm × 3,820 mm × 3,477 mm.

When was the New Holland Geotech 9482 built?

Production years: 1995–1999.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
