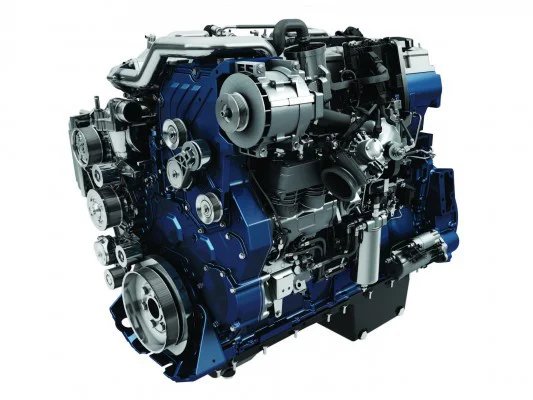

Navistar A300

Built: 2012-2014 · Series: Other models

More machines from model year 2012

Source: satu.kz

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The A300 comes from Navistar. Production: 2012-2014. The fuel is diesel. The rated output is 223.7 kW. Application: LHDD. The engine is two-stage turbocharged. Fuel reaches the combustion chamber through electronically controlled direct injection. It is a diesel engine. Rated output across the Navistar range ranges from 149.1 to 410.1 kW; the A300 sits in the lower part of that range with 223.7 kW. Its immediate neighbours are the A285 below it with 212.5 kW and the A310 above it with 231.2 kW. 103 Navistar models across 54 series are on record.

Navistar Heavy Duty – other on-highway engines: the collective page of the A range outside the named models, EPA certification data from the MaxxForce era 2012 to 2016, 200 to 550 kW for International trucks

Navistar, headquartered in Lisle, Illinois, operated until the majority takeover by Volkswagen subsidiary Traton in 2021 as International Truck and Engine Corporation, an independent maker of heavy trucks under the International brand. This page gathers the on-highway engines from the US EPA certification data that the register could not assign to a named range; every model designation from A200 to A450MT belongs to the A range, and the engine-family codes consistently contain the manufacturer code NVX. The 2012 to 2016 model years fall in the period when Navistar still developed its own truck engines under the MaxxForce name, before the group switched to Cummins engines in 2017 because of problems with its own exhaust aftertreatment approach.

Read on 3 more paragraphs

The register lists here 45 versions with 200 to 550 kW rated output at 1,600 to 2,600 rpm, with electronic direct injection and diesel as fuel. Maximum torque ranges from 540 to 1,850 Nm at speeds of 900 to 1,600 rpm.

The A range covered the heavy and medium-heavy truck segment of Navistar's International models and competed directly with Cummins, Detroit and PACCAR MX engines; the well-known series problems with the in-house exhaust-treatment approach in this era are among the reasons Navistar later abandoned its own engine programme and, as part of Traton today, again relies on outside engines.

On a used purchase from these model years, what matters especially is the service history of the exhaust aftertreatment and any modifications made, the condition of the injection system and turbocharger, the cooling system and charge-air cooler, and matching the engine-family code to the unit actually fitted; spares run through the International/Navistar dealer network.

Sources: SpecCodex register, model data: Navistar Heavy Duty (weitere Straßenmotoren, EPA-Zertifizierungsdaten), Navistar (manufacturer)

Technical data

Engine

Engine codeN104, N116; A300correct
Engine familyCNVXH03900GA; DNVXH03900GAcorrect
Engine familiesCNVXH03900GA; DNVXH03900GAcorrect
Fueldieselcorrect
Rated output223.7 kW (= 300 bhp)correct
Rated speed2,600 rpmcorrect
Maximum torque660 ft·lbfcorrect
Speed at max. torque1,600 rpmcorrect
Operating cycledieselcorrect
Injectionelectronic direct injectioncorrect
Aspirationtwo-stage turbocorrect

Origin and approval

Built from2012correct
Built to2013correct
Model year from2012correct
Model year to2015correct

Other data

ApplicationLHDDcorrect

Frequently asked questions

How much power does the Navistar A300 have?

The Navistar A300 delivers 224 kW.

When was the Navistar A300 built?

Production years: 2012-2014.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →

Other models in this series

Sources: US EPA — engine certification data (retrieved August 2026) · How we check the data

Diesel engine in 3D section

Turn the model, look inside and click an assembly — each one is explained.

Parts for this engine (105)

Manufacturer part numbers from the official EPA documentation. No prices or availability — those come from the supplier.

Part number Description Manufacturer
1870825C1 AFT temp Navistar
70814221 AFT temp Navistar
7081422C1 AFT temp Navistar
70814231 AFT temp Navistar
7081423C1 AFT temp Navistar
70814241 AFT temp Navistar
7081424C1 AFT temp Navistar
70814251 AFT temp Navistar
7081425C1 AFT temp Navistar
70814261 AFT temp Navistar
7081426C1 AFT temp Navistar
1874221C1 Breather Navistar
7085773C92 CC Breather Navistar
1885681C2 Charge air cooler Navistar
1886984C2 Crankcase Breather Navistar
7085773C91 Crankcase Breather Navistar
708577C91 Crankcase Breather Navistar
1838776C1 Crankshaft Position Navistar
3626432C1 DPF delta press Navistar
3006201C1 Doser injector Navistar
3006082C1 Doser metering Navistar
1890993C1 Doser module Navistar
7085804C1 Doser module Navistar
1881018C2 ECM / Motorsteuergerät Navistar
1881018C3 ECM / Motorsteuergerät Navistar
1887351C1 ECM / Motorsteuergerät Navistar
1887351C2 ECM / Motorsteuergerät Navistar
7091549C1 ECM / Motorsteuergerät Navistar
7091549C3 ECM / Motorsteuergerät Navistar
EFRC 5121 ECM / Motorsteuergerät Navistar
PAL2XBR0 ECM / Motorsteuergerät Navistar
PAL2XBR1 ECM / Motorsteuergerät Navistar
PAR2DPR0 ECM / Motorsteuergerät Navistar
PAR2EABa, PAW2EABa ECM / Motorsteuergerät Navistar
PAR2EER1, PAW2EER1 ECM / Motorsteuergerät Navistar
PAR2EER4, PAW2EER4 ECM / Motorsteuergerät Navistar
PAR2EER5, PAW2EER5 ECM / Motorsteuergerät Navistar
PAR2EGR1,PAW2EGR1 ECM / Motorsteuergerät Navistar
PBL2XBR0 ECM / Motorsteuergerät Navistar
PBL2XBR1 ECM / Motorsteuergerät Navistar
PBR2DPR0 ECM / Motorsteuergerät Navistar
PBR2EABa, PBW2EABa ECM / Motorsteuergerät Navistar
PBR2EER1, PBW2EER1 ECM / Motorsteuergerät Navistar
PBR2EER4, PBW2EER4 ECM / Motorsteuergerät Navistar
PBR2EER5, PBW2EER5, ECM / Motorsteuergerät Navistar
PBR2EGR1, PBW2EGR1 ECM / Motorsteuergerät Navistar
PML2XBR0 ECM / Motorsteuergerät Navistar
PML2XBR1 ECM / Motorsteuergerät Navistar
PMR2DPR0 ECM / Motorsteuergerät Navistar
PMR2EABa, PMW2EABa ECM / Motorsteuergerät Navistar
PMR2EER1, PMW2EER1 ECM / Motorsteuergerät Navistar
PMR2EER4, PMW2EER4 ECM / Motorsteuergerät Navistar
PMR2EER5, PMW2EER5 ECM / Motorsteuergerät Navistar
PMR2EGR1, PMW2EGR1 ECM / Motorsteuergerät Navistar
PRS24LR0 ECM / Motorsteuergerät Navistar
PTL2XBR0 ECM / Motorsteuergerät Navistar
PTL2XBR1 ECM / Motorsteuergerät Navistar
PTR2DPR0 ECM / Motorsteuergerät Navistar
PTR2EABa ECM / Motorsteuergerät Navistar
PTR2EER1 ECM / Motorsteuergerät Navistar
PTR2EER4 ECM / Motorsteuergerät Navistar
PTR2EER5 ECM / Motorsteuergerät Navistar
PTR2EGR1, PTW2EGR1 ECM / Motorsteuergerät Navistar
PTW2EABa ECM / Motorsteuergerät Navistar
PTW2EER1 ECM / Motorsteuergerät Navistar
PTW2EER4 ECM / Motorsteuergerät Navistar
PTW2EER5 ECM / Motorsteuergerät Navistar
same but ECM / Motorsteuergerät Navistar
1886655C3 EGR Cooler Navistar
1886655C4 EGR Cooler Navistar
1886655C5 EGR Cooler Navistar
1891001C2 EGR Cooler Navistar
7082870C2 EGR Cooler Navistar
1881382C4 EGR Valve Navistar
1890996C1 EGR Valve Navistar
1890996C2 EGR Valve Navistar
1883107C1 Einspritzpumpe Navistar
1870271C1 Exh. gas temp Navistar
1898911C1 Exhaust Back Navistar
1898911C2 Exhaust Back Navistar
7092510C1 Exhaust Back Navistar
7092510C2 Exhaust Back Navistar
1846480C2 Exhaust press Navistar
1891462C93 Exhaust press 2 Navistar
7088657C91 Exhaust press 2 Navistar
1885046C2 HP Pump Navistar
3032831C1 HP Pump Navistar
1875786C2 ICP Navistar
1875786C3 ICP Navistar
1881095C2 ICPR Valve Navistar
1883110C2 Injektor Navistar
1890056C1 Injektor Navistar
1890056C2 Injektor Navistar
1854209C2 Int. man. press Navistar
1878149C3 Intake Throttle Navistar
1878149C2 Intake throttle Navistar
1872340C2 MAF/IAT sensor Navistar
1838782C1 Oil/Coolant temp Navistar
1889568C2 (LP) Turbolader Navistar
1889568C2,3 (LP) Turbolader Navistar
1889568C3 (LP) Turbolader Navistar
HP 1891393C1 Turbolader Navistar
LP 1891335C3 Turbolader Navistar
1890261C91 Wastegate Actuator Navistar
1838775C2 crank position Navistar

Source: 2012 Model Year On-Highway Heavy-Duty Engine Certification Data
