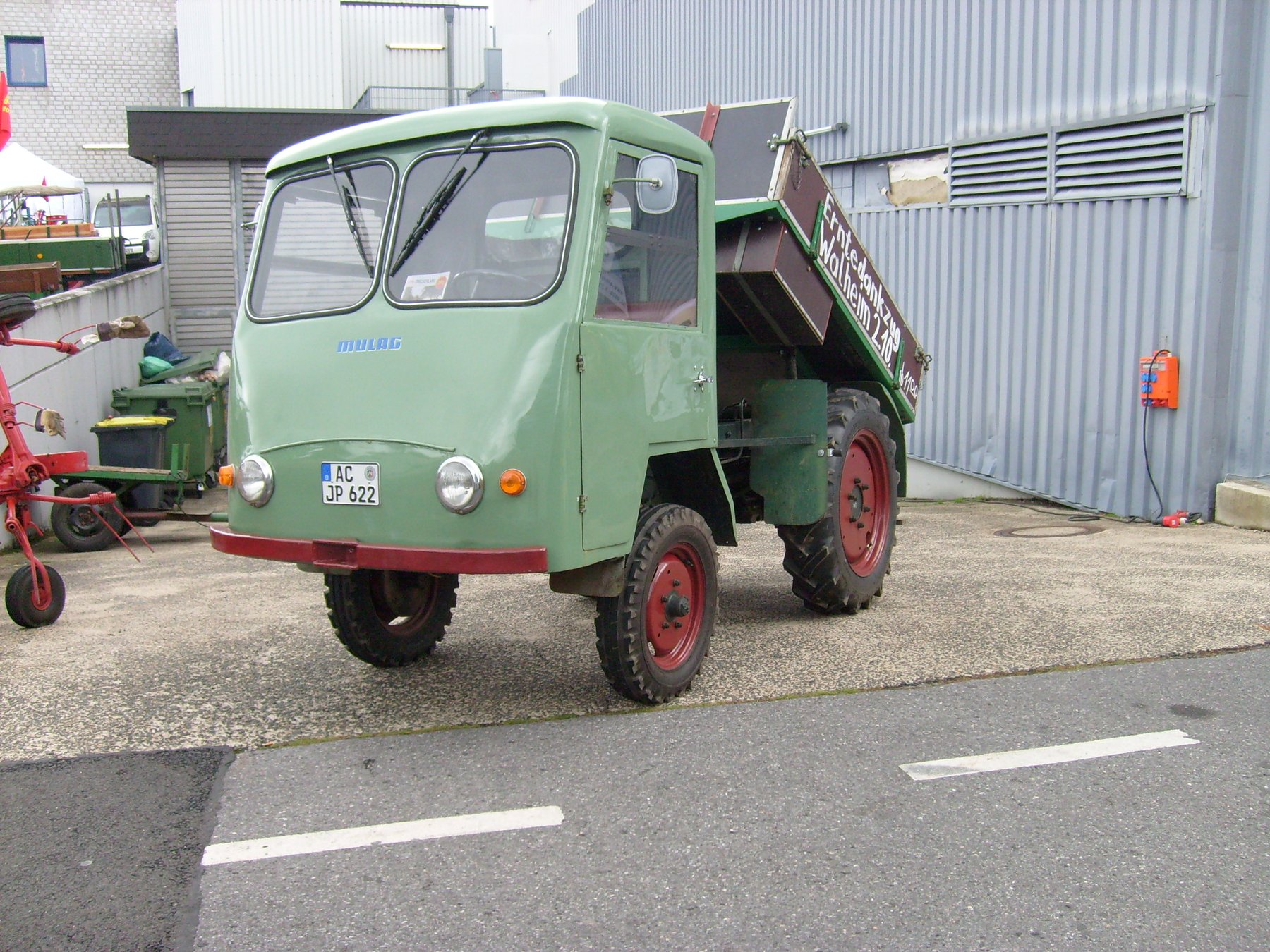

Mulag MD 22
Built: 1959 · Series: MD
More machines from model year 1959
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Mulag MD – carrier vehicles for municipal and embankment mowing technology from Oppenau in the Black Forest: 14-4 and MD 22, 1 to 2 cylinders, 660 to 1,145 cm³
Mulag, based in Oppenau in the Black Forest, specialises in municipal and embankment mowing technology and also built its own small carrier vehicles for this purpose. The MD series with the 14-4 and MD 22 models belongs to these compact carrier tractors, which served as the base for mower booms and other implements on roadside verges and embankments.
Read on 3 more paragraphs
The register lists 2 versions here with 1 to 2 cylinders and 660 to 1,145 cm³ displacement, at speeds of up to 3,000 revolutions per minute. Kerb weights range from 1,050 to 1,430 kg, lengths from 3,500 to 3,600 mm, widths from 1,430 to 1,540 mm and heights from 1,970 to 2,020 mm.
For maintaining road embankments and municipal green spaces, the compact, manoeuvrable design of Mulag's carrier vehicles was decisive, allowing work in spots barely accessible to larger standard tractors. Mulag thereby still occupies a niche between the classic farm tractor and a purely municipal machine.
When buying used, the power take-off, mounting interfaces for mower booms and the hydraulic supply deserve particular attention, since these carrier vehicles usually ran continuously with implements attached. Cooling and clutch merit attention given the frequent short-distance and standing loads; spare parts are sourced from workshops specialising in municipal equipment.
Sources: SpecCodex register, model data: Mulag MD, Mulag (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 22 hpcorrect |
| Power | 22 hpcorrect |
| Rated speed | 3,000 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,145 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,600 mmcorrect |
|---|---|
| Width | 1,540 mmcorrect |
| Height | 1,970 mmcorrect |
| Wheelbase | 1,650 mmcorrect |
| Unladen weight | 1,430 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6v/1rcorrect |
| Front tyres | 5.50-16 AScorrect |
| Rear tyres | 9.00-24 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | Kleintransportercorrect |
|---|---|
| Units built | ca. 20correct |
Where this model stands
Power-to-weight ratio: 11.3 kW/t (16 kW / 1.4 t)
Power class: Compact (< 40 hp)
Stronger than 9% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Mulag MD 22 have?
The Mulag MD 22 delivers 22 hp.
How much does the Mulag MD 22 weigh?
The unladen weight is 1,430 kg.
What engine does the Mulag MD 22 have?
2 cylinders, 1,145 cm³ displacement, Diesel.
How fast does the Mulag MD 22 go?
Top speed is 30 km/h.
What are the dimensions of the Mulag MD 22?
3,600 mm × 1,540 mm × 1,970 mm.
When was the Mulag MD 22 built?
Production years: 1959.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
