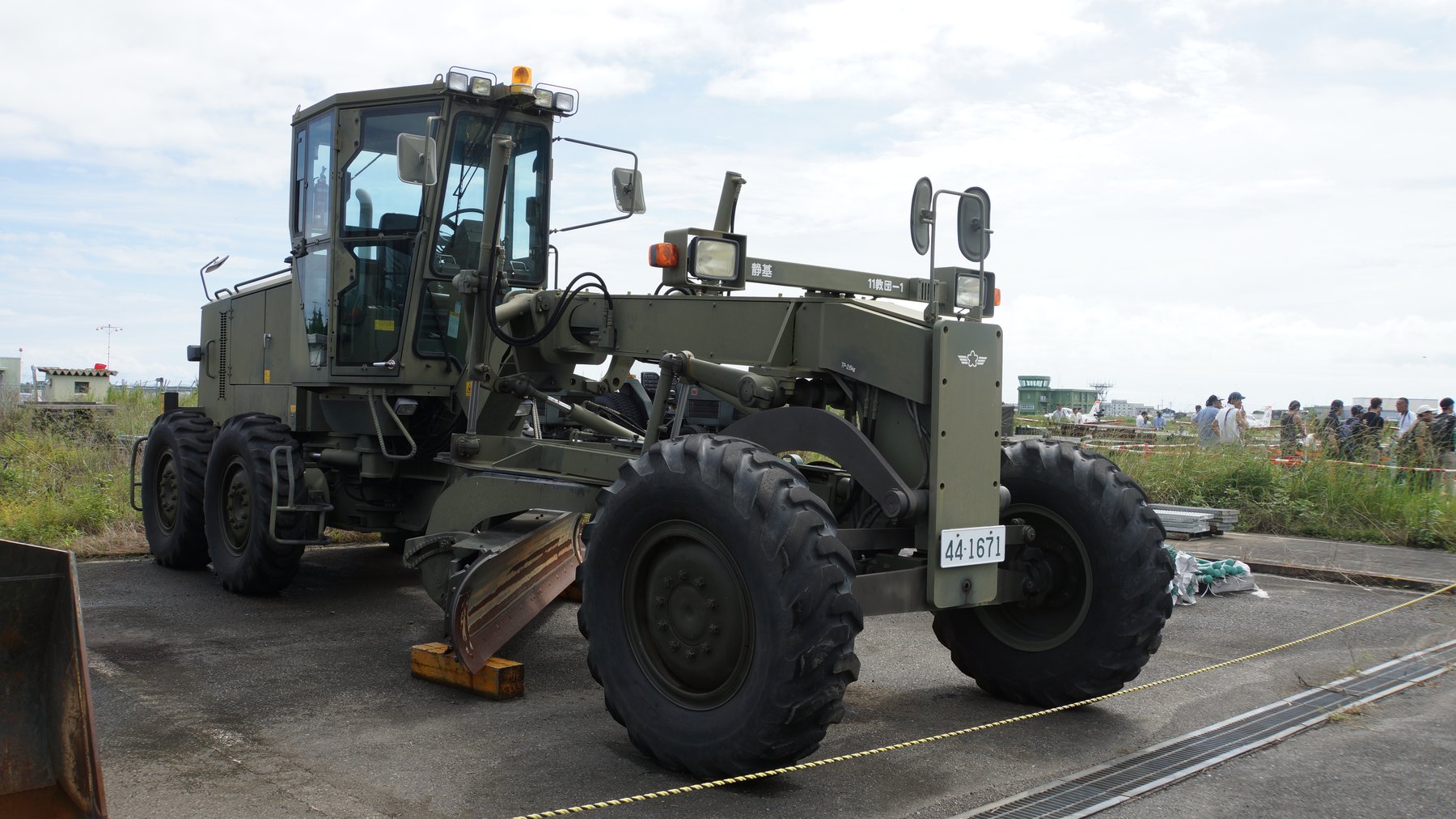

Mitsubishi MG130-E

Series: Mitsubishi Motor Grader

Source: https://commons.wikimedia.org/wiki/File:JASDF_Motor_Grader(M

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The MG130-E from Mitsubishi is part of the Mitsubishi Motor Grader series. The engine delivers 96.3 hp, has 4 cylinders, with a displacement of 4,249.2 cm³. Rated speed is 2,300 rpm. The wheelbase measures 4,901.2 mm. Ground clearance is 487.7 mm. The tank holds 115.1 litres. The hydraulic tank holds 67 litres. The electrical system runs on 24 V. The engine fitted is the SK4-T. Tyre size: 10,00-20-12. The Mitsubishi Motor Grader series covers 13 models. Rated output within it ranges from 96.3 to 212.9 hp; the MG130-E sits at the bottom of that range with 96.3 hp. Its immediate neighbours are the MG230-E above it with 116.6 hp. 1213 Mitsubishi models across 24 series are on record. The model is listed under Motor graders. 13 verified figures from 1 source are on file.

Technical data

Engine

Engine modelSK4-Tcorrect
Power96.3 hpcorrect
Rated speed2,300 rpmcorrect
Cylinders4correct
Displacement4,249.2 cm³correct

Dimensions and weights

Length6,912.9correct
Wheelbase4,901.2correct
Ground clearance487.7correct

Drivetrain and chassis

Gearbox typeplanetarycorrect
Tyre size10.00-20-12correct
System voltage24 Vcorrect

Working data

Hydraulic oil capacity67 lcorrect
Fuel tank capacity115.1 lcorrect

Frequently asked questions

How much power does the Mitsubishi MG130-E have?

The Mitsubishi MG130-E delivers 96.3 hp.

What engine does the Mitsubishi MG130-E have?

4 cylinders, 4,249 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
