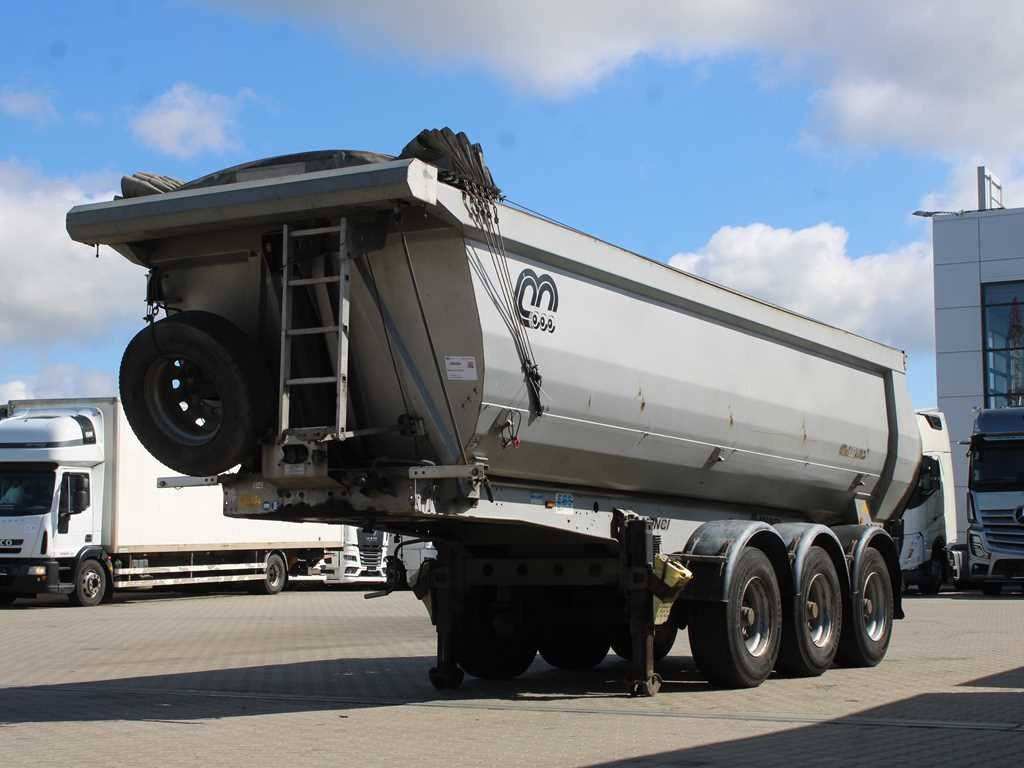

Menci SA700 R
Built: 2007 · Series: Other models
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Menci – other models: tipping semi-trailers outside the named ranges, SA and SL type series from SA700R to SL105, gross weight 36 to 42 t
This page gathers the semi-trailers listed in the vehicle register under the name Menci that could not be assigned to a named range. Menci is an Italian maker of tipping semi-trailers; the core of the model list is formed by the SA type series with the steps SA700R, SA740R, SA743R, SA850R and SA950R and the SL series with SL105. With gross weights from 36 to 42 tonnes, all the semi-trailers listed here fall into class O4, the heavy semi-trailers.
Read on 3 more paragraphs
The register lists here 13 versions with unladen weights from 5,500 to 8,930 kg, gross weights from 36,000 to 42,000 kg, lengths from 8,400 to 14,000 mm and widths from 2,500 to 2,550 mm.
Tipping semi-trailers of this type carry bulk material such as gravel, sand, soil or bulk agricultural goods and are unloaded via a hydraulic tipping body; such semi-trailers are widespread above all in the construction and agricultural trades of southern Europe, where they suit short runs with frequent loading and unloading. The tipping body is usually made of reinforced steel plate able to withstand wear from sharp-edged bulk material.
When buying used, check the tightness of the tipping body and the condition of the hydraulic rams, the axles, brakes and air suspension, the condition of the kingpin and fifth-wheel plate, and rust on the body and frame girders, which are heavily stressed by bulk-material operation. The seals of the rear tailgate, through which the load is discharged, are also worth assessing.
Sources: SpecCodex register, model data: Menci (weitere Modelle)
Technical data
Dimensions and weights
| Length | 8,500 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Wheelbase | 5,900 mmcorrect |
| Unladen weight | 6,120 kgcorrect |
| Gross vehicle weight | 36,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Menci SA700 R weigh?
The unladen weight is 6,120 kg.
What is the gross vehicle weight of the Menci SA700 R?
36,000 kg.
Up to what speed is the Menci SA700 R approved?
Approved up to 100 km/h.
What are the dimensions of the Menci SA700 R?
8,500 mm × 2,500 mm.
When was the Menci SA700 R built?
Production years: 2007.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
