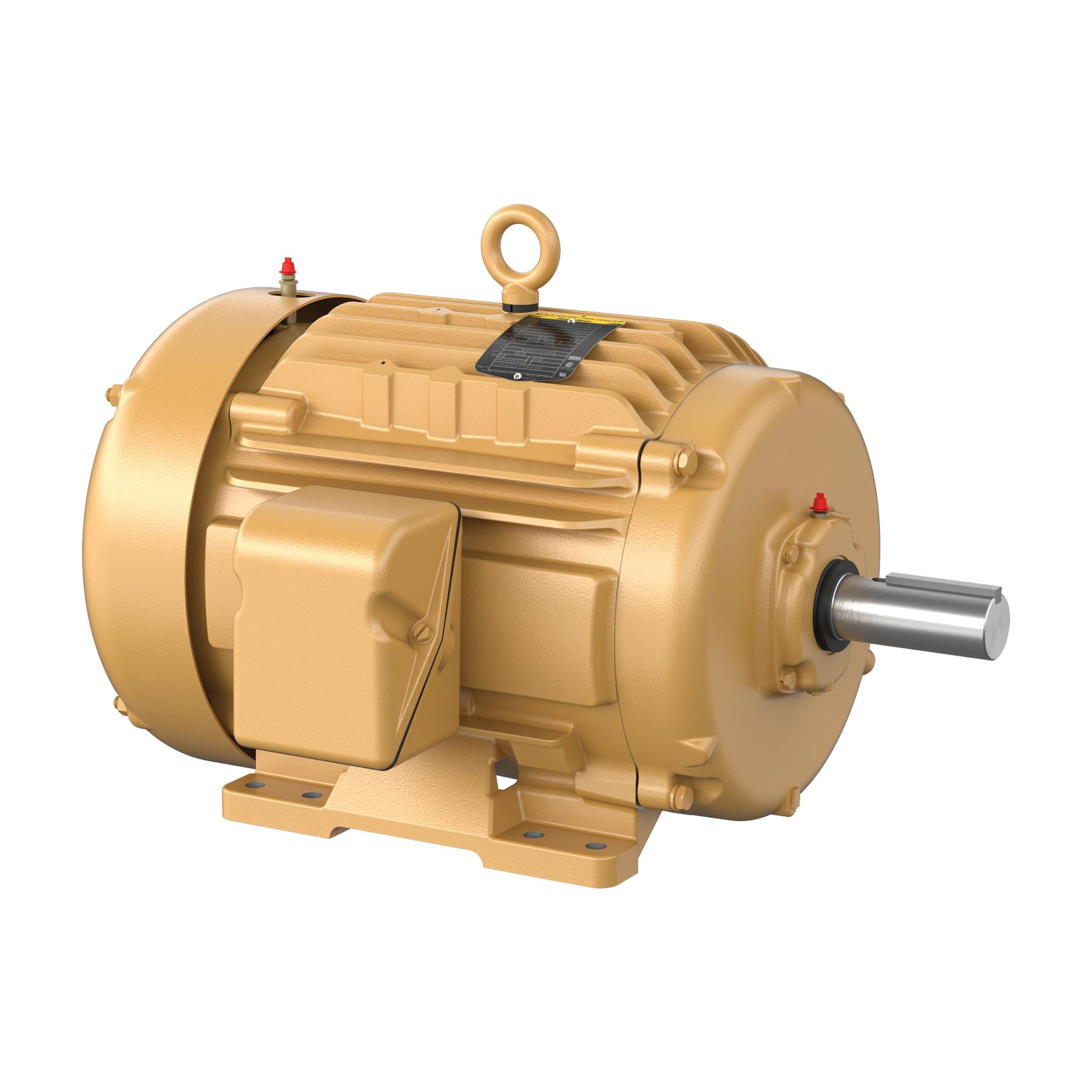

Mechtric JL3 100L2-4
Series: JL3
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Mechtric JL3 – three-phase motor, frame sizes 80 to 100: four-pole, 0.75 to 3 kW, IP55/IP65 protection, MEPS-registered with a universal mounting code
JL3 is a three-phase motor range registered under the Mechtric brand to Australia's GEMS/MEPS energy efficiency standard. The five versions listed cover frame sizes 80, 90 and 100, each with a suffix S1, L1, L2 or the plain frame designation 802-4 in the type name; all variants are four-pole.
Read on 3 more paragraphs
The register lists five versions with 0.75 to 3 kW rated output, four poles throughout, and an efficiency span of 81 to 87.58% at full load and 82.55 to 88.42% at 75% load. Protection ranges from IP55 to IP65, frame size from 80 to 100. Manufacturing takes place in China, tested under the 2019 GEMS determination for three-phase motors, using test method A throughout. The mounting code covers practically the whole IEC spectrum across all five versions, from foot forms B3 and B5, through flange forms B14, B34 and B35, to vertical forms V1, V3, V5, V6, V15, V18 and V36.
With this breadth of mounting options, the JL3 motors are designed as versatile small drives that can be adapted to pumps, fans, conveyor belts or other light industrial applications without changing range, depending on whether foot, flange or vertical mounting is needed.
When buying used or swapping, check bearing condition, insulation resistance of the winding, visible overheating traces on the terminal box and fan cover, and a legible nameplate showing frame size, protection class and efficiency value. Given the wide choice of mounting codes, it is worth checking before purchase which of the many bolt patterns actually fits the installation point.
Sources: SpecCodex register, model data: Mechtric JL3
Technical data
Engine
| Rated output | 3 kWcorrect |
|---|
Electrical data
| Rated voltage | 415 Vcorrect |
|---|---|
| Number of poles | 4correct |
| Protection class | IP55, IP65correct |
| Frame size | 100 L2 (foot)correct |
| Mounting (IEC 60034-7) | B3, B5, B6, B7, B8, B14, B34, B35, V1, V3, V5, V6, V15, V18, V36correct |
| Efficiency at full load | 87.58 %correct |
| Efficiency at 75 % load | 88.42 %correct |
| Efficiency at half load | 87.87 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the Mechtric JL3 100L2-4 have?
The Mechtric JL3 100L2-4 delivers 3 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
