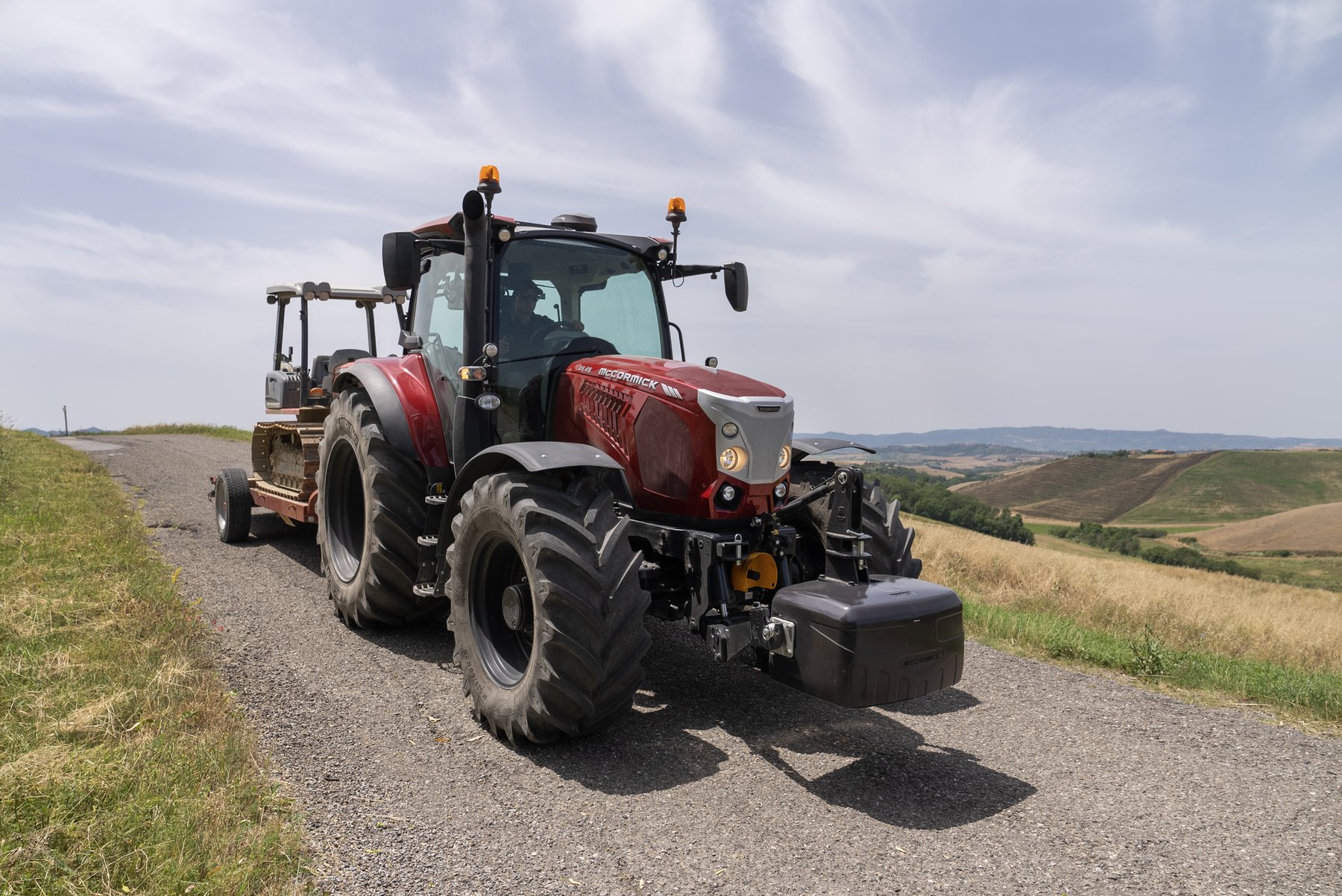

McCormick X6.45

Built: 2018 · Series: X6

More machines from model year 2018

Source: https://www.topagrar.com/technik/news/neuer-mccormick-x6-4-p

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The McCormick X6.45 belongs to the X6 series. Production: 2018. The engine delivers 113 hp (83 kW), has 4 cylinders, with a displacement of 3,600 cm³. Rated speed is 2,200 rpm. The machine is 4,176 mm long, 2,075 mm wide and 2,650 mm high. The unladen weight is 4,600 kg. The wheelbase measures 2,420 mm. Ground clearance is 420 mm. Top speed is 40 km/h. The tank holds 150 litres. The engine is water-cooled. Tyres: front 440/65R28, rear 540/65R38. The fuel is diesel. Construction: Standardtraktor. There are also 12 reverse gears. The X6 series covers 4 models. Rated output within it ranges from 113 to 150 hp; the X6.45 sits at the bottom of that range with 113 hp. Its immediate neighbours are the X6.125 above it with 119 hp. Unladen weight within it ranges from 4,600 to 6,150 kg; here the X6.45 sits at the bottom of that range with 4,600 kg. 381 McCormick models across 40 series are on record.

McCormick X6 – large tractor from Fabbrico: X6.125 to X6.470 with a four-cylinder diesel, 3.6 to 4.5-litre displacement and 83 to 110 kW

The McCormick X6 is the next size up from the X5, also built by the Italian Argo group at the Fabbrico plant near Reggio Emilia since 2013. The four models X6.125, X6.430, X6.45 and X6.470 carry a four-cylinder diesel engine with a uniform rated speed of 2,200 rpm; the designations after the dot distinguish power and equipment levels within the series.

Read on 3 more paragraphs

The register lists 4 versions with 83 to 110 kW (113 to 150 hp) from four-cylinders with 3,600 to 4,500 cm³ displacement. Unladen weights range from 4,600 to 6,150 kg, lengths from 4,176 to 5,270 mm, widths from 2,056 to 2,220 mm, and heights from 2,623 to 2,805 mm.

With outputs up to 110 kW, the X6 positions itself as a large tractor for medium and larger farms as well as contracting businesses, competing with series of similar power class from Landini, Deutz-Fahr, Case IH and New Holland. It is used mainly for tillage, sowing, transport work and powering trailed harvesting machinery.

When buying used, the operating hours on the four-cylinder, the condition of the lift hydraulics and PTO, the tightness of turbocharger and intercooler, and wear on the front axle and tyres all matter. Spare parts run through the Argo group's dealer network. It is also worth checking the on-board electronics, cab mounting and seat suspension, and tyre tread depth.

Sources: SpecCodex register, model data: McCormick X6, McCormick (Argo Tractors, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	113 hp (83 kW)correct
Rated speed	2,200 rpmcorrect
Cylinders	4correct
Displacement	3,600 cm³correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,176 mmcorrect
Width	2,075 mmcorrect
Height	2,650 mmcorrect
Wheelbase	2,420 mmcorrect
Ground clearance	420 mmcorrect
Unladen weight	4,600 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Reverse gears	12correct
Front tyres	440/65R28correct
Rear tyres	540/65R38correct
Top speed	40 km/hcorrect

Working data

Fuel tank capacity	150 lcorrect

Origin and approval

Construction	Standardtraktorcorrect

Where this model stands

Power-to-weight ratio: 18 kW/t (83 kW / 4.6 t)

Power class: Large (100–180 hp)

Stronger than 72% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the McCormick X6.45 have?

The McCormick X6.45 delivers 113 hp.

How much does the McCormick X6.45 weigh?

The unladen weight is 4,600 kg.

What engine does the McCormick X6.45 have?

4 cylinders, 3,600 cm³ displacement, Diesel.

How fast does the McCormick X6.45 go?

Top speed is 40 km/h.

What are the dimensions of the McCormick X6.45?

4,176 mm × 2,075 mm × 2,650 mm.

When was the McCormick X6.45 built?

Production years: 2018.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
