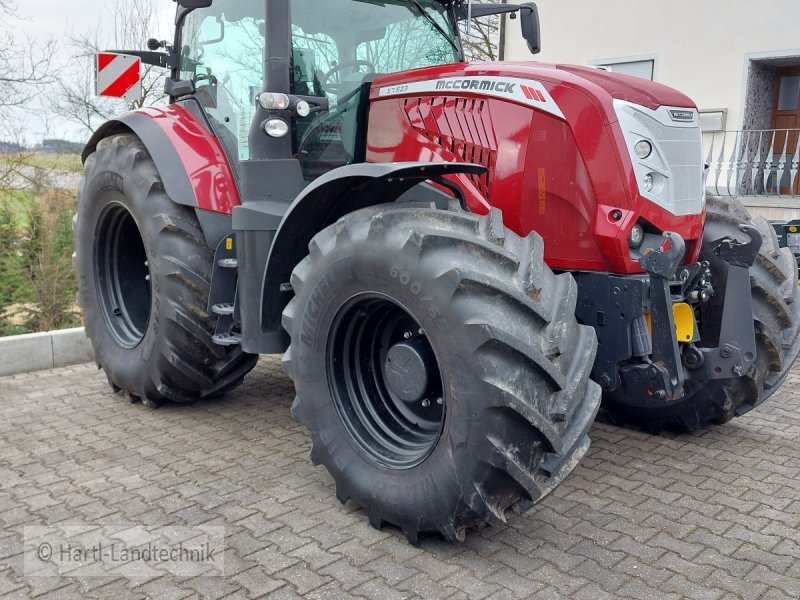

McCormick X7.621
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The X7.621 is a tractor from the manufacturer McCormick, classified in the tractor group. It features a six‑cylinder engine and a P6‑Drive transmission with 30/15 gears, optionally equipped with the continuously variable VT‑Drive. Its dimensions are 5,360 mm in length, 2,550 mm in width and 3,040 mm in height, with a wheelbase of 2,820 mm. The fuel tank capacity is 350 l.
A torque of 840 Nm indicates the pulling power the tractor can deliver, especially when operating heavy agricultural implements. Six cylinders provide a smooth power delivery, beneficial for continuous field work. The 2,820 mm wheelbase contributes to stable handling, while the relatively narrow 2,550 mm width aids maneuverability between crop rows. The transmission offering 30 forward and 15 reverse gears allows fine speed selection, suitable for both slow field operations and faster transport tasks. The 350‑liter tank enables extended periods of operation without frequent refuelling.
The X7.621 is suited for typical agricultural tasks that require high pulling torque and precise speed control. It is appropriate for use with heavy attachments, pulling trailers and performing field work where stability and sufficient fuel capacity are important.
McCormick – other models: the collective page of tractors outside the named ranges, from the historic 10-20 and 15-30 and the British B-250 and B-414 to the ARGO ranges C-Max, CX, CT and X, 7 to 191 kW, Perkins
This page gathers the McCormick tractors the register could not assign to a named range – and the name spans a hundred years: Cyrus McCormick's reaper company was the core of International Harvester in 1902, whose 10-20 and 15-30 tractors of the 1920s and British B-250 and B-414 from Doncaster are listed here as McCormick; in 2000 the Italian ARGO group of Fabbrico bought the name together with the Doncaster plant from Case IH and has since built McCormick tractors as Landini's red sister. The type logic of the ARGO era: C-Max and CX are the mid-range of the 2000s (CX105 about 105 hp), CT the compact tractors of Korean and Japanese manufacture with HST as hydrostat, CN the narrow-track models, and since 2010 the X4 to X8 ranges, in which the first digit gives the series and the following ones the power (X7.660 about 165 hp); F and XtraShift mark the orchard version and the powershift. The engines come from Perkins (804 and 1104) in the medium, Mitsubishi, Daedong and Yanmar in the small and FPT and Deutz in the big models.
Read on 3 more paragraphs
The register lists here 225 versions with 6.9 to 191 kW from three- to six-cylinders of 976 to 8,268 cm³, PTO outputs from 22 to 50 hp on the recorded compact models, lift capacities from 1,188 to 10,950 kg, unladen weights from 594 to 10,040 kg, lengths from 2,502 to 5,870 mm and widths from 1,200 to 2,780 mm.
McCormick is today a brand for farms looking for a simple, mechanically robust tractor at a favourable price; the X ranges share technology and cab with the Landini 5 to 7 ranges from the same plant.
On used tractors, originality and engine condition count on the historic models, clutch, shuttle and Perkins engine on the C-Max and CX, hydrostat and front loader on the CT, operating hours, powershift and electronics on the X ranges; parts run through ARGO and the engine makers.
Sources: SpecCodex register, model data: McCormick (weitere Modelle), McCormick (ARGO Tractors, Hersteller)
Technical data
Engine
| Torque | 840 Nmcorrect |
|---|---|
| Cylinders | 6correct |
Dimensions and weights
| Length | 5,360 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Height | 3,040 mmcorrect |
| Wheelbase | 2,820 mmcorrect |
Drivetrain and chassis
| Gearbox | P6-Drive, 30/15 Gänge optional VT-Drive, stufenloscorrect |
|---|
Working data
| Fuel tank capacity | 350 lcorrect |
|---|
Frequently asked questions
What engine does the McCormick X7.621 have?
6 cylinders.
What are the dimensions of the McCormick X7.621?
5,360 mm × 2,550 mm × 3,040 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
