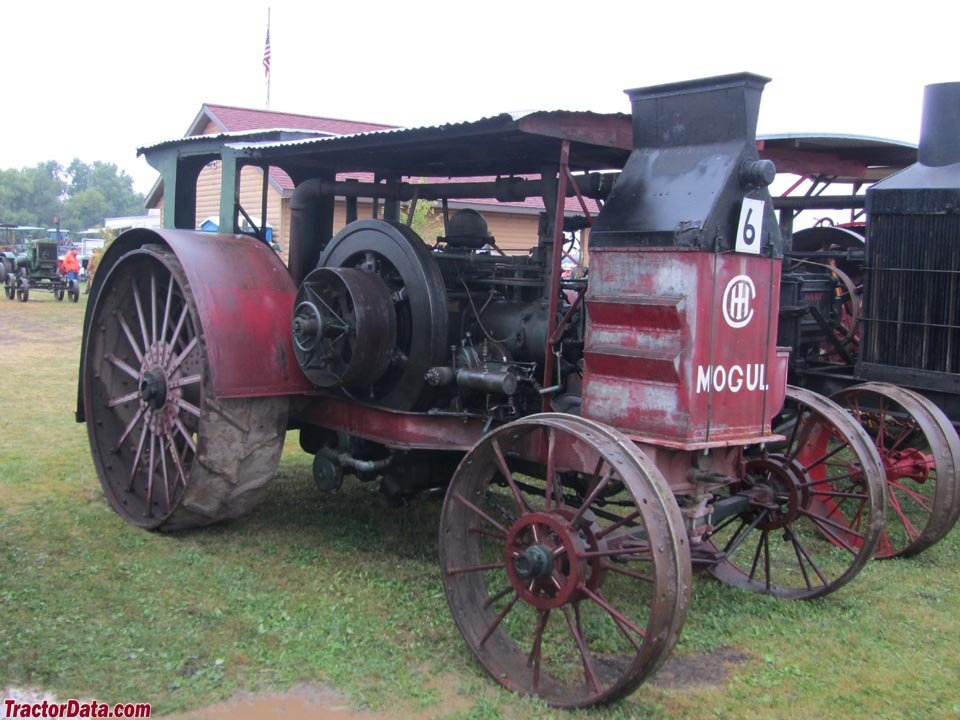

McCormick MOGUL 30-60
Built: 1913–1917 · Series: MOGUL
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
McCormick MOGUL – International Harvester's 1910s kerosene tractors for McCormick dealers: 8-16 to MOGUL 30-60, the numbers as drawbar and belt horsepower, single- and twin-cylinders, 6 to 33.5 kW
The MOGUL range was International Harvester's early field tractor, sold exclusively through former McCormick dealers by the group formed in 1902 from the merger of McCormick Harvesting and Deering Harvester, while the technically related Titan range was reserved for Deering dealers – a dual strategy with which IHC avoided competition between its own sales networks. The type designation follows the US convention of the day using two numbers: the first the drawbar pull, the second the belt-pulley output, so the 8-16 has 8 drawbar and 16 belt horsepower, up to the huge 30-60 at the top of the line. The engines are slow-running single- and twin-cylinders that ran on kerosene or distillate, for which they were usually started and warmed up on petrol.
Read on 3 more paragraphs
The register lists 6 versions with 6 to 33.5 kW from single- and twin-cylinders at 330 to 550 rpm, unladen weights from 2,232 to 9,843 kg, lengths from 3,429 to 5,791 mm, widths from 1,422 to 2,921 mm and heights from 1,549 to 3,023 mm; one version is listed in the register at 8.1 hp and 10,090 cm³.
MOGUL tractors ploughed the prairies of North America in the 1910s and drove threshing machines via the belt pulley, until IHC abandoned the dual Mogul and Titan strategy around 1918/19 and replaced the models with the unified McCormick-Deering 10-20 and 15-30 range of the 1920s.
On these machines, now over a century old, what counts is the condition of the block and cylinder head, the kerosene changeover and carburettor, the evaporative cooling of the early models, and the drive wheels and belt pulley; spare parts are now practically available only through collectors, tractor-pulling associations and remanufacture.
Sources: SpecCodex register, model data: McCormick MOGUL
Technical data
Engine
| Fuel | Kerosin/Destillat/Gasölcorrect |
|---|---|
| Power | 30.4 hp (22.4 kW)correct |
| Rated speed | 330 rpmcorrect |
| Cylinders | 2correct |
| Bore | 254 mmcorrect |
| Stroke | 305 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,791 mmcorrect |
|---|---|
| Width | 2,921 mmcorrect |
| Height | 2,845 mmcorrect |
| Unladen weight | 9,843 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 1 V/1 Rcorrect |
| Front tyres | 48 x 10correct |
| Rear tyres | 73 x 24correct |
| Top speed | 3.5 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 802correct |
Where this model stands
Power-to-weight ratio: 2.3 kW/t (22 kW / 9.8 t)
Power class: Compact (< 40 hp)
Stronger than 18% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the McCormick MOGUL 30-60 have?
The McCormick MOGUL 30-60 delivers 30.4 hp.
How much does the McCormick MOGUL 30-60 weigh?
The unladen weight is 9,843 kg.
What engine does the McCormick MOGUL 30-60 have?
2 cylinders, Kerosin/Destillat/Gasöl.
What are the dimensions of the McCormick MOGUL 30-60?
5,791 mm × 2,921 mm × 2,845 mm.
When was the McCormick MOGUL 30-60 built?
Production years: 1913–1917.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
