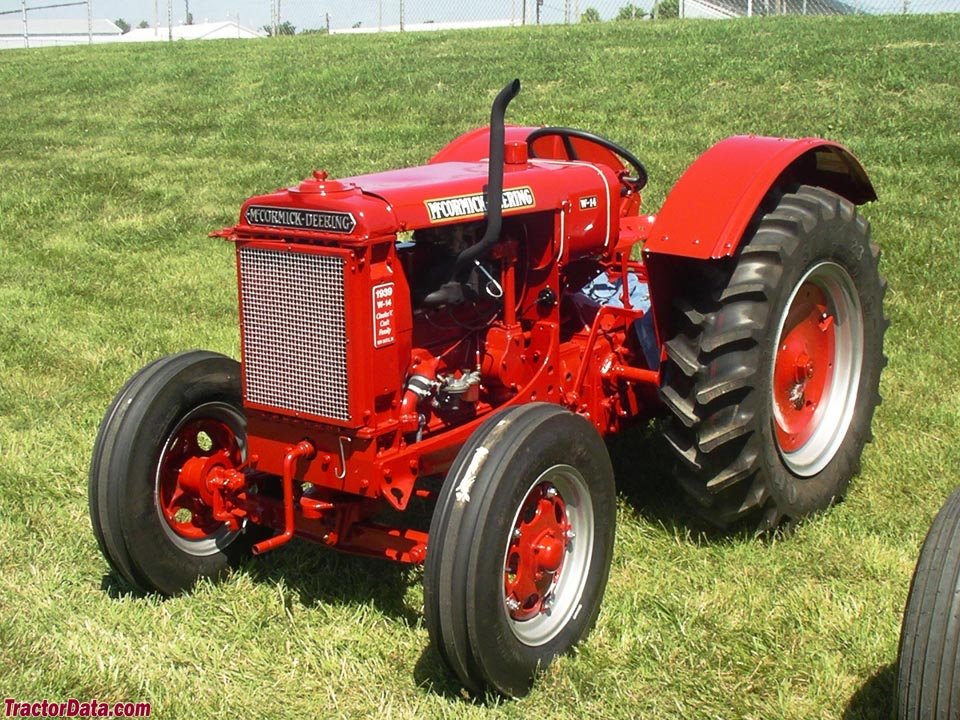

Mccormick Deering W-14
Built: 1938–1939 · Series: W-Baureihe
More machines from model year 1938
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
McCormick-Deering W range – five US standard-tread tractors from the W-4 to the W-30 plus the Farmall-30, four-cylinder engines of 1,853 to 4,649 cm³, 11.8 to 23.5 kW, 1,150 to 1,700 rpm
The McCormick-Deering W range comprised International Harvester's standard-tread tractors of the 1930s and 1940s with a classic fixed track width, as opposed to the narrow row-crop build of the Farmall models; the register lists here the W-4, W-12, W-14 and W-30 along with the row-crop Farmall-30 in the same power class. The models were driven by four-cylinder engines, some of the International C-152 type.
Read on 3 more paragraphs
The register lists here five versions with 11.8 to 23.5 kW from four-cylinder engines of 1,853 to 4,649 cm³ displacement, unladen weights from 1,315 to 2,404 kg, lengths from 2,616 to 3,734 mm, widths from 1,270 to 2,267 mm and heights from 1,219 to 2,057 mm at speeds of 1,150 to 1,700 rpm; the models ran on kerosene or petrol engines, some on distillate.
Standard-tread tractors with fixed track width such as the W range were used above all where the narrow row-crop build of the Farmall models offered no advantage, for instance for belt work, transport and in regions without pronounced row-crop farming; International Harvester thus offered a second chassis concept alongside the Farmall line.
When buying used, the condition of cylinder bores and carburettor, tightness of the cooling system, condition of the belt pulley and PTO and corrosion on sheet-metal parts matter; spare parts for the IH four-cylinder engines are available through dealers specialising in historic farm machinery.
Sources: SpecCodex register, model data: McCormick-Deering W-Baureihe
Technical data
Engine
| Fuel | Kerosin/Benzincorrect |
|---|---|
| Power | 19 hp (14 kW)correct |
| Rated speed | 1,650 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 1,853 cm³correct |
| Bore | 76.2 mmcorrect |
| Stroke | 101.6 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,616 mmcorrect |
|---|---|
| Width | 1,270 mmcorrect |
| Height | 1,219 mmcorrect |
| Wheelbase | 1,524 mmcorrect |
| Unladen weight | 1,315 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 3 V/1 Rcorrect |
| Front tyres | 22, 5 x 3, 5correct |
| Rear tyres | 42 x 8correct |
| Top speed | 5 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 1,163correct |
Where this model stands
Power-to-weight ratio: 10.6 kW/t (14 kW / 1.3 t)
Power class: Compact (< 40 hp)
Stronger than 6% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Mccormick Deering W-14 have?
The Mccormick Deering W-14 delivers 19 hp.
How much does the Mccormick Deering W-14 weigh?
The unladen weight is 1,315 kg.
What engine does the Mccormick Deering W-14 have?
4 cylinders, 1,853 cm³ displacement, Kerosin/Benzin.
How fast does the Mccormick Deering W-14 go?
Top speed is 5 km/h.
What are the dimensions of the Mccormick Deering W-14?
2,616 mm × 1,270 mm × 1,219 mm.
When was the Mccormick Deering W-14 built?
Production years: 1938–1939.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
