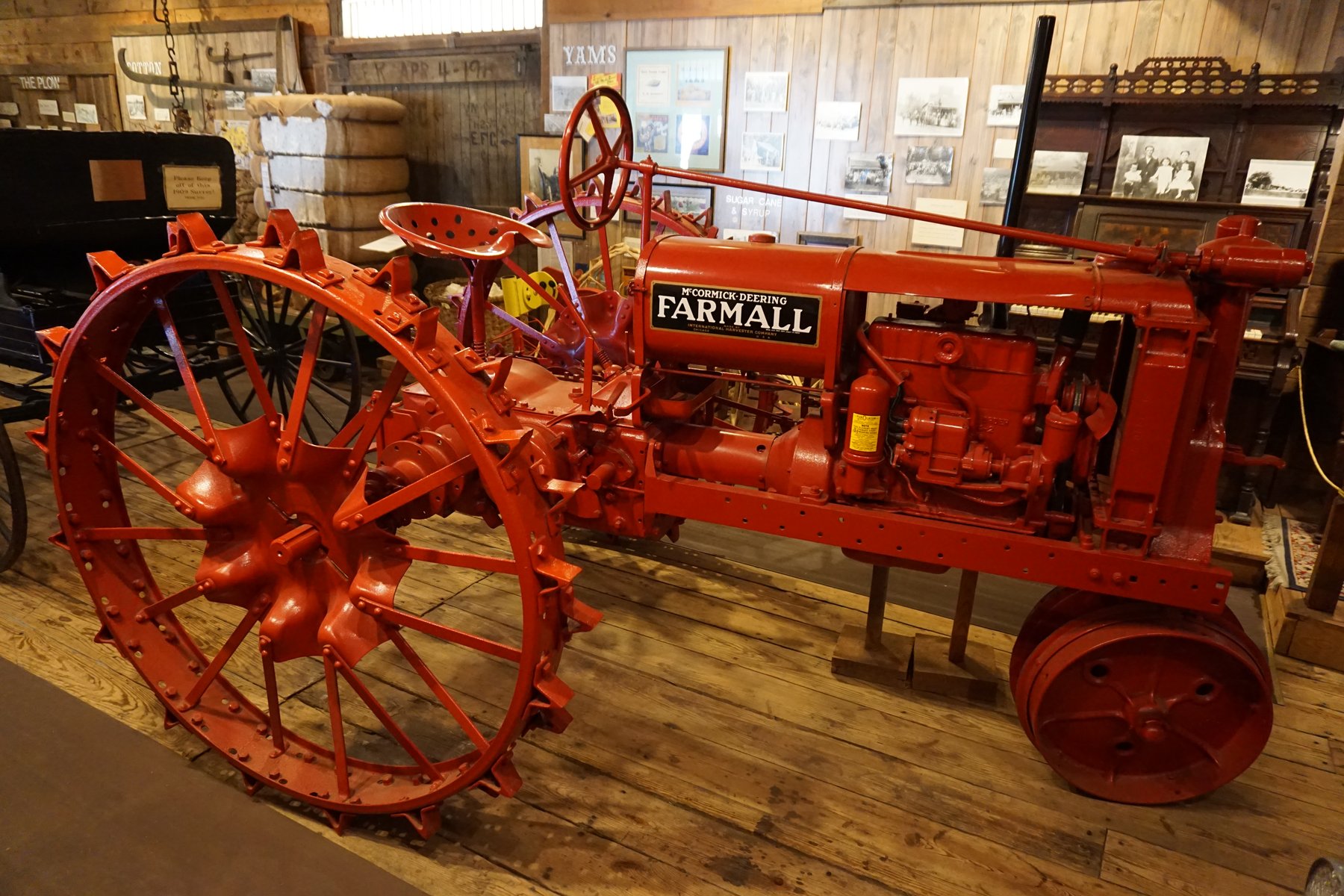

Mccormick Deering F-14
Built: 1938–1939 · Series: FARMALL-Baureihe
More machines from model year 1938
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
McCormick-Deering Farmall series – the first row-crop tractors: Farmall Regular, F-12, F-14 and F-20 from Rock Island, four-cylinders with 11 to 18 kW on kerosene or petrol
The Farmall series comprises International Harvester's first row-crop tractors under the McCormick-Deering brand: the Farmall Regular, introduced in 1924, and the F-12, F-14 and F-20 models that followed in the 1930s. They were built at the Farmall Works in Rock Island, Illinois, a plant erected specifically for this new class of tractor. The Farmall Regular is regarded as the first commercially successful row-crop tractor with a narrow front axle and high ground clearance, the first machine to combine draft work with the cultivation of growing row crops such as maize and cotton. The F-12 and F-20 followed as smaller and larger developments, with the F-14 a later revision of the F-12.
Read on 3 more paragraphs
The register lists 4 versions with 11 to 17.7 kW from four-cylinders with 1,853 to 3,620 cm³ displacement. Unladen weights range from 1,225 to 1,792 kg, lengths from 3,124 to 3,556 mm, widths from 1,880 to 2,203 mm, and heights from 1,702 to 2,159 mm; rated speeds lie between 1,200 and 1,650 rpm.
With the row-crop concept, the Farmall series fundamentally changed American agriculture, as a single tractor could handle ploughing, sowing and cultivation of row crops, increasingly displacing working horses. The series also established the Farmall name, still known today, as a tractor brand in its own right within International Harvester.
On these early row-crop tractors, the condition of the cylinder head, carburettor and fuel system suited to kerosene or petrol, wear on the narrow front axle and steering, and cracks in the cast iron of the engine block and gearbox housing all matter. Spare parts come mainly from specialist Farmall and vintage-tractor parts dealers.
Sources: SpecCodex register, model data: McCormick-Deering Farmall-Baureihe
Technical data
Engine
| Fuel | Kerosin/Benzincorrect |
|---|---|
| Power | 17 hp (12.5 kW)correct |
| Rated speed | 1,650 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 1,853 cm³correct |
| Bore | 76.2 mmcorrect |
| Stroke | 101.6 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,188 mmcorrect |
|---|---|
| Width | 1,886 mmcorrect |
| Height | 1,753 mmcorrect |
| Wheelbase | 1,956 mmcorrect |
| Unladen weight | 1,270 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 3 V/1 Rcorrect |
| Front tyres | 5.00 x 15correct |
| Rear tyres | 9.00 x 40correct |
| Top speed | 6.5 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 27,401correct |
Where this model stands
Power-to-weight ratio: 9.8 kW/t (12 kW / 1.3 t)
Power class: Compact (< 40 hp)
Stronger than 5% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Mccormick Deering F-14 have?
The Mccormick Deering F-14 delivers 17 hp.
How much does the Mccormick Deering F-14 weigh?
The unladen weight is 1,270 kg.
What engine does the Mccormick Deering F-14 have?
4 cylinders, 1,853 cm³ displacement, Kerosin/Benzin.
How fast does the Mccormick Deering F-14 go?
Top speed is 6.5 km/h.
What are the dimensions of the Mccormick Deering F-14?
3,188 mm × 1,886 mm × 1,753 mm.
When was the Mccormick Deering F-14 built?
Production years: 1938–1939.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
