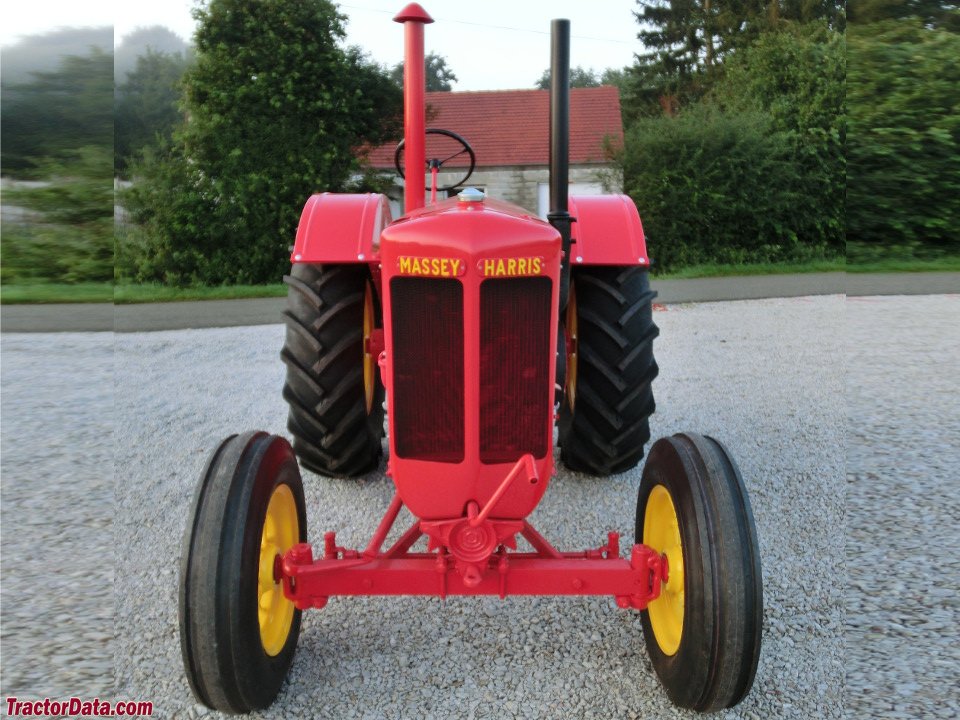

Massey Harris 25-45
Series: SAWYER-MASSEY
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Harris Sawyer-Massey – five Canadian heavy tractors from the 10-20 to the 25-45 from Hamilton, Ontario, four-cylinder engines of 4,417 to 16,088 cm³, 7.4 to 18.6 kW, 600 to 680 rpm
Sawyer-Massey was a Canadian implement works from Hamilton, Ontario, counted among the predecessor brands around Massey-Harris, which in the 1910s and 1920s built large, slow-running tractors with kerosene or petrol engines. Type designations such as 10-20, 20-40 and 25-45 follow the drawbar/belt horsepower rating common at the time: the first figure names the drawbar output, the second the belt-pulley output.
Read on 3 more paragraphs
The register lists here five versions with 7.4 to 18.6 kW, or 10.1 to 25.3 hp, from four-cylinder engines of 4,417 to 16,088 cm³ displacement, unladen weights from 2,359 to 7,983 kg, lengths from 3,378 to 4,826 mm, widths from 1,549 to 2,743 mm and speeds from 600 to 680 rpm.
In the early days of the tractor industry, such makers stood alongside the big US brands such as International Harvester and Case for the transition from steam to internal-combustion traction; the heavy, low-revving engines were designed to drive threshing machines and other stationary equipment via the belt pulley.
Surviving examples are museum and collector's pieces; the condition of cylinder bores and cooling, the tightness of the kerosene or petrol carburettors and the completeness of the belt pulley and drawbar gear matter, since spare parts can be sourced almost exclusively through new-made parts from specialists in historic farm machinery.
Sources: SpecCodex register, model data: Massey Harris Sawyer-Massey
Technical data
Engine
| Fuel | Kerosin/Benzincorrect |
|---|---|
| Power | 25.3 hp (18.6 kW)correct |
| Rated speed | 600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 16,088 cm³correct |
| Bore | 158.75 mmcorrect |
| Stroke | 203.2 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,826 mmcorrect |
|---|---|
| Width | 2,743 mmcorrect |
| Unladen weight | 7,983 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 2 V/2 Rcorrect |
| Forward gears | 2correct |
| Reverse gears | 2correct |
| Front tyres | 1.016 x 305correct |
| Rear tyres | 1.727 x 762correct |
| Top speed | 5.63 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|
Where this model stands
Power-to-weight ratio: 2.3 kW/t (19 kW / 8 t)
Power class: Compact (< 40 hp)
Stronger than 13% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Harris 25-45 have?
The Massey Harris 25-45 delivers 25.3 hp.
How much does the Massey Harris 25-45 weigh?
The unladen weight is 7,983 kg.
What engine does the Massey Harris 25-45 have?
4 cylinders, 16,088 cm³ displacement, Kerosin/Benzin.
How fast does the Massey Harris 25-45 go?
Top speed is 5.6 km/h.
What are the dimensions of the Massey Harris 25-45?
4,826 mm × 2,743 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
