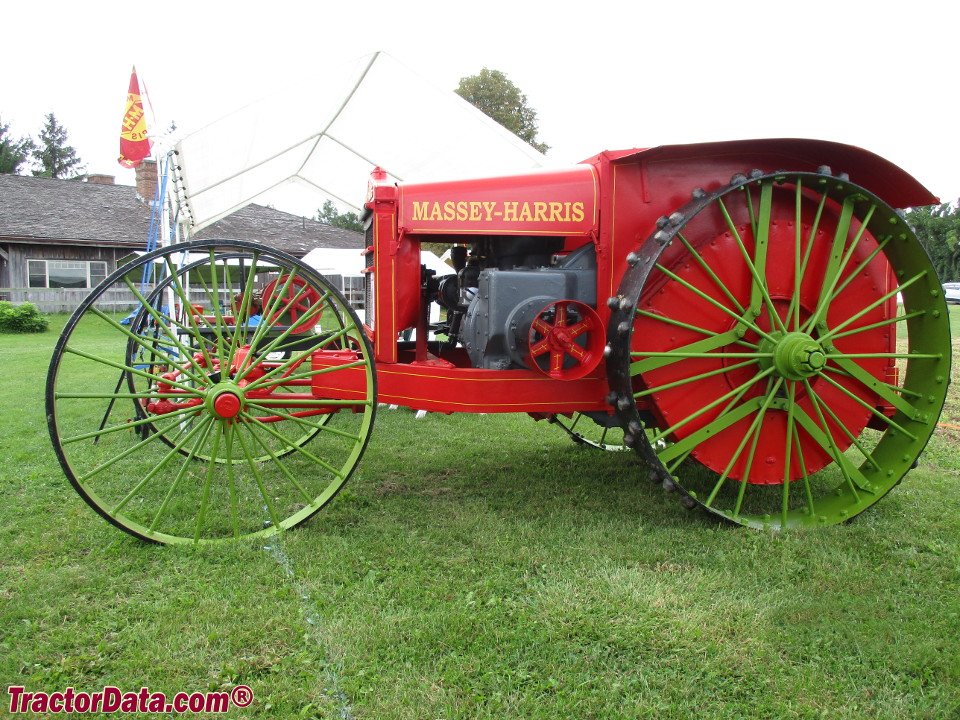

Massey Harris M-H 3 – specifications
Built: 1922–1923 · Series: PARRETT-Baureihe
The M-H 3 from Massey Harris is part of the PARRETT series. Production: 1922–1923. The engine delivers 15.2 hp (11.2 kW), has 4 cylinders, with a displacement of 6,516 cm³. Rated speed is 1,000 rpm. The machine is 3,886 mm long, 1,981 mm wide and 1,676 mm high. The unladen weight is 2,631 kg. The wheelbase measures 2,337 mm. Top speed is 5.3 km/h. Transmission: 2 V/1 R. The engine is water-cooled. Tyres: front 1.168 x 102, rear 1.524 x 254. The fuel is Kerosin/Benzin. The bore measures 114.3 mm. The stroke is 158.75 mm. Construction: frame construction. The gearbox offers 2 forward gears. There are also 1 reverse gears. Around 26 units were built. The PARRETT-Baureihe series covers 3 models. Rated output within it ranges from 10.2 to 15.2 hp; the M-H 3 sits at the top of that range with 15.2 hp. Its immediate neighbours are the M-H 1 below it with 12.2 hp. Unladen weight within it ranges from 2,359 to 2,631 kg; here the M-H 3 sits at the top of that range with 2,631 kg. 66 Massey Harris models across 8 series are on record.
Data for the version built 1922–1923 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey-Harris PARRETT range – the No. 1 to No. 3 built under Parrett licence: four-cylinders of 5.1 to 6.5 litres, 7.5 to 11.2 kW, kerosene-petrol operation from Canadian production, 1918 to 1923
Massey-Harris built the PARRETT range from 1918 to 1923 under licence from the American manufacturer Parrett Tractor Company of Chicago Heights; production took place in Canada. The three models M-H 1, M-H 2 and M-H 3 differ chiefly in displacement and output but share the same layout with an upright four-cylinder engine, chain final drive and the dual-fuel operation typical of tractors of that era.
Read on 3 more paragraphs
The register lists 3 versions with 7.5 to 11.2 kW (10.2 to 15.2 hp) from four-cylinders of 5,114 to 6,516 cc displacement at a rated speed of 1,000 rpm. Operating weight ranges from 2,359 to 2,631 kg, length from 3,658 to 3,886 mm, width from 1,829 to 1,981 mm and height from 1,524 to 1,676 mm. All three models ran on a kerosene-petrol mixture.
The PARRETT range ranks among the earliest tractors built in Canada and marks Massey-Harris's entry into tractor manufacturing before the company developed its own designs. The large displacement paired with comparatively low output is typical of the slow-turning engines of the period, built for pulling power rather than revs.
Surviving examples are collector's items today; a purchase check should cover the condition of the cylinder head and cooling system, the tightness of the fuel system for kerosene-petrol operation, wear on the chain drive and rear axle, and the completeness of the radiator, starting crank and steering linkage. Spare parts come almost exclusively from collector markets and reproduction, and an original engine is a rarity.
Sources: SpecCodex register, model data: Massey-Harris PARRETT-Baureihe
Technical data
Engine
| Fuel | Kerosin/Benzincorrect |
|---|---|
| Power | 15.2 hp (11.2 kW)correct |
| Rated speed | 1,000 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 6,516 cm³correct |
| Bore | 114.3 mmcorrect |
| Stroke | 158.75 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,886 mmcorrect |
|---|---|
| Width | 1,981 mmcorrect |
| Height | 1,676 mmcorrect |
| Wheelbase | 2,337 mmcorrect |
| Unladen weight | 2,631 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 2 V/1 Rcorrect |
| Forward gears | 2correct |
| Reverse gears | 1correct |
| Front tyres | 1.168 x 102correct |
| Rear tyres | 1.524 x 254correct |
| Top speed | 5.3 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 26correct |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 4.3 kW/t (11 kW / 2.6 t)
Power class: Compact (< 40 hp)
Stronger than 4% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
