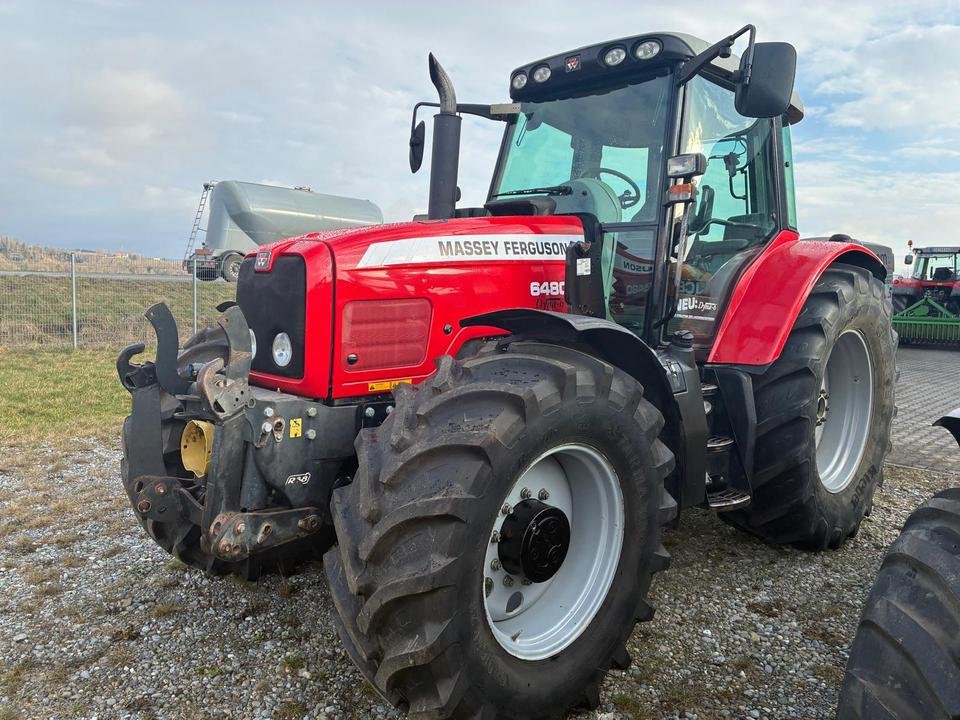

Massey Ferguson MF 6480 (6030 kg) 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Technical data
Engine
| Engine model | 1106Dcorrect |
|---|---|
| Power | 145 hp (106.7 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 546 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,600.7 cm³correct |
| Aspiration | wastegatecorrect |
Dimensions and weights
| Length | 5,130 mmcorrect |
|---|---|
| Width | 2,014 mmcorrect |
| Height | 2,935 mmcorrect |
| Unladen weight | 6,030 kgcorrect |
Drivetrain and chassis
| Gearbox | 32V/32R or 24V/24Rcorrect |
|---|---|
| Gearbox type | Dyna-6correct |
| Forward gears | 24correct |
| Reverse gears | 24correct |
| Tyre size | front 14.9R28 rear 18.4R38correct |
| Top speed | 40.1 km/hcorrect |
| Turning radius | 4,750 mmcorrect |
Working data
| Lifting capacity | 4,260 kgcorrect |
|---|---|
| Pump flow | 110.2 l/mincorrect |
| Hydraulic pressure | 200correct |
| Fuel tank capacity | 270.3 lcorrect |
Other data
| Cab height | 2,871.2correct |
|---|---|
| Linkage category | Cat II/IIIcorrect |
| PTO output | 120 hpcorrect |
| PTO speed | 540/1000 rpmcorrect |
More machines with this engine (1106D, 10)
Frequently asked questions
How much power does the Massey Ferguson MF 6480 have?
The Massey Ferguson MF 6480 delivers 145 hp.
How much does the Massey Ferguson MF 6480 weigh?
The unladen weight is 6,030 kg.
What engine does the Massey Ferguson MF 6480 have?
6 cylinders, 6,601 cm³ displacement.
How fast does the Massey Ferguson MF 6480 go?
Top speed is 40.1 km/h.
What is the PTO output of the Massey Ferguson MF 6480?
PTO output is 120 hp. PTO speeds: 540/1000 rpm.
How much does the rear linkage of the Massey Ferguson MF 6480 lift?
The rear linkage lifts 4,260 kg.
What are the dimensions of the Massey Ferguson MF 6480?
5,130 mm × 2,014 mm × 2,935 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
