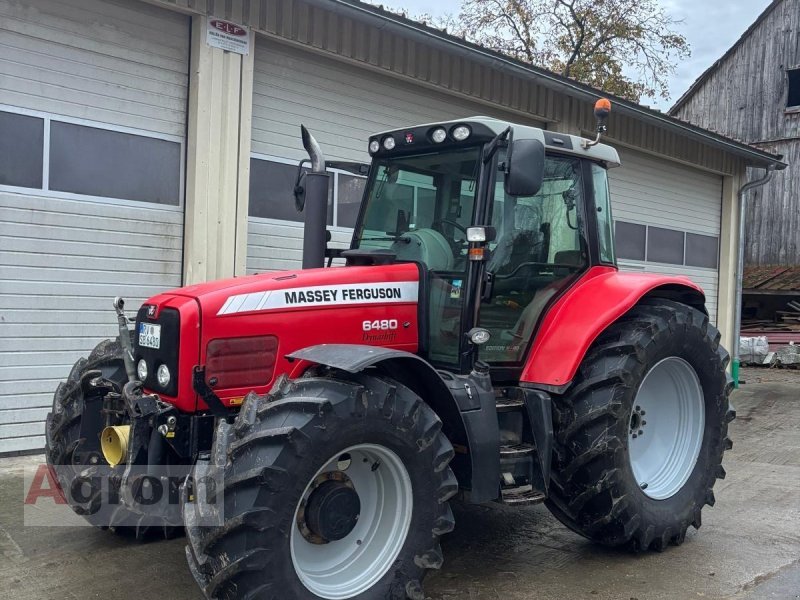

Massey Ferguson MF 6480 2WD – specifications

Series: Other models

Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Massey Ferguson 6480 is a tractor in the tractor group, configured in the 2WD variant. The model belongs to the MF 6480 series and is manufactured by Massey Ferguson. The design is based on a six-cylinder in-line engine with the model code 1106D. This engine has a displacement of 6,600.7 cm³ and reaches its rated speed at 2,200 rpm. The two-wheel drive configuration determines the vehicle's fundamental traction characteristics compared to all-wheel-drive variants.

The engine output is 145 hp, corresponding to a power of 106.7 kW. The maximum torque is 546 Nm and is available at the rated speed. Charging via a wastegate turbocharger ensures the required air supply. The empty weight of 5,800 kg influences stability when working with heavy mounted implements. The Dyna-6 transmission offers 24 forward gears and 24 reverse gears. This number of gears allows for fine speed gradation, which is advantageous when adapting to different soil conditions and working speeds in the field. The top speed of 40.1 km/h permits rapid travel between work sites.

The lift capacity of the three-point hitch is 4,260 kg, enabling the use of heavy implements such as plows or cultivators. The pump flow rate of 110.2 l/min supplies hydraulic control units with sufficient oil volume. The PTO power is 120 hp, with speeds of 540 and 1,000 rpm available. The fuel tank capacity of 270.3 l ensures long working intervals without frequent refueling. The dimensions, with a length of 5,130 mm, a width of 2,167.1 mm, and a height of 2,935 mm, define the vehicle's space requirements. The wheelbase of 2,828.5 mm contributes to longitudinal stability.

Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins

This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.

Read on 3 more paragraphs

The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.

By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.

Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.

Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)

Versions of this model in the register

Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.

VersionBuiltkWEU type approvalOrigin
MF 6480 2006-2012120e13*2003/37*2005/67*0024*00Official register
● MF 6480 —106.7—Reference work (Wikipedia/Wikibooks)
MF 6480 —106.7—Reference work (Wikipedia/Wikibooks)

Technical data

Engine

Engine model1106Dcorrect
Power145 hp (106.7 kW)correct
Rated speed2,200 rpmcorrect
Torque546 Nmcorrect
Cylinders6correct
Displacement6,600.7 cm³correct
Aspirationwastegatecorrect

Dimensions and weights

Length5,130 mmcorrect
Width2,167.1 mmcorrect
Height2,935 mmcorrect
Wheelbase2,828.5 mmcorrect
Unladen weight5,800 kgcorrect

Drivetrain and chassis

Gearbox32V/32R or 24V/24Rcorrect
Gearbox typeDyna-6correct
Forward gears24correct
Reverse gears24correct
Top speed40.1 km/hcorrect

Working data

Lifting capacity4,260 kgcorrect
Pump flow110.2 l/mincorrect
Fuel tank capacity270.3 lcorrect

Other data

Linkage categoryCat II/IIIcorrect
PTO output120 hpcorrect
PTO speed540/1000 rpmcorrect

More machines with this engine (1106D, 9)

Where this model stands

Power-to-weight ratio: 18.4 kW/t (107 kW / 5.8 t)

Power class: Large (100–180 hp)

Stronger than 82% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Massey Ferguson MF 6480 have?

The Massey Ferguson MF 6480 delivers 145 hp.

How much does the Massey Ferguson MF 6480 weigh?

The unladen weight is 5,800 kg.

What engine does the Massey Ferguson MF 6480 have?

6 cylinders, 6,601 cm³ displacement.

How fast does the Massey Ferguson MF 6480 go?

Top speed is 40.1 km/h.

What is the PTO output of the Massey Ferguson MF 6480?

PTO output is 120 hp. PTO speeds: 540/1000 rpm.

How much does the rear linkage of the Massey Ferguson MF 6480 lift?

The rear linkage lifts 4,260 kg.

What are the dimensions of the Massey Ferguson MF 6480?

5,130 mm × 2,167 mm × 2,935 mm.
