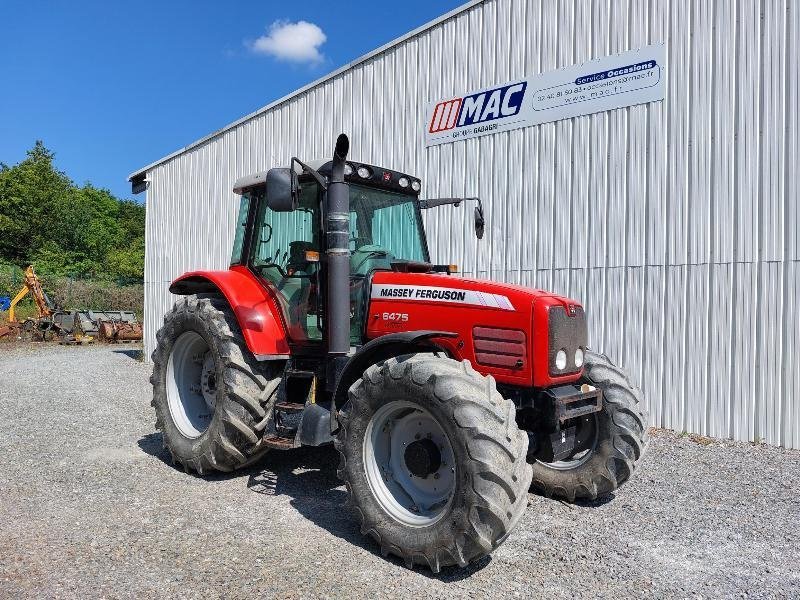

Massey Ferguson MF 6475 4WD – specifications
Series: Other models
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Massey Ferguson MF 6475 is a four-wheel-drive tractor belonging to the category of agricultural tractors. The model is powered by a six-cylinder diesel engine designated 1106D, which has a displacement of 6,600.7 cm³. The rated power is 135 hp, corresponding to an output of 99.4 kW. This engine configuration positions the machine in the mid-to-upper power range for field work and transport.
With a maximum torque of 507 Nm, the drive provides sufficient power for heavy implements. The empty weight of 5,440 kg ensures the necessary traction in the field. The lifting capacity of 4,260 kg allows for lifting heavy equipment at the rear, while the PTO power of 110 hp at 540 or 1,000 rpm ensures the supply of attached machinery. The hydraulic system delivers a flow rate of 110.2 l/min at a pressure of 200 bar, allowing for rapid response of the control units. The 24 forward and 24 reverse gears of the Dyna-6 transmission offer a wide range of ratios for various working speeds.
Within the series, the MF 6475 occupies a central position. It is the next larger model compared to smaller variants and the next smaller model compared to more powerful tractors of the same series. The maximum speed of 40.1 km/h supports efficient road travel between work areas. With a length of 5,130 mm and a width of 2,014 mm, the machine remains maneuverable for yard operations. The tank capacity of 270.3 l ensures long operating times without frequent refueling stops.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| MF 6475 | 2007-2012 | 116.5 | e13*2003/37*2005/67*0024*00 | Official register |
| MF 6475 | — | 99.4 | — | Reference work (Wikipedia/Wikibooks) |
| ● MF 6475 | — | 99.4 | — | Reference work (Wikipedia/Wikibooks) |
Technical data
Engine
| Engine model | 1106Dcorrect |
|---|---|
| Power | 135 hp (99.4 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 507 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,600.7 cm³correct |
| Aspiration | wastegatecorrect |
Dimensions and weights
| Length | 5,130 mmcorrect |
|---|---|
| Width | 2,014 mmcorrect |
| Height | 2,935 mmcorrect |
| Unladen weight | 5,440 kgcorrect |
Drivetrain and chassis
| Gearbox | 32V/32R or 24V/24Rcorrect |
|---|---|
| Gearbox type | Dyna-6correct |
| Forward gears | 24correct |
| Reverse gears | 24correct |
| Tyre size | front 14.9R28 rear 18.4R38correct |
| Top speed | 40.1 km/hcorrect |
| Turning radius | 4,750 mmcorrect |
Working data
| Lifting capacity | 4,260 kgcorrect |
|---|---|
| Pump flow | 110.2 l/mincorrect |
| Hydraulic pressure | 200 barcorrect |
| Fuel tank capacity | 270.3 lcorrect |
Other data
| Cab height | 2,871.2 mmcorrect |
|---|---|
| Linkage category | Cat II/IIIcorrect |
| PTO output | 110 hpcorrect |
| PTO speed | 540/1000 rpmcorrect |
More machines with this engine (1106D, 9)
Where this model stands
Power-to-weight ratio: 18.3 kW/t (99 kW / 5.4 t)
Power class: Large (100–180 hp)
Stronger than 79% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF 6475 have?
The Massey Ferguson MF 6475 delivers 135 hp.
How much does the Massey Ferguson MF 6475 weigh?
The unladen weight is 5,440 kg.
What engine does the Massey Ferguson MF 6475 have?
6 cylinders, 6,601 cm³ displacement.
How fast does the Massey Ferguson MF 6475 go?
Top speed is 40.1 km/h.
What is the PTO output of the Massey Ferguson MF 6475?
PTO output is 110 hp. PTO speeds: 540/1000 rpm.
How much does the rear linkage of the Massey Ferguson MF 6475 lift?
The rear linkage lifts 4,260 kg.
What are the dimensions of the Massey Ferguson MF 6475?
5,130 mm × 2,014 mm × 2,935 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
