Massey Ferguson MF 6475 2WD – specifications
Series: Other models
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

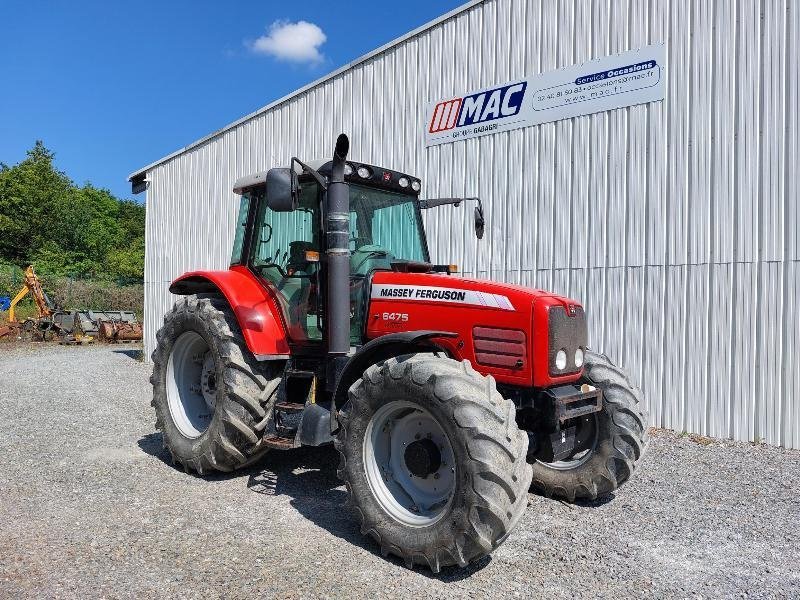

The Massey Ferguson MF 6475 is a 2WD tractor manufactured by Massey Ferguson. It belongs to the tractor category and is equipped with a six-cylinder engine of the 1106D type. The machine has a displacement of 6,600.7 cm³ and delivers an output of 135 hp at a rated speed of 2,200 rpm. The maximum torque is 507 Nm, with the engine supported by wastegate turbocharging. The dimensions are 5,130 mm in length, 2,167.1 mm in width, and 2,935 mm in height. The wheelbase measures 2,828.5 mm, which, together with the curb weight of 5,300 kg, defines the basic configuration of the vehicle.
In operation, performance is demonstrated by a PTO power of 110 hp and available speeds of 540 or 1,000 rpm. The lifting capacity of 4,260 kg allows for the attachment of heavy implements, while the pump flow rate of 110.2 l/min ensures hydraulic supply. The Dyna-6 transmission offers 24 forward and 24 reverse gears, allowing for fine gradation for various working speeds. The top speed of 40.1 km/h is designed for road traffic. The fuel tank capacity of 270.3 l ensures longer operating times without frequent refueling. The Category II/III hitch covers a wide range of compatible equipment.
Within the model series, the MF 6475 is positioned as a model with specific performance data. The number of gears, 24 forward and 24 reverse, offers high flexibility in adapting to various soil conditions. The combination of high torque and available lifting capacity makes the machine suitable for demanding field work. The technical equipment with the Dyna-6 transmission and wastegate turbocharging supports efficient power transmission. The dimensions and weight are designed for stable stability during operation. This configuration targets users who require a defined performance class in a tractor of this size.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| MF 6475 | 2007-2012 | 116.5 | e13*2003/37*2005/67*0024*00 | Official register |
| ● MF 6475 | — | 99.4 | — | Reference work (Wikipedia/Wikibooks) |
| MF 6475 | — | 99.4 | — | Reference work (Wikipedia/Wikibooks) |
Technical data
Engine
| Engine model | 1106Dcorrect |
|---|---|
| Power | 135 hp (99.4 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 507 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,600.7 cm³correct |
| Aspiration | wastegatecorrect |
Dimensions and weights
| Length | 5,130 mmcorrect |
|---|---|
| Width | 2,167.1 mmcorrect |
| Height | 2,935 mmcorrect |
| Wheelbase | 2,828.5 mmcorrect |
| Unladen weight | 5,300 kgcorrect |
Drivetrain and chassis
| Gearbox | 32V/32R or 24V/24Rcorrect |
|---|---|
| Gearbox type | Dyna-6correct |
| Forward gears | 24correct |
| Reverse gears | 24correct |
| Top speed | 40.1 km/hcorrect |
Working data
| Lifting capacity | 4,260 kgcorrect |
|---|---|
| Pump flow | 110.2 l/mincorrect |
| Fuel tank capacity | 270.3 lcorrect |
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO output | 110 hpcorrect |
| PTO speed | 540/1000 rpmcorrect |
More machines with this engine (1106D, 9)
Where this model stands
Power-to-weight ratio: 18.8 kW/t (99 kW / 5.3 t)
Power class: Large (100–180 hp)
Stronger than 79% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF 6475 have?
The Massey Ferguson MF 6475 delivers 135 hp.
How much does the Massey Ferguson MF 6475 weigh?
The unladen weight is 5,300 kg.
What engine does the Massey Ferguson MF 6475 have?
6 cylinders, 6,601 cm³ displacement.
How fast does the Massey Ferguson MF 6475 go?
Top speed is 40.1 km/h.
What is the PTO output of the Massey Ferguson MF 6475?
PTO output is 110 hp. PTO speeds: 540/1000 rpm.
How much does the rear linkage of the Massey Ferguson MF 6475 lift?
The rear linkage lifts 4,260 kg.
What are the dimensions of the Massey Ferguson MF 6475?
5,130 mm × 2,167 mm × 2,935 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
