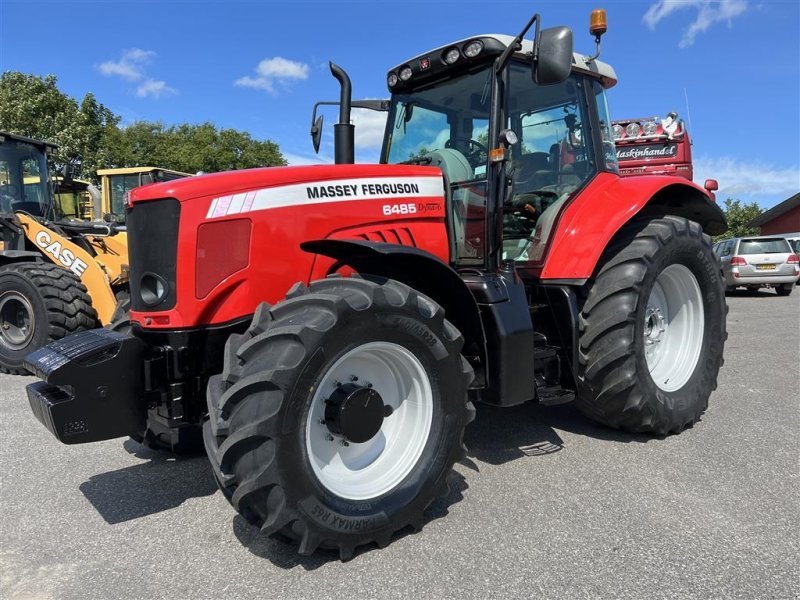

Massey Ferguson MF 6485 A
Built: 2003–2012 · Series: 6400er-Baureihe
More machines from model year 2003
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson 6400 series – built in Beauvais, France: MF 6485 A and MF 6490 with six-cylinder engine, 6,596 to 6,598 cm³, 114.1 to 125.1 kW, Dyna transmission
The 6400 series was developed in the 2000s in Beauvais, France, as mid-sized Massey Ferguson standard tractors with a six-cylinder engine. The MF 6485 A and MF 6490 models represent the upper half of this range and were offered with Dyna power-shift transmissions, allowing stepped gear changes under load.
Read on 3 more paragraphs
The register lists 2 versions here with 114.1 to 125.1 kW (up to 170 hp) from the six-cylinder diesel engine of 6,596 to 6,598 cm³ displacement, at 2,200 revolutions per minute. Kerb weights range from 6,123 to 6,280 kg, at a gross vehicle weight of 12,000 kg, lengths from 4,986 to 4,989 mm, a width of 2,071 mm, a height of 3,095 mm and torque of 658 Nm.
At this power class, the MF 6485 A and MF 6490 occupied the segment of versatile standard tractors for mid-sized to larger arable farms, competing for market share with John Deere, Case IH and New Holland. The six-cylinder engine and Dyna transmissions also made the range attractive for haulage work with trailers.
When buying used, the electro-hydraulic control of the Dyna transmission and the condition of the clutch packs should be checked, as repairs here can become costly. Radiator, intercooler and rear-axle bearings also deserve attention on these powerful six-cylinders; spare parts are supplied by AGCO through its dealer network.
Sources: SpecCodex register, model data: Massey Ferguson 6400er-Baureihe, Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 155 hp (114.1 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,598 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,986 mmcorrect |
|---|---|
| Width | 2,071 mmcorrect |
| Height | 3,095 mmcorrect |
| Wheelbase | 3,011 mmcorrect |
| Ground clearance | 370 mmcorrect |
| Unladen weight | 6,123 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 32V/32R or 24V/24Rcorrect |
| Front tyres | 11.00-16 ASF (A: 480/70 R 28 AS)correct |
| Rear tyres | 580/70 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 18.6 kW/t (114 kW / 6.1 t)
Power class: Large (100–180 hp)
Stronger than 85% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF 6485 A have?
The Massey Ferguson MF 6485 A delivers 155 hp.
How much does the Massey Ferguson MF 6485 A weigh?
The unladen weight is 6,123 kg.
What engine does the Massey Ferguson MF 6485 A have?
6 cylinders, 6,598 cm³ displacement, Diesel.
How fast does the Massey Ferguson MF 6485 A go?
Top speed is 40 km/h.
What are the dimensions of the Massey Ferguson MF 6485 A?
4,986 mm × 2,071 mm × 3,095 mm.
When was the Massey Ferguson MF 6485 A built?
Production years: 2003–2012.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
