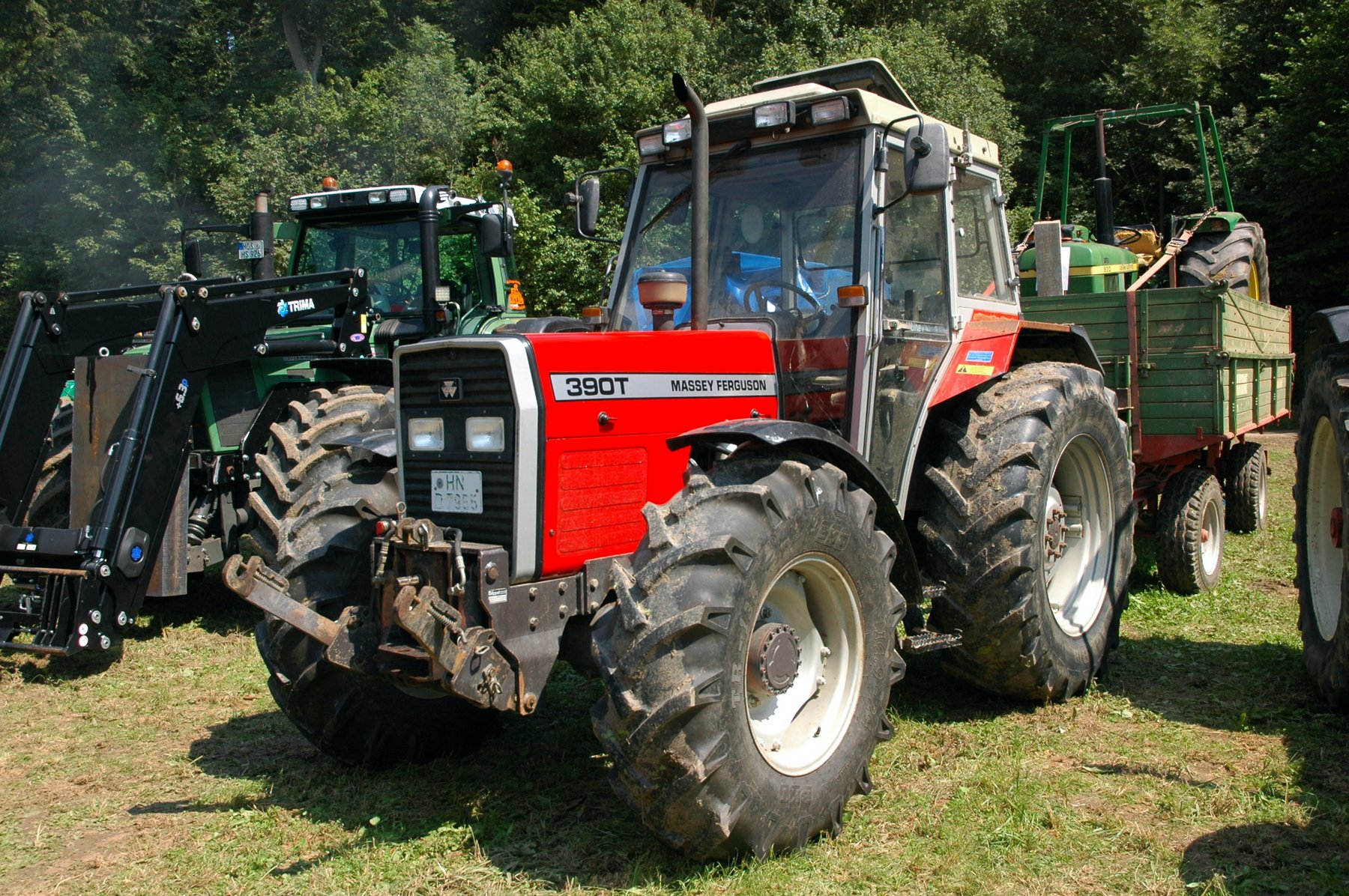

Massey Ferguson MF 390 Turbo
Built: 1988–1998 · Series: 300er-Baureihe
More machines from model year 1988
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MF 300: solid mid-range of the late 80s and 90s, 47 to 90 hp, three-, four- and six-cylinder diesels, also built under licence in Brazil and South Africa
From the late 1980s, the 300 series took over the 200 series' role as Massey Ferguson's mid-range class and stayed in the catalogue into the late 1990s, alongside the newer 3000 and 4200 series in the upper segment.
Read on 4 more paragraphs
The register lists 15 live models, from the MF 340 (A) to the MF 390 (A), built between 1987 and 1998. Output ranges from 30.9 to 71.4 kW, or 47 to 90 hp, weight from 2,324 to 3,600 kg, displacement from 2,500 to 5,806 cm3, across three-, four- and six-cylinder engines.
Like its predecessors, the 300 series spanned a broad power range from a compact three-cylinder up to a six-cylinder flagship, and was built under licence worldwide, including at plants in Brazil and South Africa.
As a rugged, technically straightforward mid-range line without complex electronics, the MF 300 ranks today among the sought-after used tractors for smaller operations.
When buying used, check clutch and gearbox condition – mechanical or with powershift stages depending on specification –, the tightness of the lift hydraulics, and rust on cab and body panels; on examples built under licence in Brazil or South Africa, specification can differ slightly from the European version. Parts today run through the global dealer network of the AGCO group, which Massey Ferguson belongs to. The mechanical and powershift versions of this series share the same base engine, so many wear parts are interchangeable between the two variants.
Sources: SpecCodex register, model data: Massey Ferguson 300er-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 90 hp (66.2 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 335 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,866 cm³correct |
| Bore | 98.5 mmcorrect |
| Stroke | 127 mmcorrect |
| Injection pressure | 232 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,945 mmcorrect |
|---|---|
| Width | 2,110 mmcorrect |
| Height | 2,655 mmcorrect |
| Wheelbase | 2,350 mmcorrect |
| Ground clearance | 460 mmcorrect |
| Unladen weight | 3,600 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12V/4R; 12V/12R; Optional 18/6 powershift transmission transmissioncorrect |
| Forward gears | 12correct |
| Reverse gears | 4correct |
| Front tyres | 380/70 R24 (A)correct |
| Rear tyres | 480/70 R34correct |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 118 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 18.4 kW/t (66 kW / 3.6 t)
Power class: Universal (40–100 hp)
Stronger than 61% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF 390 Turbo have?
The Massey Ferguson MF 390 Turbo delivers 90 hp.
How much does the Massey Ferguson MF 390 Turbo weigh?
The unladen weight is 3,600 kg.
What engine does the Massey Ferguson MF 390 Turbo have?
4 cylinders, 3,866 cm³ displacement, Diesel.
How fast does the Massey Ferguson MF 390 Turbo go?
Top speed is 30 km/h.
What are the dimensions of the Massey Ferguson MF 390 Turbo?
4,945 mm × 2,110 mm × 2,655 mm.
When was the Massey Ferguson MF 390 Turbo built?
Production years: 1988–1998.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 29 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
