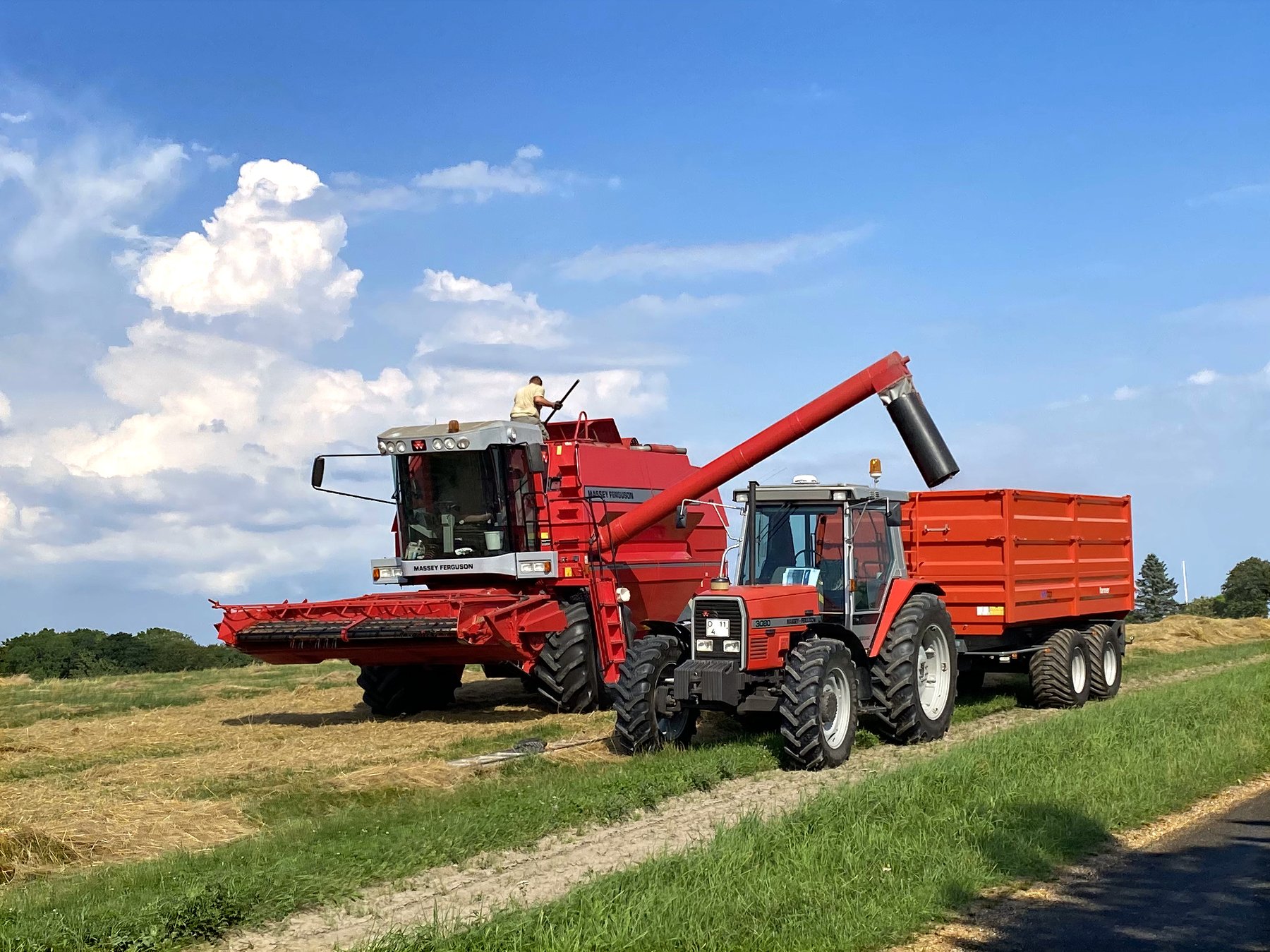

Massey Ferguson MF 3080 (A)

Built: 1989–1997 · Series: 3000er-Baureihe

More machines from model year 1989

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Massey Ferguson MF 3080 (A) belongs to the 3000er series. Production: 1989–1997. The engine delivers 97 hp (71.4 kW), has 6 cylinders, with a displacement of 5,795 cm³. Torque is 361 Nm. Rated speed is 2,200 rpm. The machine is 4,323 mm long, 1,861 mm wide and 2,749 mm high. The unladen weight is 5,170 kg. The wheelbase measures 2,696 mm. Ground clearance is 432 mm. Top speed is 30 km/h. Transmission: 32V/32R. The engine is water-cooled. Tyres: front 11.00-16 ASF (A: 13.6-28 AS), rear 18.4-38 AS. The fuel is diesel. The bore measures 98.4 mm. The stroke is 127 mm. Maximum torque is reached at 1,300 rpm. Construction: unit construction (no separate frame). Injection pressure is 220 bar. The 3000er-Baureihe series covers 11 models. Rated output within it ranges from 68 to 107 hp; the MF 3080 (A) sits in the upper part of that range with 97 hp. Its immediate neighbours are the MF 3075 (A) below it with 95 hp and the MF 3085 A above it with 100 hp. Unladen weight within it ranges from 3,485 to 5,170 kg; here the MF 3080 (A) sits at the top of that range with 5,170 kg. 1668 Massey Ferguson models across 56 series are on record.

MF 3000: the new mid-range of the late 1980s, from 71 hp, four- and six-cylinder diesels with cab suspension and hydraulic PTO control

From 1986, the 3000 series replaced the older numbering schemes, bringing more modern cabs and reworked hydraulics to Massey Ferguson's mid-to-upper power segment.

Read on 4 more paragraphs

The register lists 11 live models, from the MF 3050 (A) to the MF 3095 (A), built between 1986 and 1995. Output ranges from 50 to 78.8 kW, or from 71 hp upward, weight from 3,485 to 5,170 kg, displacement from 3,860 to 5,987 cm3, across four- and six-cylinder engines.

The 3000 series ran alongside the stronger 3600 series, and together the two covered Massey Ferguson's entire mid-to-upper power range in the late 1980s and early 1990s.

Technically it marks the transition to cab suspension and hydraulic PTO control principles still used in the MF line-up today.

When buying a used 3000 series, clutch and powershift-stage condition, the tightness of the cab suspension and the hydraulic PTO control, and rust on cab and mudguards after decades of field use all matter. Massey Ferguson is now part of the AGCO group, which secures parts supply for older series such as the 3000 too through a global dealer network. This early form of cab suspension typically relied on rubber- or hydraulically-mounted attachment points to damp vibration on rough ground, a comfort feature not yet standard on the smaller 200 and 300 series of the same period. PTO and lift in this power class follow the internationally standardised Category II of the ISO 730 three-point linkage, at 540 or 1,000 rpm.

Sources: SpecCodex register, model data: Massey Ferguson 3000er-Baureihe

Technical data

Engine

Fueldieselcorrect
Power97 hp (71.4 kW)correct
Rated speed2,200 rpmcorrect
Torque361 Nmcorrect
Speed at max. torque1,300 rpmcorrect
Cylinders6correct
Displacement5,795 cm³correct
Bore98.4 mmcorrect
Stroke127 mmcorrect
Injection pressure220 barcorrect
Coolingwater-cooledcorrect

Dimensions and weights

Length4,323 mmcorrect
Width1,861 mmcorrect
Height2,749 mmcorrect
Wheelbase2,696 mmcorrect
Ground clearance432 mmcorrect
Unladen weight5,170 kgcorrect

Drivetrain and chassis

Driverear- or four-wheel drivecorrect
Gearbox32V/32Rcorrect
Front tyres11.00-16 ASF (A: 13.6-28 AS)correct
Rear tyres18.4-38 AScorrect
Top speed30 km/hcorrect

Origin and approval

Constructionunit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 13.8 kW/t (71 kW / 5.2 t)

Power class: Universal (40–100 hp)

Stronger than 65% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Massey Ferguson MF 3080 (A) have?

The Massey Ferguson MF 3080 (A) delivers 97 hp.

How much does the Massey Ferguson MF 3080 (A) weigh?

The unladen weight is 5,170 kg.

What engine does the Massey Ferguson MF 3080 (A) have?

6 cylinders, 5,795 cm³ displacement, Diesel.

How fast does the Massey Ferguson MF 3080 (A) go?

Top speed is 30 km/h.

What are the dimensions of the Massey Ferguson MF 3080 (A)?

4,323 mm × 1,861 mm × 2,749 mm.

When was the Massey Ferguson MF 3080 (A) built?

Production years: 1989–1997.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
