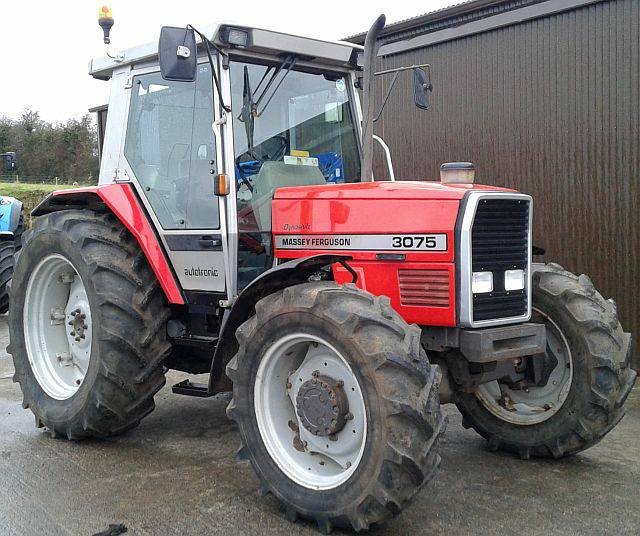

Massey Ferguson MF 3075 (A)

Built: 1993–1995 · Series: 3000er-Baureihe

More machines from model year 1993

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 3000er series from Massey Ferguson includes the MF 3075 (A). Production: 1993–1995. The engine delivers 95 hp (69.9 kW), has 4 cylinders, with a displacement of 3,990 cm³. Torque is 354 Nm. Rated speed is 2,200 rpm. The machine is 4,562 mm long, 2,049 mm wide and 2,749 mm high. The unladen weight is 4,415 kg. The wheelbase measures 2,553 mm. Ground clearance is 430 mm. Top speed is 30 km/h. Transmission: 32V/32R. The engine is water-cooled. Tyres: front 10.00-16 ASF (A: 13.6 R 28 AS), rear 18.4 R 38 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 127 mm. Maximum torque is reached at 1,456 rpm. Construction: unit construction (no separate frame). The 3000er-Baureihe series covers 11 models. Rated output within it ranges from 68 to 107 hp; the MF 3075 (A) sits in the upper part of that range with 95 hp. Its immediate neighbours are the MF 3070 (A) below it with 90 hp and the MF 3080 (A) above it with 97 hp. Unladen weight within it ranges from 3,485 to 5,170 kg; here the MF 3075 (A) sits in the middle of that range with 4,415 kg. 1668 Massey Ferguson models across 56 series are on record.

MF 3000: the new mid-range of the late 1980s, from 71 hp, four- and six-cylinder diesels with cab suspension and hydraulic PTO control

From 1986, the 3000 series replaced the older numbering schemes, bringing more modern cabs and reworked hydraulics to Massey Ferguson's mid-to-upper power segment.

Read on 4 more paragraphs

The register lists 11 live models, from the MF 3050 (A) to the MF 3095 (A), built between 1986 and 1995. Output ranges from 50 to 78.8 kW, or from 71 hp upward, weight from 3,485 to 5,170 kg, displacement from 3,860 to 5,987 cm3, across four- and six-cylinder engines.

The 3000 series ran alongside the stronger 3600 series, and together the two covered Massey Ferguson's entire mid-to-upper power range in the late 1980s and early 1990s.

Technically it marks the transition to cab suspension and hydraulic PTO control principles still used in the MF line-up today.

When buying a used 3000 series, clutch and powershift-stage condition, the tightness of the cab suspension and the hydraulic PTO control, and rust on cab and mudguards after decades of field use all matter. Massey Ferguson is now part of the AGCO group, which secures parts supply for older series such as the 3000 too through a global dealer network. This early form of cab suspension typically relied on rubber- or hydraulically-mounted attachment points to damp vibration on rough ground, a comfort feature not yet standard on the smaller 200 and 300 series of the same period. PTO and lift in this power class follow the internationally standardised Category II of the ISO 730 three-point linkage, at 540 or 1,000 rpm.

Sources: SpecCodex register, model data: Massey Ferguson 3000er-Baureihe

Technical data

Engine

Fueldieselcorrect
Power95 hp (69.9 kW)correct
Rated speed2,200 rpmcorrect
Torque354 Nmcorrect
Speed at max. torque1,456 rpmcorrect
Cylinders4correct
Displacement3,990 cm³correct
Bore100 mmcorrect
Stroke127 mmcorrect
Coolingwater-cooledcorrect

Dimensions and weights

Length4,562 mmcorrect
Width2,049 mmcorrect
Height2,749 mmcorrect
Wheelbase2,553 mmcorrect
Ground clearance430 mmcorrect
Unladen weight4,415 kgcorrect

Drivetrain and chassis

Driverear- or four-wheel drivecorrect
Gearbox32V/32Rcorrect
Front tyres10.00-16 ASF (A: 13.6 R 28 AS)correct
Rear tyres18.4 R 38 AScorrect
Top speed30 km/hcorrect

Origin and approval

Constructionunit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 15.8 kW/t (70 kW / 4.4 t)

Power class: Universal (40–100 hp)

Stronger than 63% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Massey Ferguson MF 3075 (A) have?

The Massey Ferguson MF 3075 (A) delivers 95 hp.

How much does the Massey Ferguson MF 3075 (A) weigh?

The unladen weight is 4,415 kg.

What engine does the Massey Ferguson MF 3075 (A) have?

4 cylinders, 3,990 cm³ displacement, Diesel.

How fast does the Massey Ferguson MF 3075 (A) go?

Top speed is 30 km/h.

What are the dimensions of the Massey Ferguson MF 3075 (A)?

4,562 mm × 2,049 mm × 2,749 mm.

When was the Massey Ferguson MF 3075 (A) built?

Production years: 1993–1995.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
