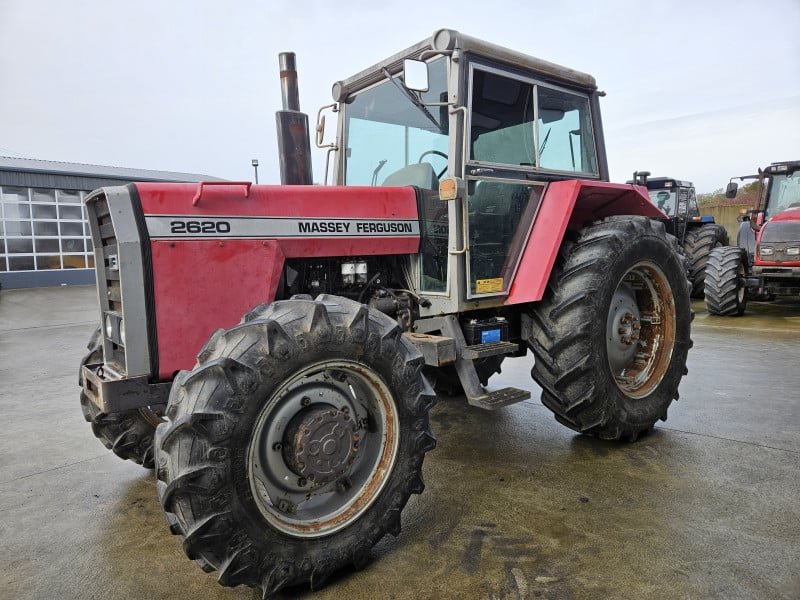

Massey Ferguson MF 2620

Built: 1981–1985 · Series: 2000er-Baureihe, zweite Generation

More machines from model year 1981

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The MF 2620 from Massey Ferguson is part of the 2000er-Baureihe, zweite Generation series. Production: 1981–1985. The engine delivers 96 hp (70.7 kW), has 6 cylinders, with a displacement of 5,797 cm³. Torque is 352 Nm. The machine is 5,080 mm long, 2,120 mm wide and 2,810 mm high. The unladen weight is 4,800 kg. The wheelbase measures 2,726 mm. Ground clearance is 400 mm. Top speed is 30 km/h. The tank holds 228 litres. Transmission: 16V/12R. The engine is water-cooled. Tyres: front 10.00-16 ASF (A: 12.4-28 AS), rear 16.9-38 AS. The fuel is diesel. The bore measures 98.48 mm. The stroke is 127 mm. Maximum torque is reached at 1,250 rpm. Construction: unit construction (no separate frame). The gearbox offers 16 forward gears. There are also 12 reverse gears. The linkage is category II/III. The PTO runs at 540/1000 rpm. The 2000er-Baureihe, zweite Generation series covers 4 models. Rated output within it ranges from 96 to 154 hp; the MF 2620 sits at the bottom of that range with 96 hp. Its immediate neighbours are the MF 2640 Turbo above it with 120 hp. Unladen weight within it ranges from 4,800 to 6,140 kg; here the MF 2620 sits at the bottom of that range with 4,800 kg. 1668 Massey Ferguson models across 56 series are on record.

Massey Ferguson 2620 to 2720 A – the second generation of the 2000 series from Beauvais: six-cylinders of 5,797 cm³, 70.7 to 113.3 kW, up to 6,140 kg unladen weight

The MF 2620, MF 2640 Turbo, MF 2680 and MF 2720 A form the second generation of the Massey Ferguson 2000 series, built by AGCO in Beauvais, France. All four models share the same six-cylinder block of 5,797 cm³, stepped through naturally aspirated, turbocharged and the top 2720 A version; the last two digits of the type code order the power step within the range. Beauvais had already built Massey Ferguson's earlier six-cylinder ranges, so the 2000 series could draw on established engine and transmission production.

Read on 3 more paragraphs

The register lists 4 versions with 70.7 to 113.3 kW from six-cylinders of a consistent 5,797 cm³. Unladen weights range from 4,800 to 6,140 kg, lengths from 4,700 to 5,080 mm, widths from 2,120 to 2,430 mm and heights from 2,810 to 2,860 mm; torque sits between 352 and 493 Nm at rated speeds of 2,000 to 2,400 rpm, all with diesel engines.

The 2000 series occupied the big-tractor class of the 1990s between the more compact MF 200 series and the articulated 4000 series, competing directly with the big Ford and John Deere field tractors of the period. The turbocharged 2640 extended the range upward without enlarging the displacement.

On used examples of the second-generation 2000 series, turbocharger and injection-pump condition, transmission and shuttle shift, hydraulic output for heavy mounted implements and rust on cab and mudguards count; parts run through the AGCO network.

Sources: SpecCodex register, model data: Massey Ferguson 2000er-Baureihe, zweite Generation, Massey Ferguson (AGCO, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	96 hp (70.7 kW)correct
Rated speed	2.400/2.000 rpmcorrect
Torque	352 Nmcorrect
Speed at max. torque	1,250 rpmcorrect
Cylinders	6correct
Displacement	5,797 cm³correct
Bore	98.48 mmcorrect
Stroke	127 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	5,080 mmcorrect
Width	2,120 mmcorrect
Height	2,810 mmcorrect
Wheelbase	2,726 mmcorrect
Ground clearance	400 mmcorrect
Unladen weight	4,800 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	16V/12Rcorrect
Forward gears	16correct
Reverse gears	12correct
Front tyres	10.00-16 ASF (A: 12.4-28 AS)correct
Rear tyres	16.9-38 AScorrect
Top speed	30 km/hcorrect

Working data

Fuel tank capacity	228 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Other data

Linkage category	Cat II/IIIcorrect
PTO speed	540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 14.7 kW/t (71 kW / 4.8 t)

Power class: Universal (40–100 hp)

Stronger than 64% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Massey Ferguson MF 2620 have?

The Massey Ferguson MF 2620 delivers 96 hp.

How much does the Massey Ferguson MF 2620 weigh?

The unladen weight is 4,800 kg.

What engine does the Massey Ferguson MF 2620 have?

6 cylinders, 5,797 cm³ displacement, Diesel.

How fast does the Massey Ferguson MF 2620 go?

Top speed is 30 km/h.

What are the dimensions of the Massey Ferguson MF 2620?

5,080 mm × 2,120 mm × 2,810 mm.

When was the Massey Ferguson MF 2620 built?

Production years: 1981–1985.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
