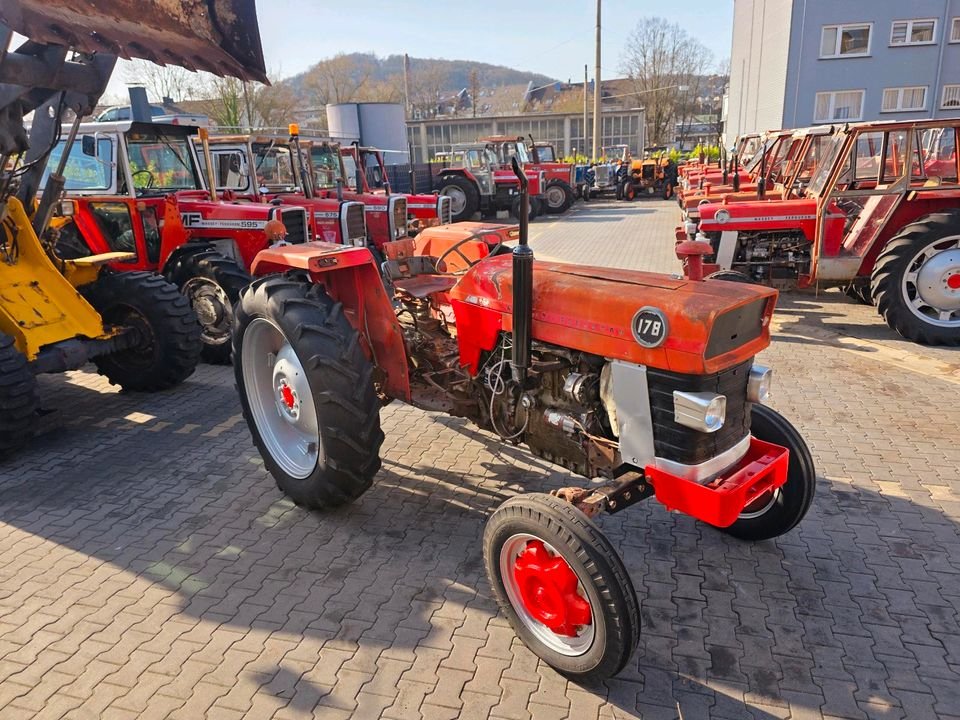

Massey Ferguson MF 178 (A) – specifications
Built: 1968–1971 · Series: 100er-Baureihe
With the MF 178 (A), Massey Ferguson offers a model from the 100er series. Production: 1968–1971. The engine delivers 72 hp (53 kW), has 4 cylinders, with a displacement of 4,067 cm³. Rated speed is 2,000 rpm. The machine is 3,450 mm long, 1,980 mm wide and 2,530 mm high. The unladen weight is 2,780 kg. The wheelbase measures 2,134 mm. Ground clearance is 440 mm. Top speed is 30 km/h. Transmission: 8V/2R or 12V/4R. The engine is water-cooled. Tyres: front 7.50-16 ASF (A: 10-24 AS), rear 15-30 AS (A: 14-34 AS). The fuel is diesel. The bore measures 101 mm. The stroke is 127 mm. Construction: frameless unit construction. Injection pressure is 170 bar. The 100er-Baureihe series covers 34 models. Rated output within it ranges from 24 to 74 hp; the MF 178 (A) sits at the top of that range with 72 hp. Its immediate neighbours are the MF 177 below it with 67 hp and the MF 185 Super (A) above it with 74 hp. Unladen weight within it ranges from 1,230 to 3,180 kg; here the MF 178 (A) sits in the upper part of that range with 2,780 kg. 1668 Massey Ferguson models across 56 series are on record.
Data for the version built 1968–1971 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1968
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MF 100: the worldwide bestseller of the 60s and 70s, 24 to 67 hp, two- to four-cylinder diesels with Ferguson System hydraulics, optional four-wheel drive
The 100 series replaced the 10 series in the mid-1960s and, with the MF 135, became one of the best-selling tractors in company history — built at several plants worldwide, from Coventry to developing countries.
Read on 4 more paragraphs
The register lists 34 live models, from the MF 122 to the MF 165, built between 1964 and 1979. Output ranges from 17.7 to 54.5 kW, or 24 to 67 hp, weight from 1,230 to 3,180 kg, displacement from 1,621 to 4,067 cm3, across two-, three- and four-cylinder engines.
A defining feature was the continued refinement of the Ferguson System's hydraulic lift control, paired with increasingly comfortable cab options and optional four-wheel drive on later models such as the MF 165.
Thanks to its enormous production numbers and good parts availability, the 100 series remains an entry-level classic for tractor restorers and a reliable working tractor on smaller farms today.
A defining check when buying a used 100 series is the Ferguson System hydraulics for draft control, whose valves frequently leak after decades in the field, and, on the rarer four-wheel-drive models such as the MF 165, the condition of the front axle and transfer gearbox. PTO and three-point hitch on this power class follow the standardised ISO 730 Category I at 540 rpm, which still ensures compatibility with a wide range of implements today.
Sources: SpecCodex register, model data: Massey Ferguson 100er-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 72 hp (53 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,067 cm³correct |
| Bore | 101 mmcorrect |
| Stroke | 127 mmcorrect |
| Injection pressure | 170 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,450 mmcorrect |
|---|---|
| Width | 1,980 mmcorrect |
| Height | 2,530 mmcorrect |
| Wheelbase | 2,134 mmcorrect |
| Ground clearance | 440 mmcorrect |
| Unladen weight | 2,780 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8V/2R or 12V/4Rcorrect |
| Front tyres | 7.50-16 ASF (A: 10-24 AS)correct |
| Rear tyres | 15-30 AS (A: 14-34 AS)correct |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 19.1 kW/t (53 kW / 2.8 t)
Power class: Universal (40–100 hp)
Stronger than 50% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
