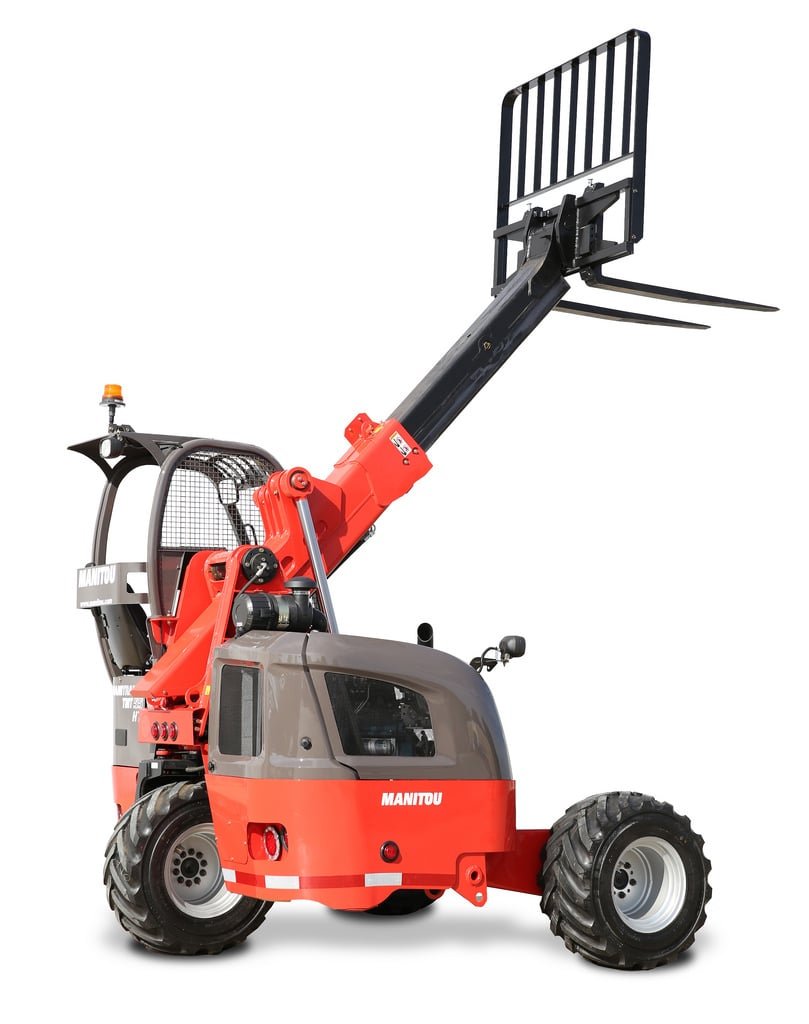

Manitou TMT 55 HT
Series: Manitou Telescopic Forklift
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Manitou MT – how lift height and capacity hide inside the model number
Manitou's MT range is the French manufacturer's classic telehandler line for construction and agriculture, spanning lift heights from 4 to 18 metres and capacities from 2 to 4 tonnes. Both figures are encoded in the type number at once: on the MT 420 H, the "4" reflects a 4.35 m lift height at 2,000 kg capacity; the MT 625 H offers 5.85 m and 2.5 t; and the large MT 1840 reaches 17.55 m at 4 t — so the first digit group roughly codes lift height in metres, the second capacity in hundreds of kilograms.
Read on 3 more paragraphs
Suffix letters such as "H" mark particularly compact, manoeuvrable versions for tight sites, while lines like MT-X or MRT (rotating telehandlers) form separate sub-ranges for extended reach or 360° slewing.
Models recorded in the database span engine outputs of 18 to 159 kW, own weights of 1,154 to 28,350 kg, and displacement of 1,147 to 6,600 cm³ across 3 to 4 cylinders — the bucket therefore covers everything from compact farmyard telehandlers to heavy construction machines, represented by models such as MT 523, MT 620, MT 732 or MT 932.
When buying a used telehandler, the condition of the telescopic boom and its slide pads, plus the lift and tilt hydraulic cylinders, matter most — play in the fully extended boom is a typical wear sign. It's also worth checking the load chart: the stated rated capacity only applies at short reach, and the permissible load drops sharply as the boom extends.
Sources: SpecCodex register, model data: Manitou Telescopic Forklift, - Manitou: MT-Baureihe, Hubhöhen 4-18 m, Tragkraft 2-4 t, - Manitou: MT 420 H, 2.000 kg / 4,35 m, - Manitou: MT 625 H, 2,5 t / 5,85 m, - Colle/Manitou: MT 1840, 4 t / 17,55 m
Technical data
Engine
| Engine model | 404C-22correct |
|---|---|
| Power | 38.8 kWcorrect |
| Rated speed | 3,000 rpmcorrect |
| Torque | 142.4 Nmcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Displacement | 2,212.3 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Height | 2,260 mmcorrect |
|---|---|
| Wheelbase | 1,475.2 mmcorrect |
| Ground clearance | 304.8 mmcorrect |
Drivetrain and chassis
| Gearbox type | hydrostatic transmission, hydraulic reversing shift, full syncrocorrect |
|---|---|
| Tyre size | 31x15.5-15correct |
Working data
| Lift height | 3,050 mmcorrect |
|---|---|
| Pump flow | 36 l/mincorrect |
| Hydraulic oil capacity | 37.9 lcorrect |
| Hydraulic pressure | 248.2 barcorrect |
| Fuel tank capacity | 34.1 lcorrect |
More machines with this engine (404C-22, 21)
Frequently asked questions
How much power does the Manitou TMT 55 HT have?
The Manitou TMT 55 HT delivers 38.8 kW.
What engine does the Manitou TMT 55 HT have?
2,212 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
