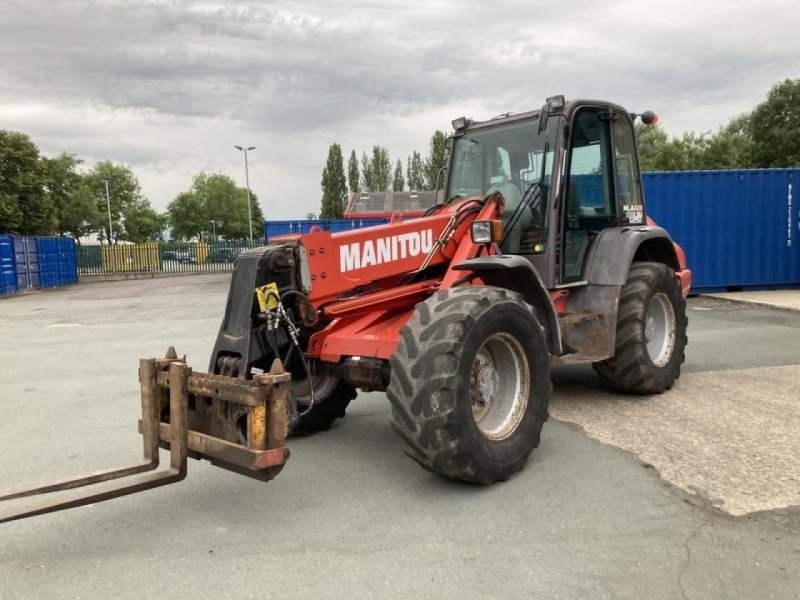

Manitou MLA 628 - 120 LSU Powershift TS

Series: Manitou Telescopic Forklift

Source: technikboerse.at

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Manitou Telescopic Forklift series from Manitou includes the MLA 628 - 120 LSU Powershift TS. The engine delivers 123.1 hp (90.5 kW), with a displacement of 4,401.6 cm³. Torque is 434.1 Nm. The machine is 2,860 mm high. The unladen weight is 6,730 kg. The wheelbase measures 2,502.4 mm. The tank holds 110.2 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. The pump delivers 150.3 l/min. The hydraulic tank holds 130.2 litres. Working pressure is 270 bar. Lift height is 5,110 mm. The engine fitted is the 1104C-44TA. Tyre size: 17,5LR24. The Manitou Telescopic Forklift series covers 111 models. Rated output within it ranges from 40.3 to 216.3 hp; the MLA 628 - 120 LSU Powershift TS sits in the middle of that range with 123.1 hp. Its immediate neighbours are the MTA 10055 below it with 121.7 hp and the MLT 634 - 120 LSU PS above it with 123.8 hp. Unladen weight within it ranges from 1,154.4 to 28,350 kg; here the MLA 628 - 120 LSU Powershift TS sits in the lower part of that range with 6,730 kg. 731 Manitou models across 35 series are on record.

Manitou MT – how lift height and capacity hide inside the model number

Manitou's MT range is the French manufacturer's classic telehandler line for construction and agriculture, spanning lift heights from 4 to 18 metres and capacities from 2 to 4 tonnes. Both figures are encoded in the type number at once: on the MT 420 H, the "4" reflects a 4.35 m lift height at 2,000 kg capacity; the MT 625 H offers 5.85 m and 2.5 t; and the large MT 1840 reaches 17.55 m at 4 t — so the first digit group roughly codes lift height in metres, the second capacity in hundreds of kilograms.

Read on 3 more paragraphs

Suffix letters such as "H" mark particularly compact, manoeuvrable versions for tight sites, while lines like MT-X or MRT (rotating telehandlers) form separate sub-ranges for extended reach or 360° slewing.

Models recorded in the database span engine outputs of 18 to 159 kW, own weights of 1,154 to 28,350 kg, and displacement of 1,147 to 6,600 cm³ across 3 to 4 cylinders — the bucket therefore covers everything from compact farmyard telehandlers to heavy construction machines, represented by models such as MT 523, MT 620, MT 732 or MT 932.

When buying a used telehandler, the condition of the telescopic boom and its slide pads, plus the lift and tilt hydraulic cylinders, matter most — play in the fully extended boom is a typical wear sign. It's also worth checking the load chart: the stated rated capacity only applies at short reach, and the permissible load drops sharply as the boom extends.

Sources: SpecCodex register, model data: Manitou Telescopic Forklift, - Manitou: MT-Baureihe, Hubhöhen 4-18 m, Tragkraft 2-4 t, - Manitou: MT 420 H, 2.000 kg / 4,35 m, - Manitou: MT 625 H, 2,5 t / 5,85 m, - Colle/Manitou: MT 1840, 4 t / 17,55 m

Technical data

Engine

Engine model1104C-44TAcorrect
Power123.1 hp (90.5 kW)correct
Torque434.1 Nmcorrect
Displacement4,401.6 cm³correct

Dimensions and weights

Height2,860 mmcorrect
Wheelbase2,502.4 mmcorrect
Unladen weight6,730 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmission DANAcorrect
Forward gears4correct
Reverse gears3correct
Tyre size17.5LR24correct

Working data

Lift height5,110 mmcorrect
Pump flow150.3 l/mincorrect
Hydraulic oil capacity130.2 lcorrect
Hydraulic pressure270 barcorrect
Fuel tank capacity110.2 lcorrect

More machines with this engine (1104C-44TA, 11)

Where this model stands

Power-to-weight ratio: 13.4 kW/t (90 kW / 6.7 t)

Stronger than 75% of the telehandlers in the register — out of 661 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Manitou MLA 628 - 120 LSU Powershift TS have?

The Manitou MLA 628 - 120 LSU Powershift TS delivers 123 hp.

How much does the Manitou MLA 628 - 120 LSU Powershift TS weigh?

The unladen weight is 6,730 kg.

What engine does the Manitou MLA 628 - 120 LSU Powershift TS have?

4,402 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
